APSYS APFS-8147 47U Floor Standing Server Cabinet, 800 x 1000 mm
Inclusive of VAT · Warranty included
Aptech International
مواصفات المنتج
| Manufacturer | APSYS |
| Model | APFS-8147 |
| Manufacturer Part Number | APFS-8147 |
| Product Type | Server Cabinet |
| Form Factor | Floor Standing |
| Rack Units | 47U |
| Width | 800 mm |
| Depth | 1000 mm |
| Material | SPCC cold-rolled steel |
| Front Door | Mesh door |
| Rear Door | Double perforated door |
| Loading Capacity | 800 kg on the adjustable feet |
| Degree of Protection | IP20 |
| Surface Finish | Degreasing, pickling, phosphating, powder coated |
| Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 Part 1, DIN 41491 Part 7, ETSI |
| Compliance | CE, RoHS |
| Colour Options | RAL 9004, RAL 9005, RAL 7035 |
About This Product
Overview

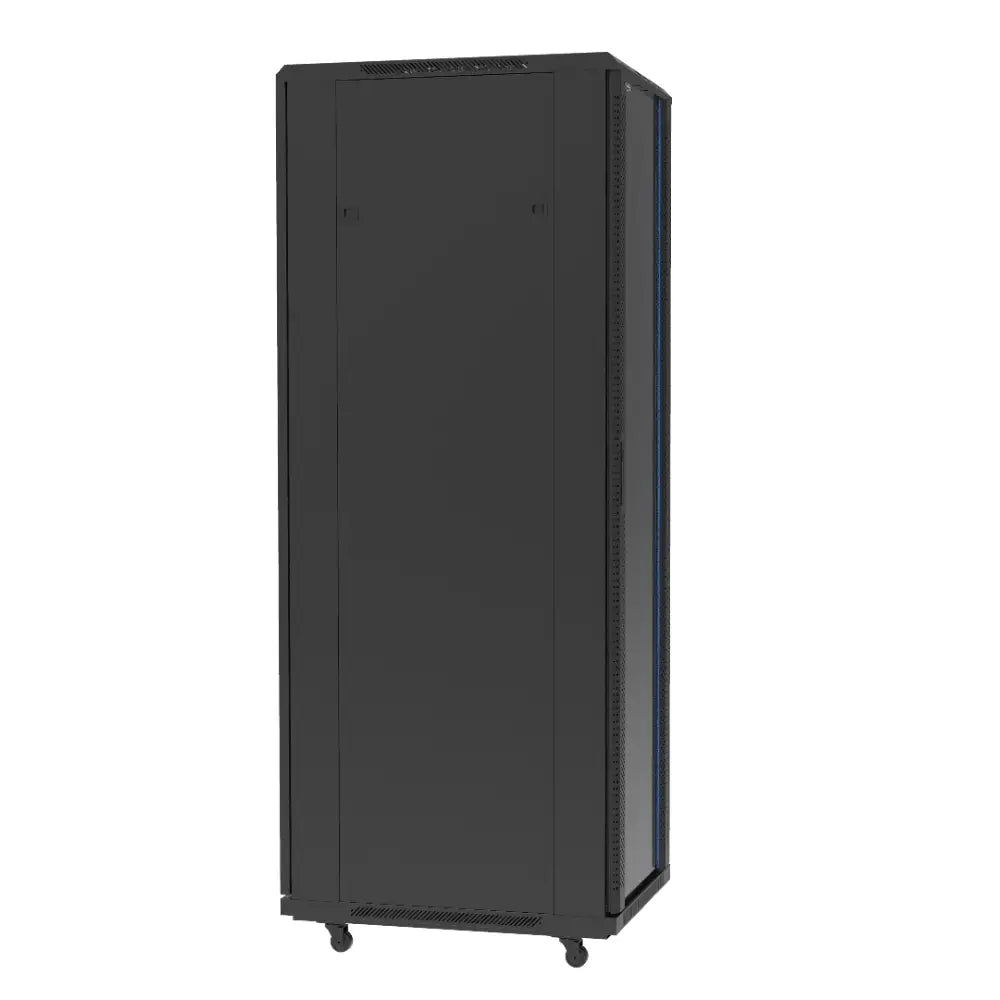

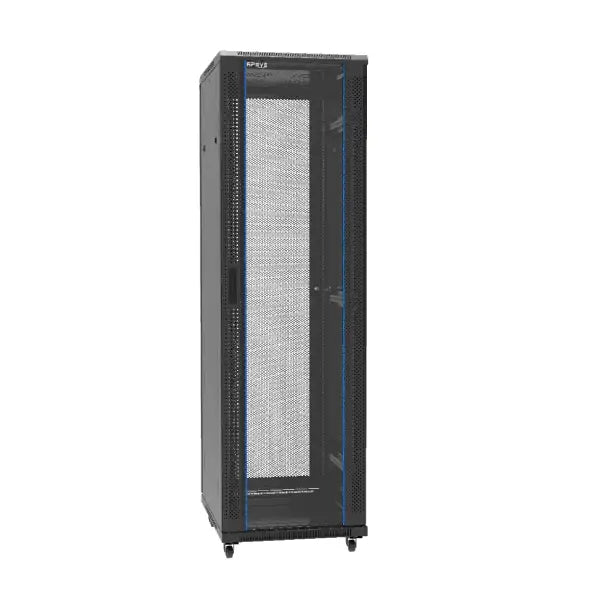

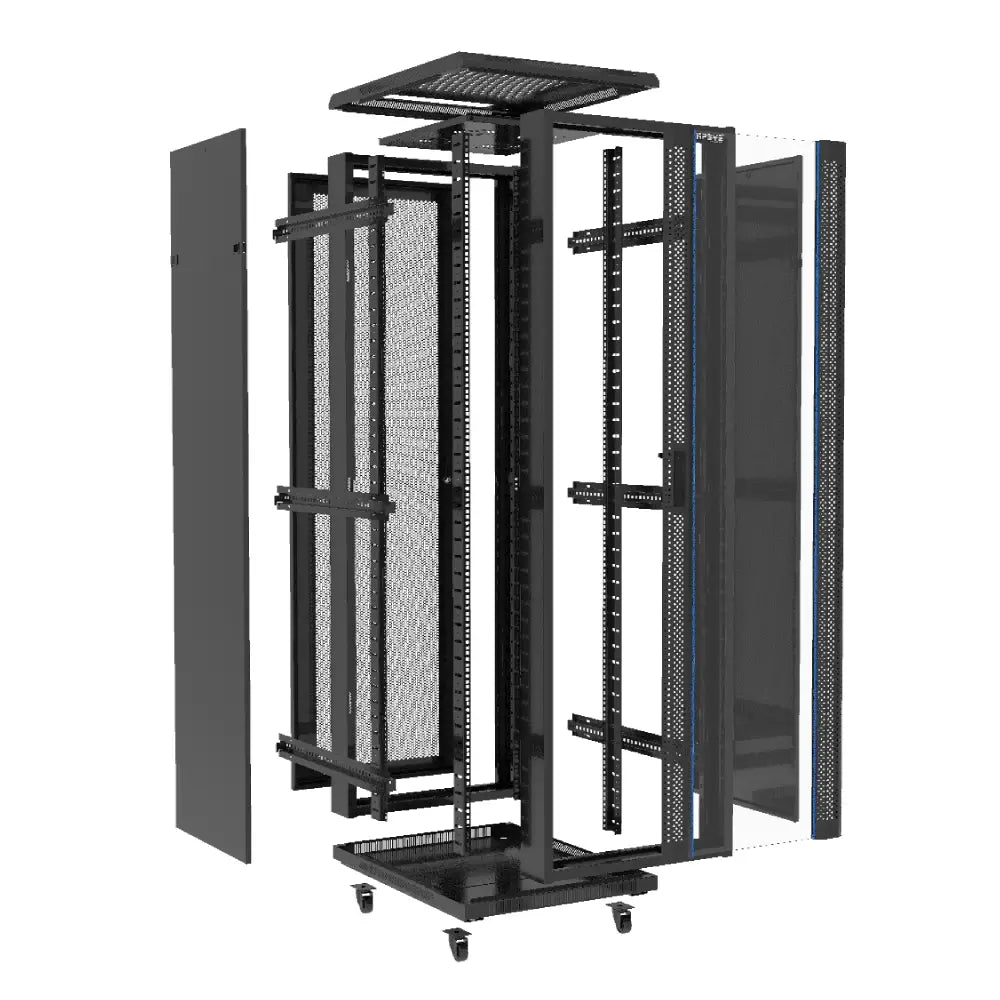

The APSYS APFS-8147 is a full-height floor standing server cabinet built for organised IT and networking deployments. It is designed for buyers who need a standards-based enclosure for rack-mounted hardware such as switches, patch panels, routers, and related accessories. With 47U of usable rack space, it provides the vertical capacity needed for larger installations where equipment growth and cable management both matter. The 800 mm width and 1000 mm depth give the cabinet a substantial internal footprint, making it suitable for structured layouts in server rooms and communications areas.
Performance & Scalability
In practical terms, this cabinet is about supporting a clean, scalable rack environment. The SPCC cold-rolled steel construction provides a solid enclosure for professional installations, while the 800 kg loading capacity on the adjustable feet helps accommodate heavier equipment builds. The front mesh door and double perforated rear door are important for airflow planning, especially in cabinets that hold active network hardware. Because the enclosure follows recognised rack standards, it can be used as part of a broader infrastructure strategy where consistency across cabinets and equipment mounting is important.
Storage Flexibility
Although this is not a storage device, the APFS-8147 offers the kind of physical flexibility that makes rack infrastructure easier to manage. The 47U format allows a mix of active equipment, patching hardware, and cable organisation components to be housed in one cabinet. Its 800 x 1000 mm size is especially useful when deeper equipment or more generous rear cable space is needed. That extra room can help simplify installation planning in environments where multiple device types must be arranged neatly and accessed efficiently.
Why Choose This Product?
This cabinet is a strong fit for installations that need a dependable, standards-aligned enclosure with practical airflow and a high-capacity frame. The combination of a mesh front door, perforated rear door, and indoor IP20 protection makes it well suited to controlled technical spaces. For IT teams, integrators, and facilities managers, the APFS-8147 offers a straightforward way to build a tidy, expandable rack environment without compromising on structural capacity or compatibility with common rack formats.
About this rack cabinet
APSYS APFS-8147 floor-standing rack cabinet houses servers, storage and network equipment in a structured 47U installation. Tested and stocked in Doha, delivered across Qatar within a day.
The APSYS APFS-8147 is a floor-standing server rack cabinet with 47U of mounting height, an 800 mm width and a 1000 mm depth. Supplier part AP-APFS-8147 identifies this full-height cabinet for organising rackmount servers, storage, switches and patching in one location. Its wider format gives installers room to plan side cable routing, while its depth makes it suitable for layouts involving deeper equipment and rear cabling. IT teams and integrators use this format for new server rooms, communications spaces and infrastructure expansions. It also suits projects that bring refurbished equipment together in a structured rack. For buyers in Doha and elsewhere in Qatar, the main planning points are equipment dimensions, rack space and access around the cabinet.
- Rack height
- 47U
- Width
- 800 mm
- Depth
- 1000 mm
- Format
- Floor standing
Configuration
This is an empty cabinet format for arranging multiple rackmount devices, rather than a server with processors or memory fitted. The 47U height describes vertical equipment space; the width and depth are cabinet dimensions for floor planning.
| Cabinet format | Floor-standing server rack |
| Rack height | 47U |
| Width | 800 mm |
| Depth | 1000 mm |
| Intended equipment | Rackmount servers, storage, switches and patching |
What this configuration suits
The 47U capacity suits a consolidated installation where servers, storage and network hardware need separate positions within the same cabinet. Plan the vertical order before mounting equipment so frequently accessed devices and patching remain practical to reach. Reserve space for cable runs and any supporting infrastructure included in the rack design.
The 800 mm width is useful when side cable routing is part of the layout. A 1000 mm cabinet depth gives more room to plan for deeper rackmount devices and rear connections than a shallower footprint. Equipment depth still needs to be assessed alongside its rails, plugs and cable bend radius.
This is a floor-standing enclosure, so it suits a dedicated equipment area rather than a wall-mounted installation. Allow working clearance around the planned position, particularly where installation or maintenance requires access to the rear. The available 47U must cover every device and the gaps required by the chosen layout.
Part numbers and identification
Use the model code to identify the cabinet format and the supplier part number when specifying this particular item. Both codes refer to the 47U, 800 mm wide and 1000 mm deep APSYS cabinet.
| Model | APFS-8147 |
| Supplier part number | AP-APFS-8147 |
Compatibility
This cabinet is intended for rackmount servers, storage systems, switches and patch panels used in structured IT installations. Allocate rack units for each device before deciding how many systems will fit within the 47U height. Compare each device's depth, rail requirements and rear cable clearance with the space available in the planned installation. The cabinet's external width and depth are useful for room layout, but they do not by themselves establish the usable distance between mounting positions. For mixed equipment, plan cable routes and access around the devices as a group rather than sizing the cabinet against a single server.
داخل العبوة
- The server as described in the specification
- All installed components listed in the specification
- Power cable(s) for each fitted power supply
- Caddies for each fitted drive
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
غير مشمول
- Rail kit unless listed in the specification
- Front bezel unless listed
- Operating system or software licences
- Drives, memory or cards not listed in the specification
إذا كنت بحاجة إلى سكك تثبيت أو واجهة أمامية أو أقراص إضافية، اسأل عبر واتساب قبل الطلب وسنقدم لك عرض سعر مع الوحدة.
Frequently Asked Questions
What type of equipment is the APSYS APFS-8147 cabinet used for?
The APFS-8147 is intended for rack-mounted IT and networking equipment such as switches, patch panels, routers, and related accessories. It provides 47U of floor-standing rack space, making it suitable for larger structured cabling and communications installations where multiple devices need to be housed in one enclosure.
Is this a standard rack cabinet size?
Yes, this cabinet is built to recognised rack standards including ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 Part 1, DIN 41491 Part 7, and ETSI. That makes it appropriate for installations that use standard rack-mount equipment and need a full-height enclosure with consistent mounting dimensions.
Does the APFS-8147 support airflow for active equipment?
The cabinet includes a front mesh door and a double perforated rear door, both of which are designed to support ventilation through the enclosure. That makes it a practical choice for active networking hardware and other rack-mounted devices where airflow planning is part of the installation design.
How much equipment weight can this cabinet support?
The APFS-8147 has a loading capacity of 800 kg on the adjustable feet. That capacity is useful for dense rack builds that include multiple devices, cable management hardware, and other mounted components. It gives the cabinet the structural support needed for substantial indoor IT deployments.
What are the cabinet dimensions?
This model is an 800 x 1000 mm floor standing cabinet with 47U of rack space. The wider and deeper footprint is helpful when equipment depth, rear cable access, or internal layout flexibility are important considerations in the installation.
Is the APFS-8147 suitable for server rooms and network closets?
Yes, it is designed for controlled indoor technical spaces such as server rooms, network closets, and communications areas. Its IP20 protection rating, steel construction, and standards-based rack format make it a practical enclosure for organised infrastructure deployments in those environments.
