APSYS APFS-6818 18U Floor Standing Server Cabinet, 600 x 800 mm
Inclusive of VAT · Warranty included
Aptech International
مواصفات المنتج
| Manufacturer | APSYS |
| Manufacturer Part Number | APFS-6818 |
| Model | APFS-6818 |
| Product Type | Server Cabinet |
| Form Factor | Floor Standing |
| Rack Capacity | 18U |
| Width | 600 mm |
| Depth | 800 mm |
| Material | SPCC Cold-Rolled Steel |
| Front Door | Mesh Door |
| Rear Door | Double Perforated Door |
| Load Capacity | 800 kg |
| Protection Rating | IP20 |
| Surface Finish | Degreasing, Pickling, Phosphating, Powder Coated |
| Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 Part 1, DIN 41491 Part 7, ETSI |
| Compliance | CE, RoHS |
About This Product
Overview

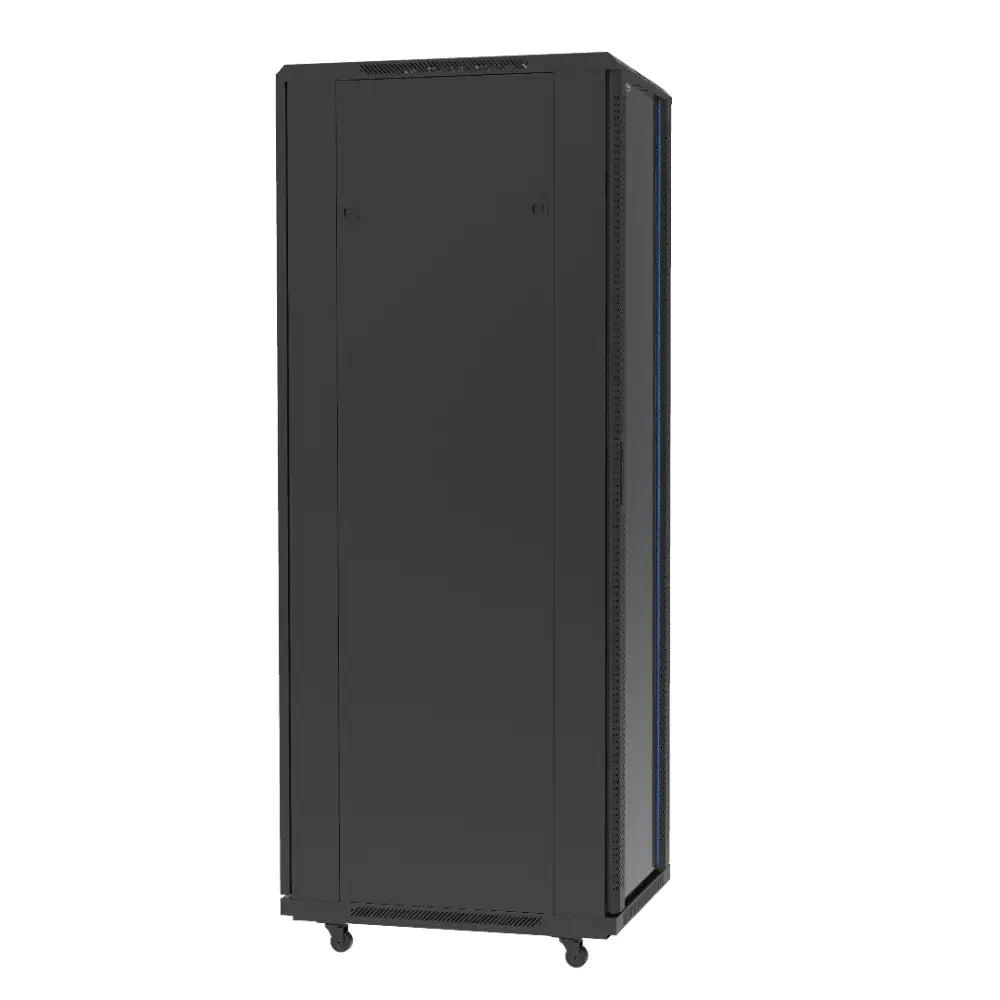

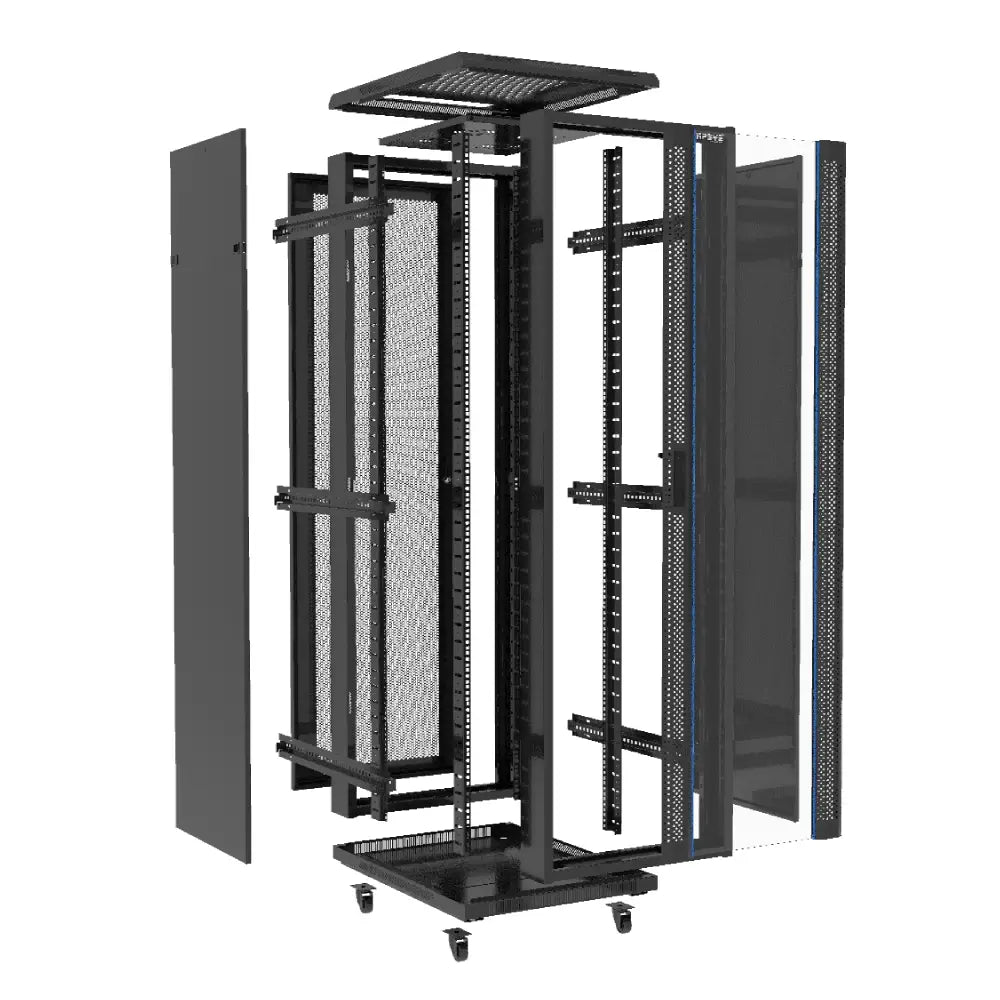

The APSYS APFS-6818 is an 18U floor standing server cabinet built for organised deployment of rack-mount networking and IT hardware. It is a practical choice for businesses, installers, and facilities teams that need a compact enclosure for switches, patch panels, routers, and other standard rack equipment. With a 600 x 800 mm cabinet size, it fits neatly into dedicated communications spaces while still providing enough internal capacity for structured cabling and equipment grouping.
Performance & Scalability
For installations that need a stable and standardised mounting platform, this cabinet offers a solid steel construction and an 800 kg load capacity on the adjustable feet. That makes it suitable for heavier rack assemblies and mixed equipment layouts where weight distribution matters. The 18U height is especially useful for edge deployments, branch offices, and smaller server rooms where space is limited but professional rack organisation is still required. Because it follows widely used rack standards, it can support a broad range of compatible hardware without requiring a custom enclosure.
Ventilation & Access

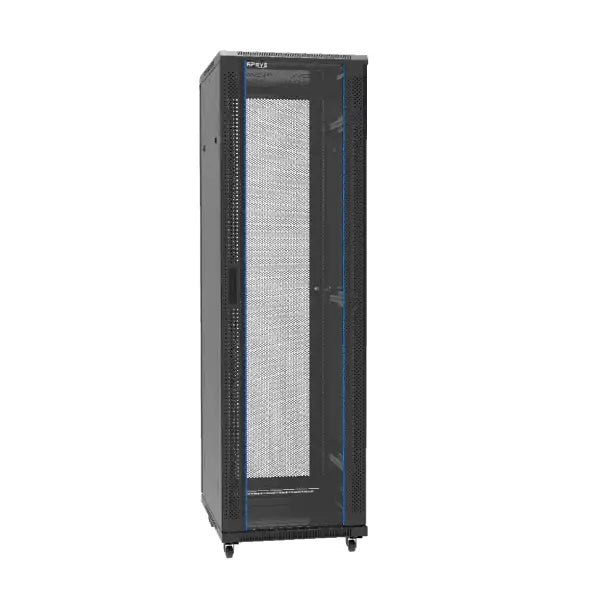

The front mesh door and double perforated rear door are important features for installations that rely on passive airflow through the cabinet. This design helps create a more open path for air movement around active networking devices and rack-mounted electronics. The cabinet’s indoor IP20 rating and powder-coated steel finish make it well suited to controlled environments such as server rooms, telecom spaces, and network distribution points where equipment needs to be protected within a tidy enclosure.
Why Choose This Product?
The APFS-6818 is a strong fit when you want a compact cabinet that balances rack space, ventilation, and compatibility with standard IT hardware. It is designed around common industry rack dimensions and standards, which simplifies planning for installers and integrators. The steel construction, practical 18U capacity, and ventilated door design make it a dependable enclosure for structured cabling and network equipment deployments where organisation and accessibility are priorities.
About this server cabinet
APSYS APFS-6818 is an 18U floor standing cabinet for mounting standard network and IT rack equipment. Tested and stocked in Doha, delivered across Qatar within a day.
The APSYS APFS-6818 is an 18U floor standing server cabinet with a 600 x 800 mm footprint. It belongs to the standard 19-inch rack platform used for patch panels, switches, routers and other rack-mount equipment. Its front mesh door and double perforated rear door allow airflow through the enclosure. The SPCC cold-rolled steel construction and powder-coated finish suit indoor communications rooms and smaller server deployments.
For a refurbished network installation in Doha, Qatar, this cabinet gives an installer a defined rack height and footprint for planning equipment placement. The 18U capacity suits a compact equipment group rather than a full-height rack. Its 800 kg load capacity applies on adjustable feet, so the weight of installed devices and accessories should be considered together. AP-APFS-6818 identifies this cabinet when matching it to an equipment schedule.
- Rack capacity
- 18U
- Footprint
- 600 x 800 mm
- Load capacity
- 800 kg
- Front door
- Mesh
- Protection
- IP20
Part numbers and identification
Use APFS-6818 to identify the cabinet model and manufacturer part. AP-APFS-6818 is the SKU for this configuration; keeping both codes on a rack schedule distinguishes the cabinet from other sizes.
| SKU | AP-APFS-6818 |
| Manufacturer part number | APFS-6818 |
| Model | APFS-6818 |
Specification
The 18U capacity describes available vertical rack space, while 600 mm width and 800 mm depth describe the cabinet footprint. Allow room around that footprint for access to the front and rear doors, as well as for cable routing. Plan the equipment layout against both the rack height and the space needed for connections.
| Form factor | Floor standing |
| Rack capacity | 18U |
| Width | 600 mm |
| Depth | 800 mm |
| Material | SPCC cold-rolled steel |
| Front door | Mesh door |
| Rear door | Double perforated door |
| Load capacity | 800 kg on adjustable feet |
| Protection rating | IP20 |
The mesh front and perforated rear provide an airflow path for installed electronics. IP20 is an indoor protection rating, so site planning should account for the surrounding room environment rather than treating the cabinet as a weatherproof enclosure. Its steel surfaces receive degreasing, pickling and phosphating before powder coating.
| Surface finish | Degreasing, pickling, phosphating, powder coated |
| Rack standards | ANSI/EIA RS-310-D; IEC 297-2; DIN 41491 Part 1 and Part 7; ETSI |
| Compliance | CE; RoHS |
Installation
Place the cabinet on a level indoor floor and set its adjustable feet before loading equipment. Distribute heavier devices low in the rack, then check that the combined equipment and accessory weight remains within the 800 kg capacity on those feet. Leave clearance for both doors to open and for cables to enter and reach their connections without blocking the front-to-rear airflow path. Position rack-mount equipment within the available 18U and follow each device's mounting and ventilation requirements.
داخل العبوة
- The server as described in the specification
- All installed components listed in the specification
- Power cable(s) for each fitted power supply
- Caddies for each fitted drive
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
غير مشمول
- Rail kit unless listed in the specification
- Front bezel unless listed
- Operating system or software licences
- Drives, memory or cards not listed in the specification
إذا كنت بحاجة إلى سكك تثبيت أو واجهة أمامية أو أقراص إضافية، اسأل عبر واتساب قبل الطلب وسنقدم لك عرض سعر مع الوحدة.
Frequently Asked Questions
What type of equipment is the APSYS APFS-6818 cabinet used for?
This cabinet is intended for standard rack-mount IT and networking equipment. It is commonly used for patch panels, switches, routers, firewalls, and other hardware that fits a 19-inch rack format. It is a good option for structured cabling areas, communications rooms, and smaller server deployments where equipment needs to be mounted in an organised enclosure.
How much rack space does this cabinet provide?
The APFS-6818 provides 18U of rack capacity. That makes it suitable for compact installations that still need enough room for multiple devices, cable management, and accessory mounting. It is often chosen for edge networks, branch offices, and other environments where a full-height cabinet is not necessary.
Does this cabinet support standard 19-inch rack equipment?
Yes, it is designed around common rack standards including ANSI/EIA RS-310-D, IEC 297-2, DIN 41491, and ETSI. Those standards are widely associated with standard rack-mount IT hardware, so the cabinet is intended for equipment that follows conventional 19-inch mounting practices.
What are the door types on this server cabinet?
The cabinet has a front mesh door and a double perforated rear door. This combination is useful in installations where airflow through the enclosure is important, especially when housing active networking devices or other rack-mounted electronics that benefit from ventilation.
What is the cabinet made from?
The APFS-6818 is made from SPCC cold-rolled steel. That material is commonly used in equipment enclosures because it provides a rigid structure for rack installations. The cabinet also has a surface treatment and powder-coated finish for a professional appearance in indoor IT environments.
Is this cabinet suitable for heavier rack installations?
The cabinet has an 800 kg load capacity on the adjustable feet, which makes it suitable for substantial rack-mounted equipment when installed correctly. That capacity is useful for mixed installations that include multiple devices, cabling, and accessories within a compact floor-standing enclosure.
