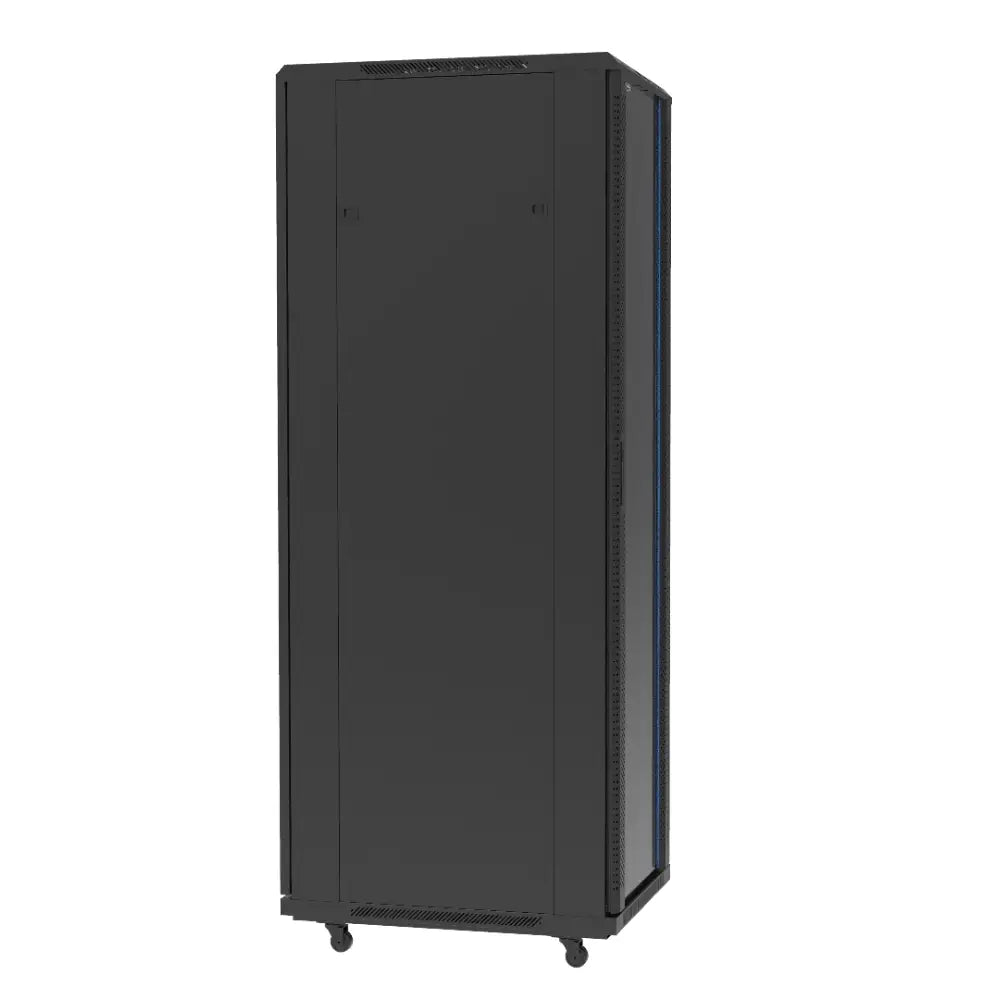

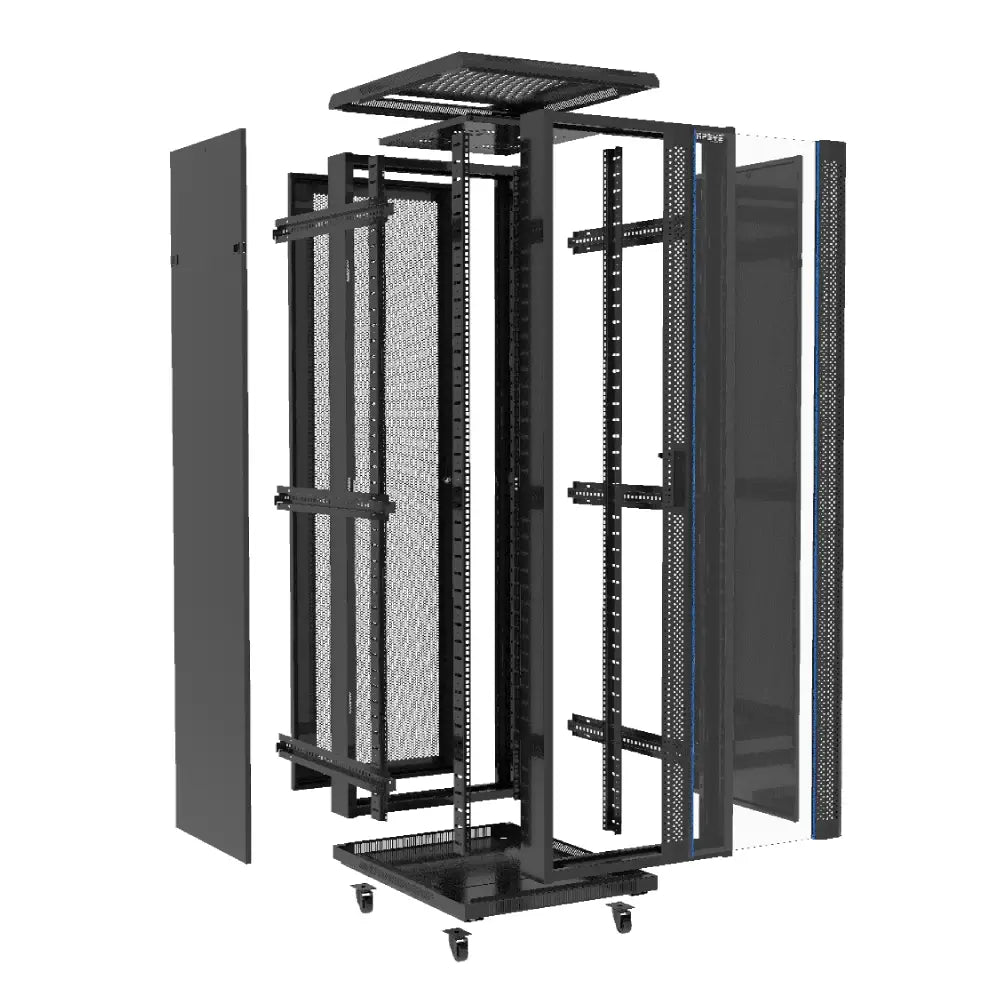

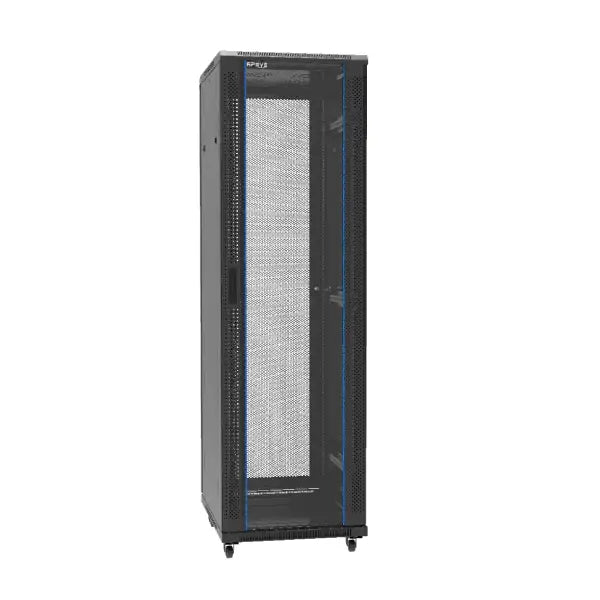

APSYS APFS-8842 42U Floor Standing Server Cabinet, 800 x 800 mm
Inclusive of VAT · Warranty included
Aptech International
مواصفات المنتج
| Manufacturer | APSYS |
| Manufacturer Part Number | APFS-8842 |
| Model | APFS-8842 |
| Product Type | Floor Standing Cabinet |
| Rack Units | 42U |
| Width | 800 mm |
| Depth | 800 mm |
| Material | SPCC Cold-Rolled Steel |
| Front Door | Mesh Door |
| Rear Door | Double Perforated Door |
| Loading Capacity | 800 kg |
| Degree of Protection | IP20 |
| Surface Finish | Degreasing, Pickling, Phosphating, Powder Coated |
| Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 Part 1, DIN 41491 Part 7, ETSI |
| Compliance | CE, RoHS |
| Colour Options | RAL 9004, RAL 9005, RAL 7035 |
About This Product
Overview
The APSYS APFS-8842 is a 42U floor standing server cabinet built for organised IT and network deployments that need a dependable enclosure for rack-mounted hardware. It is designed for use in server rooms, communications areas and equipment spaces where structured cabling, access to devices and physical protection all matter. With an 800 x 800 mm footprint, it provides a practical cabinet size for mixed installations that may include switches, patch panels, routers and other standard rack equipment.
Performance & Scalability
For growing infrastructure, the main advantage of a 42U cabinet is vertical capacity. It allows installers to build out a full rack stack without immediately moving to multiple enclosures, which can simplify layout planning and cable routing. The SPCC cold-rolled steel construction gives the cabinet the rigidity expected in professional environments, while the 800 kg loading capacity on the adjustable feet supports substantial equipment density. The front mesh door and perforated rear door also help maintain airflow through the cabinet, an important consideration when active devices are installed in close proximity.
Connectivity & Airflow
This cabinet is intended to house the infrastructure that keeps a network organised, from patch panels and cable management accessories to active devices such as switches and routers. The 800 mm depth gives additional room for equipment placement and cable handling compared with shallower enclosures, which can be useful when rear connections or power distribution units need extra working space. The mesh front and perforated rear doors support ventilation, making the cabinet suitable for installations where passive airflow is part of the cooling strategy.
Why Choose This Product?
The APFS-8842 is a sensible choice when you need a standards-based cabinet that fits into conventional rack infrastructure and offers enough internal volume for a serious deployment. Its powder-coated finish, IP20 indoor rating and compliance with common rack standards make it a practical option for professional IT environments. For buyers building out server rooms, network closets or central equipment points, it offers the kind of enclosure that supports tidy installation, easier maintenance and a more organised hardware layout.
About this server cabinet
The APSYS APFS-8842 is a 42U floor standing cabinet for organised 19-inch server and network equipment. Tested and stocked in Doha, delivered across Qatar within a day.
The APSYS APFS-8842 is a full-height, 42U cabinet built around the 19-inch rack format. Its 800 x 800 mm footprint suits comms rooms, server areas and network closets where switches, routers, patch panels and rack-mounted servers need a shared enclosure. The front mesh door and double perforated rear door provide ventilation paths through the cabinet. SPCC cold-rolled steel construction and a powder-coated finish make it suitable for structured indoor installations.
IT teams and installers planning refurbished server deployments in Doha, Qatar, can use this cabinet to bring active equipment and cabling into one rack layout. The 800 kg loading capacity applies when the cabinet stands on its adjustable feet, so equipment weight and placement matter when planning a dense installation. The AP-APFS-8842 SKU identifies this 42U, 800 x 800 mm configuration.
- Rack height
- 42U
- Rack format
- 19 inch
- Footprint
- 800 x 800 mm
- Load capacity
- 800 kg
- Protection
- IP20
Part numbers and identification
APFS-8842 identifies the cabinet model and is also its manufacturer part number. Use the SKU to distinguish this specific product record when matching it to a purchasing request.
| SKU | AP-APFS-8842 |
| Manufacturer model | APFS-8842 |
| Manufacturer part number | APFS-8842 |
Specification
The 42U rack height describes mounting space, while 800 x 800 mm describes the cabinet's external footprint. The stated 800 kg loading capacity is for use on the adjustable feet; it should be considered alongside the weight and position of equipment within the rack.
| Cabinet type | Floor standing |
| Rack format | 19 inch |
| Rack units | 42U |
| Width | 800 mm |
| Depth | 800 mm |
| Material | SPCC cold-rolled steel |
| Front door | Mesh door |
| Rear door | Double perforated door |
| Loading capacity | 800 kg on adjustable feet |
| Degree of protection | IP20 |
| Surface finish | Degreasing, pickling, phosphating, powder coated |
| Rack standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 Part 1, DIN 41491 Part 7, ETSI |
| Compliance | CE, RoHS |
| Colour options | RAL 9004, RAL 9005, RAL 7035 |
Installation
Plan the cabinet position around its 800 x 800 mm footprint, leaving working space for the front and rear doors and for cable routing. Place heavier devices lower in the rack and distribute their weight across the mounting positions rather than concentrating it at the top. Use the adjustable feet to establish a stable position before loading equipment, and keep the total load within the stated 800 kg capacity. Allow a clear airflow path through the mesh front door and perforated rear doors when arranging active equipment and cable bundles.
داخل العبوة
- The server as described in the specification
- All installed components listed in the specification
- Power cable(s) for each fitted power supply
- Caddies for each fitted drive
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
غير مشمول
- Rail kit unless listed in the specification
- Front bezel unless listed
- Operating system or software licences
- Drives, memory or cards not listed in the specification
إذا كنت بحاجة إلى سكك تثبيت أو واجهة أمامية أو أقراص إضافية، اسأل عبر واتساب قبل الطلب وسنقدم لك عرض سعر مع الوحدة.
Frequently Asked Questions
What type of equipment is the APSYS APFS-8842 cabinet designed to hold?
The APFS-8842 is intended for standard rack-mounted IT and networking equipment. It is commonly used for switches, routers, patch panels, cable management accessories and other hardware that fits into a 42U floor standing cabinet. Its 800 mm width and depth make it suitable for structured installations where equipment layout and cabling space both matter.
Is this a 19-inch rack cabinet?
The cabinet follows common rack standards including ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 and ETSI, which are the standards typically associated with rack-mounted IT infrastructure. That makes it appropriate for conventional rack equipment used in server rooms and network closets. Buyers should match their equipment to the rack standard used in their installation.
How much rack space does the APFS-8842 provide?
This model provides 42U of rack space. That gives installers a full-height enclosure for building out a larger network or server layout in a single cabinet. It is useful when you want room for active devices, patching, cable management and future expansion without immediately moving to multiple enclosures.
Does the cabinet support airflow for active equipment?
Yes. The APFS-8842 includes a front mesh door and a double perforated rear door, both of which are designed to support ventilation through the enclosure. That makes it a practical choice for installations containing active devices that benefit from airflow, especially where the cabinet is part of a broader cooling strategy in an indoor technical space.
What is the load capacity of this floor standing cabinet?
The cabinet is rated for 800 kg on the adjustable feet. That makes it suitable for dense rack builds where multiple devices, patching components and accessories are installed together. As with any rack enclosure, the final installed load should be planned with the full equipment stack and site conditions in mind.
Where is this cabinet typically deployed?
The APFS-8842 is typically used in server rooms, communications closets, network distribution areas and other indoor IT spaces. Its IP20 rating and standards-based rack design make it appropriate for controlled environments where equipment organisation, accessibility and ventilation are priorities.
