جهاز التوجيه الصوتي Cisco ISR4321-V/K9 مع وحدة PVDM3-32 DSP
Inclusive of VAT · Warranty included
ServerDove
مواصفات المنتج
| العلامة التجارية | ServerDove |
| وحدة حفظ المخزون | RTR-CISCO-ISR4321V-PVDM3-32 |
| النموذج | Cisco ISR4321-V/K9 |
| نوع المنتج | موجه صوتي |
| منافذ إيثرنت | 2 × منافذ جيجابت إيثرنت |
| دعم الصوت | منصة تدعم الصوت (دعم CME) |
Refurbished · Tested
Cisco ISR4321-V/K9 voice router with a PVDM4-32 DSP module fitted, for branch routing, SIP trunking and Cisco CME telephony.

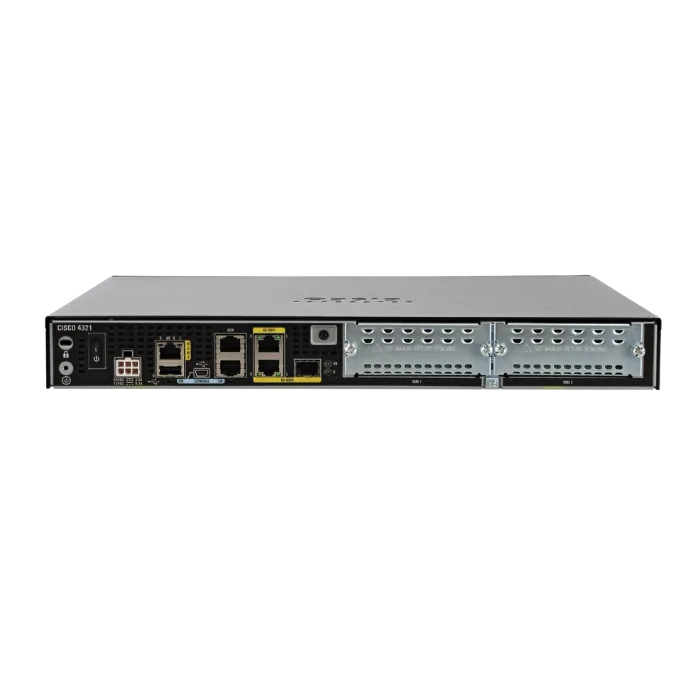

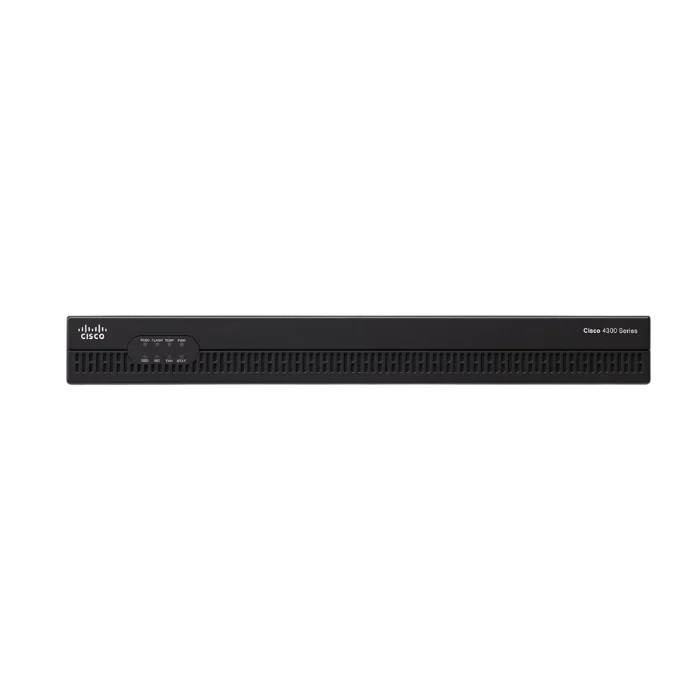

This is a refurbished Cisco ISR4321-V/K9, the voice bundle of the entry model in Cisco's 4000 Series Integrated Services Router family, supplied with a PVDM4-32 DSP module fitted on the motherboard. Our SKU for this configuration is RTR-CISCO-ISR4321V-PVDM4-32. The router has two Gigabit Ethernet ports, runs Cisco IOS XE and supports Cisco Unified Communications Manager Express (CME), so one compact unit can route branch traffic and handle local call processing. The PVDM4-32 adds dedicated DSP resources for VoIP, SIP and analogue voice gateway work, such as connecting an office phone system to a SIP provider or to analogue lines through voice interface modules. Buyers in Qatar use it as the edge router and call controller for a branch or small office, or as a like-for-like replacement for a failed unit in an existing Cisco voice design. We hold this exact configuration in Doha.
RTR-CISCO-ISR4321V-PVDM4-32Specification
The two Gigabit Ethernet ports are routed interfaces for WAN and LAN connections. Further interfaces, such as analogue voice ports, serial links or switch ports, are added through the two Network Interface Module (NIM) slots, while the DSP module sits in its own onboard slot and leaves both NIM slots free.
Installation
Plan for one rack unit in a standard 19 inch rack and keep the side vents clear, as the chassis draws air from side to side. Make the first configuration through the console port, then set up the WAN interface, routing and management access before adding voice services. Confirm that the PVDM4-32 is detected with the show inventory command and that its DSP resources are available to the voice configuration. Analogue phones, fax machines or telephone lines need a voice interface module in one of the NIM slots, because the two Ethernet ports carry data only. For SIP trunking or IP handsets, apply quality of service on the WAN link so voice traffic is prioritised over general data.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما هو استخدام Cisco ISR4321-V/K9؟
يستخدم للتوجيه الفرعي وعمليات النشر التي تدعم الصوت، بما في ذلك الاتصال الهاتفي عبر بروتوكول الإنترنت (IP telephony) وتطبيقات بوابة VoIP.
هل يدعم هذا الموجه Cisco CME؟
نعم، ISR4321-V/K9 هي منصة تدعم الصوت مع دعم CME.
ما هي إمكانيات الصوت المتضمنة؟
تدعم هذه الوحدة حالات استخدام VoIP و SIP وبوابة الصوت التناظرية.
ما هي وحدة DSP المثبتة؟
يتضمن الموجه وحدة PVDM3-32 DSP.
كم عدد منافذ إيثرنت التي يمتلكها؟
يحتوي على منفذين جيجابت إيثرنت.
