وحدة معالجة الإشارة الصوتية Cisco PVDM3-32 Voice DSP Module
Inclusive of VAT · Warranty included
CISCO
مواصفات المنتج
| العلامة التجارية | CISCO |
| رقم المنتج | MOD-CISCO-PVDM3-32 |
| نوع المنتج | وحدة معالجة إشارة رقمية للصوت |
| السلسلة | سلسلة Cisco PVDM3 |
| سعة القناة | 32 قناة |
| نوع الوحدة | وحدة معالج الإشارة الرقمية |
Refurbished · Tested

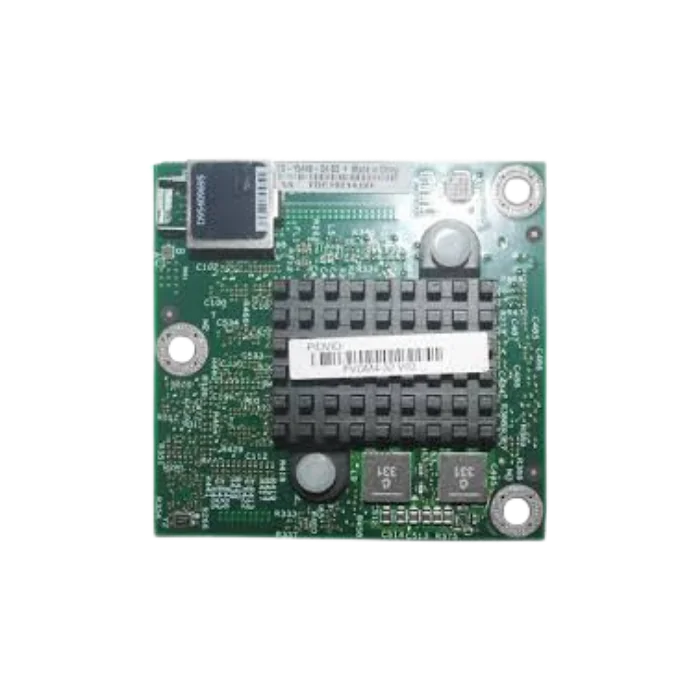

Cisco PVDM4-32 packet voice DSP module, 32 channels, for voice codec processing in Cisco ISR routers running VoIP gateways.
The Cisco PVDM4-32 is a refurbished packet voice digital signal processor module from the Cisco PVDM4 Series, listed under our SKU MOD-CISCO-PVDM4-32. It adds 32 channels of DSP capacity to a Cisco ISR router and carries out the voice codec processing that the router's main processor does not handle itself. That work is what lets an ISR act as a voice gateway, passing calls between the PSTN and an IP telephony system. Buyers in Doha and across Qatar usually fit a PVDM4-32 for one of three reasons: to add voice capacity to an ISR that already carries calls, to replace a failed DSP module, or to equip a router that will terminate PSTN lines for a VoIP deployment. The 32-channel rating defines how many simultaneous voice sessions the module can process, which makes it a sensible size for a branch office or a mid-sized site.
MOD-CISCO-PVDM4-32Specification
The PVDM4-32 is a DSP resource for the router, not a network interface: it has no external ports of its own. Its capacity is quoted in voice channels, and 32 is the figure to use when sizing a gateway.
On Cisco voice hardware, the number of calls a DSP module can carry at once depends on the codecs in use: simple codecs use less DSP capacity per call than complex ones. When planning a gateway, count the peak number of simultaneous PSTN calls the site needs and leave headroom for growth. If the router will also run transcoding or conferencing, those services draw on the same DSP pool as gateway calls.
Installation
DSP modules are not hot-swappable, so shut the router down cleanly and remove power before opening the chassis or the module carrier. Wear an anti-static wrist strap, hold the module by its edges, and seat it fully in a free PVDM slot until the retaining clips engage. After power-up, run show inventory to confirm the router has detected the PVDM4-32, then check that the DSP resources appear under the voice card configuration in Cisco IOS. Gateway calls, transcoding and conferencing then need to be assigned to those DSP resources in the voice configuration before the extra channels are used. Keep a copy of the running configuration before the change so the router can be returned to its previous state if needed.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما هو استخدام Cisco PVDM3-32؟
يستخدم لمعالجة إشارات الصوت الرقمية (DSP) في بيئات موجهات Cisco ISR، بما في ذلك تطبيقات VoIP وبوابة الصوت.
كم عدد القنوات التي تدعمها وحدة معالجة إشارات الصوت الرقمية (DSP) هذه؟
تدعم الوحدة 32 قناة.
هل هذه الوحدة متوافقة مع موجهات Cisco ISR؟
نعم، لقد تم تصميمها لتكون متوافقة مع موجهات Cisco ISR.
هل يمكن استخدام هذه الوحدة للاتصال الهاتفي عبر بروتوكول الإنترنت (IP telephony)؟
نعم، تستخدم للاتصال الهاتفي عبر بروتوكول الإنترنت (IP telephony) ودمج شبكة الهاتف العامة (PSTN) في بيئات Cisco الصوتية المدعومة.
هل تدعم Cisco PVDM3-32 معالجة برامج ترميز الصوت؟
نعم، تدعم معالجة برامج ترميز الصوت كجزء من وظيفة DSP الخاصة بها.
