Dell Dual M.2 NVMe PCIe SSD Adapter with Cooling Fan – FM1CF
Price includes warranty
DELL
مواصفات المنتج
| Type | Dual M.2 NVMe PCIe storage adapter |
| Drive Support | Up to 2x M.2 PCIe NVMe SSDs |
| Onboard Storage | None, capacity set by installed SSDs |
| Cooling | Integrated fan and heatsinks |
| Form Factor | Internal PCIe expansion card |
| RAID | Dependent on workstation configuration and Intel VROC support/licensing; no hardware RAID |
Refurbished · Tested

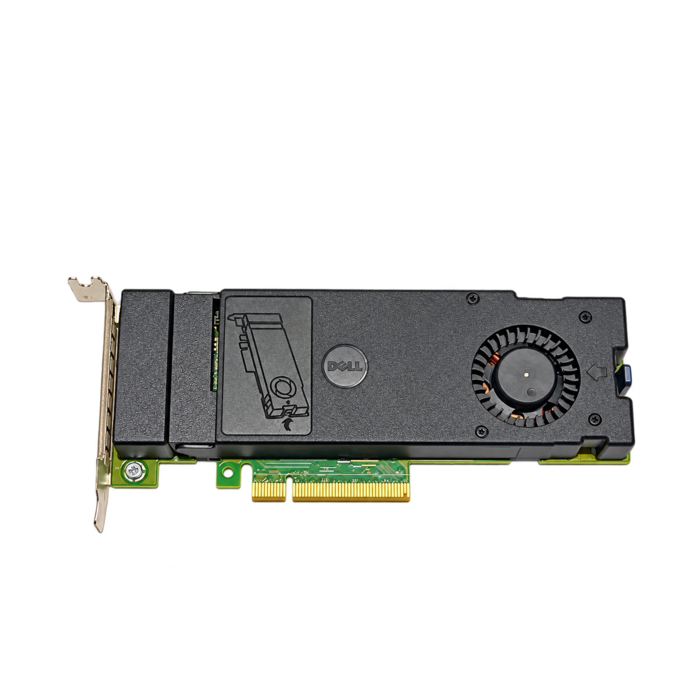

Dell FM1CF dual M.2 NVMe PCIe SSD adapter with cooling fan, for adding fast local storage to Precision tower workstations.
Dell part FM1CF, also listed as 0FM1CF, is an internal PCIe expansion card that carries up to two M.2 NVMe SSDs in Dell Precision T5820, T7820 and T7920 tower workstations. These models belong to Dell's 2017 Precision generation: the T5820 is built on a single Intel Xeon W processor, while the T7820 and T7920 take two Xeon Scalable processors. The card has no storage of its own, so capacity and speed come entirely from the SSDs you fit. An integrated fan and heatsinks cool both drives, which helps them hold their speed under sustained reads and writes inside a closed tower chassis. IT teams and integrators in Doha and across Qatar buy this refurbished card when a workstation's onboard M.2 positions and drive bays are already in use. Typical roles are a dedicated operating system drive, an application volume, or scratch and project space for CAD, rendering, video editing and data analysis. It is a drive carrier, not a hardware RAID controller.
SD-DELL-FM1CF-NVMEForm factor PCIe add-in cardWill it fit my system?
Dell lists the FM1CF for three Precision tower workstations from the same generation. All three are full tower chassis with room for add-in cards.
| Server | Generation | Note |
|---|---|---|
| Precision T5820 | Intel Xeon W, single socket | Listed fitment |
| Precision T7820 | Intel Xeon Scalable, dual socket | Listed fitment |
| Precision T7920 | Intel Xeon Scalable, dual socket | Listed fitment |
Without VROC RAID the two SSDs still work as separate NVMe drives, and the operating system can combine them into a software-managed volume if required.
Specification
The card accepts M.2 PCIe NVMe SSDs only. SATA M.2 drives use a different protocol and are not supported, so for SATA M.2 storage use a different adapter or a SATA bay in the workstation. RAID across the two drives is handled by the platform through Intel VROC, not by the card.
Installation
The card is not hot-pluggable: shut the workstation down, disconnect mains power and use antistatic precautions before opening the chassis. Fit the M.2 NVMe SSDs under the heatsinks first, then seat the card firmly in a free PCIe slot with the correct bracket for the chassis and secure it. Before installing an operating system to a drive on the card, check the BIOS storage settings on the Precision so the NVMe devices are visible and bootable. If you plan a VROC RAID volume, make sure the workstation configuration and any applicable Intel VROC licence support it before creating the array.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comWhich Dell workstations use the FM1CF dual M.2 adapter?
The FM1CF (0FM1CF) card is listed for the Dell Precision T5820, T7820 and T7920 tower workstations. Before installation, confirm that a suitable PCIe slot is free, that the correct bracket is fitted for the chassis, and that the system configuration supports NVMe devices on an add-in card in that slot.
Does the adapter include any SSDs or storage capacity?
No. The FM1CF is a carrier card with no storage of its own. It holds up to two M.2 PCIe NVMe SSDs, which must be sourced separately. Total capacity and drive performance are determined entirely by the SSDs installed. Each drive can be presented as a separate volume, or combined where the platform supports RAID through Intel VROC.
Can I set up RAID with two NVMe drives on this card?
RAID is not built into the card. Any RAID array across the two SSDs depends on the workstation configuration and on Intel VROC support and the licensing that applies to it. Without VROC RAID, the drives operate as independent NVMe devices and can still be used for software-managed volumes in the operating system.
Does the card accept SATA M.2 SSDs?
The adapter is specified for M.2 PCIe NVMe SSDs. SATA M.2 drives use a different protocol and are not part of the published drive support for this card. For SATA M.2 storage, use a different adapter or a SATA drive bay in the workstation.
Why does the adapter have a fan?

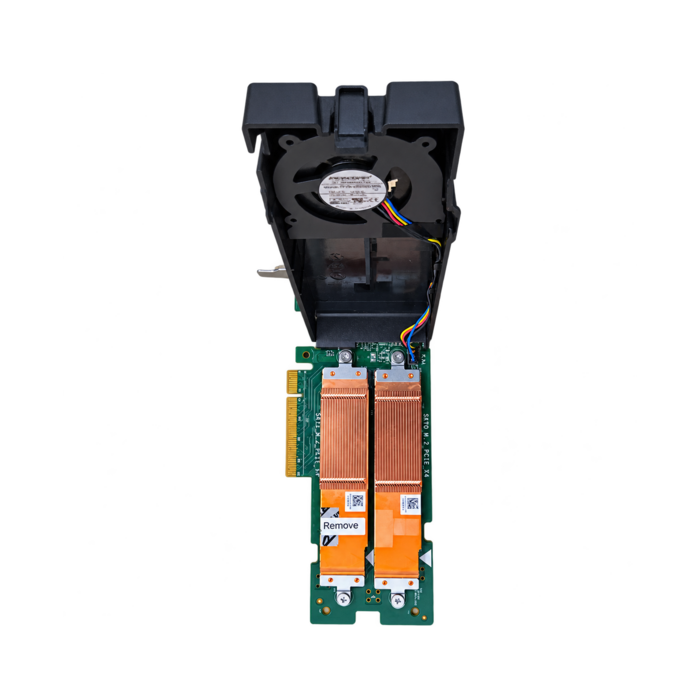

NVMe SSDs heat up under sustained reads and writes and reduce their speed when they get too hot. The FM1CF combines heatsinks with an integrated fan to move air across both drives, which helps them maintain throughput during long transfers, rendering scratch work or large dataset processing inside an enclosed tower chassis.
Can the drives on this adapter be used as a boot drive?
The card is suitable for operating-system, application or project storage. Booting from an NVMe SSD on the adapter depends on the workstation BIOS settings and configuration, including the storage mode set in firmware. Check these settings on the target Precision before installing the operating system to a drive on the card.
