وحدة تحكم Dell PERC H730 RAID
Price includes warranty
DELL
مواصفات المنتج
| العلامة التجارية | DELL |
| رقم المنتج (SKU) | RAID-DELL-H730 |
| الواجهة | PCIe 3.0 |
| واجهة SAS | 12Gb/s SAS |
| الذاكرة المخبئية (Cache) | ذاكرة NV بسعة 1 جيجابايت |
| دعم الأقراص | أقراص SAS و SATA |
Refurbished · Tested

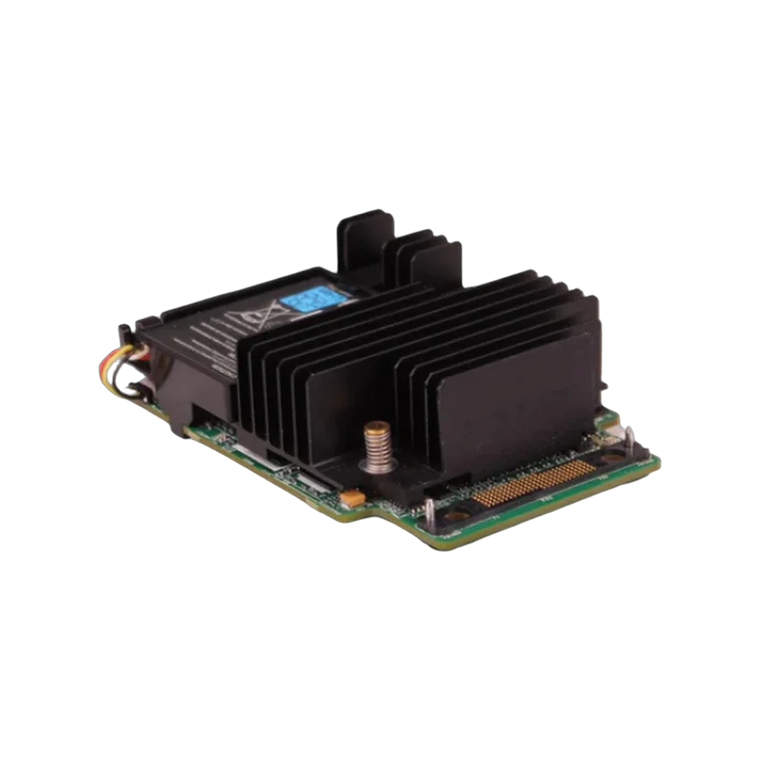

Dell PERC H730 RAID controller with 1GB NV cache and 12Gb/s SAS, for 13th generation PowerEdge R630, R730 and R730xd servers.
The PERC H730 is Dell's PERC 9 hardware RAID controller, built on the LSI SAS3108 RAID-on-chip with 1GB of non-volatile cache. It is the standard mid-range storage controller for 13th generation PowerEdge servers, including the R630, R730 and R730xd. The controller runs 12Gb/s SAS and 6Gb/s SATA drives, both hard disks and SSDs, over a PCIe 3.0 x8 host link, and builds RAID 0, 1, 5, 6, 10, 50 and 60 volumes. Buyers in Qatar use a refurbished H730 to replace a failed card, or to move a server onto parity RAID with write-back caching for virtualisation hosts, database servers and file storage. Non-RAID pass-through disks can sit alongside virtual disks on the same controller, which suits software-defined storage. Our Doha stock code for this card is RAID-DELL-H730. Where heavier sustained write workloads need more cache, the H730P carries 2GB.
RAID-DELL-H730Will it fit my system?
All three servers below are 13th generation PowerEdge platforms in which the H730 is a standard storage controller option.
| Server | Generation | Note |
|---|---|---|
| PowerEdge R630 | 13th generation | 1U rack server |
| PowerEdge R730 | 13th generation | 2U rack server |
| PowerEdge R730xd | 13th generation | 2U storage-dense rack server |
Dell produced the H730 both as an integrated mini mono card for the dedicated storage slot and as a PCIe adapter for standard slots. The two forms are not physically interchangeable, so a replacement must be the same form as the card it replaces. If the server needs no RAID at all, a dedicated HBA such as the HBA330 is often the better choice.
Specification
The H730 and H730P share the SAS3108 chip and the same RAID feature set. The difference is cache size: 1GB on this card against 2GB on the H730P. The battery with flash backup is what allows write-back mode to stay enabled safely, and that matters most on RAID 5 and RAID 6 volumes.
Installation
The H730 is not hot-pluggable: shut the server down and disconnect power before removing the old controller. Fit the card in the same slot, then reconnect the backplane SAS cables and the cache battery where it is fitted separately. On first boot, virtual disks already on the drives appear as a foreign configuration and should be imported through the PERC configuration utility, Lifecycle Controller or iDRAC, not recreated, because creating a new array erases data. Within a single virtual disk, keep drives of the same interface and type, since the controller does not combine SAS with SATA or HDD with SSD in one array.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما هي خوادم Dell المتوافقة مع وحدة تحكم RAID PERC H730؟
تتوافق وحدة التحكم هذه مع خوادم Dell PowerEdge، بما في ذلك R630 وR730 وR730xd.
هل تدعم Dell PERC H730 كلاً من محركات أقراص SAS و SATA؟
نعم، تدعم وحدة التحكم كلاً من محركات أقراص SAS و SATA لتكوينات تخزين خادم مرنة.
ما هي مستويات RAID المدعومة بواسطة وحدة التحكم هذه؟
تدعم Dell PERC H730 مستويات RAID 0 و1 و5 و6 و10 و50 و60.
ما هي الواجهة التي تستخدمها PERC H730؟
إنها وحدة تحكم RAID PCIe 3.0 بواجهة SAS بسرعة 12 جيجابت/ثانية.
ما هو حجم ذاكرة التخزين المؤقت في وحدة تحكم RAID هذه؟
تتضمن وحدة التحكم ذاكرة تخزين مؤقت NV بسعة 1 جيجابايت.
