خادم Dell PowerEdge R640 8 SFF أساسي
Inclusive of VAT · Warranty included
DELL
مواصفات المنتج
| العلامة التجارية | DELL |
| الموديل | PowerEdge R640 |
| عامل الشكل | خادم رف 1U |
| خلجان القيادة | 8 × 2.5 بوصة SFF |
| دعم وحدة المعالجة المركزية | وحدات معالجة مركزية Intel Xeon Scalable مزدوجة |
| مقبس وحدة المعالجة المركزية | LGA3647 |
Refurbished · Tested

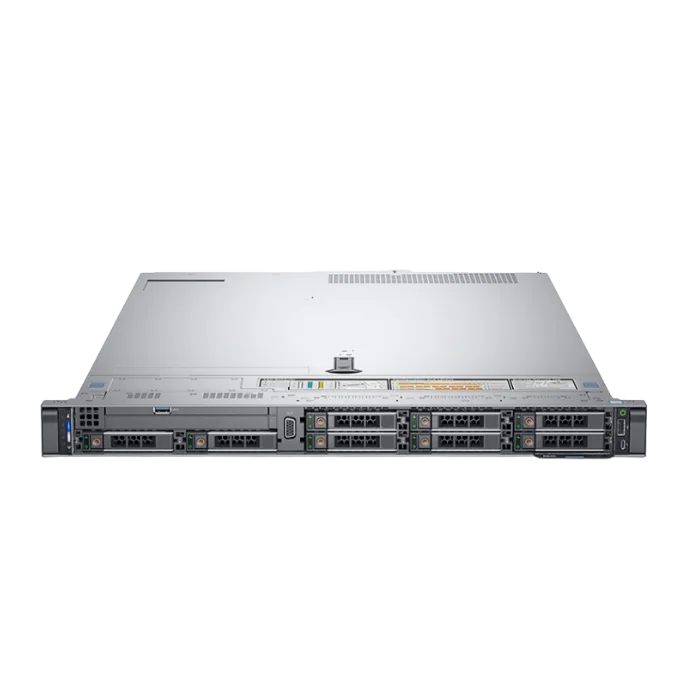

Dell PowerEdge R640 8SFF barebone, a refurbished 1U dual-socket LGA3647 rack server chassis for custom Xeon Scalable builds.

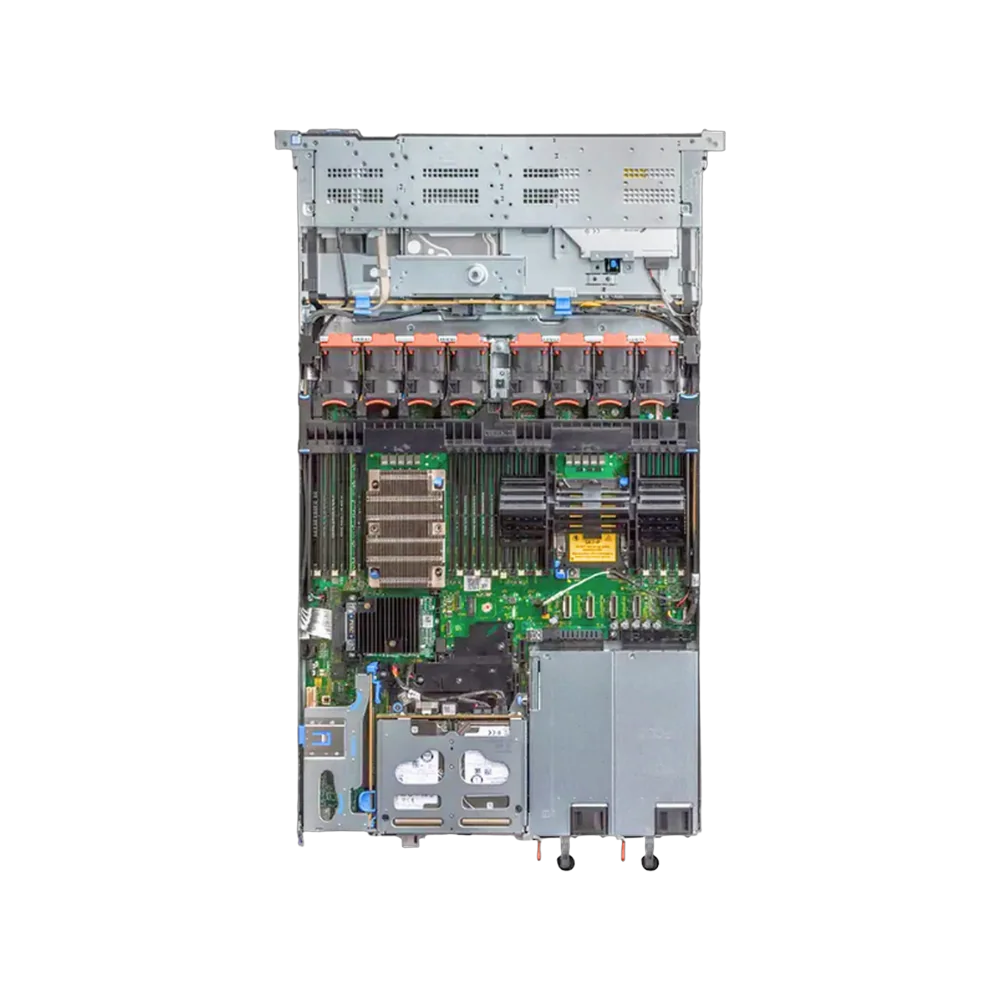

The Dell PowerEdge R640 is Dell's 14th generation (14G) dual-socket 1U rack server, launched in 2017 for Intel Xeon Scalable processors. This is the 8 SFF chassis, also written 8SFF, under our SKU SRV-DELL-R640-8SFF-BARE. It has eight 2.5 inch hot-plug SAS and SATA bays at the front, two LGA3647 sockets, 24 DDR4 DIMM slots, up to three PCIe 3.0 slots and iDRAC9 with Lifecycle Controller. It is supplied as a barebone, with no processors, memory or drives fitted. IT teams and system builders in Doha and across Qatar choose a barebone Dell R640 when they already hold Xeon Scalable CPUs and DDR4 RDIMMs to redeploy, or when they want one fleet standard rather than an inherited build. Typical roles are VMware ESXi, Hyper-V and Proxmox hosts, web and application tiers, and software-defined storage nodes.
SRV-DELL-R640-8SFF-BAREForm factor 1U rackWill it fit my system?
The R640 shares its controllers, carriers and memory types with other Dell 14G servers, so spares from an R740 fleet often fit.
| Component | Fits this chassis |
|---|---|
| Processors | Xeon Scalable 1st and 2nd generation, LGA3647 |
| Memory | DDR4 ECC RDIMM or LRDIMM |
| Drives | 2.5 inch SAS and SATA HDD and SSD |
| Drive carriers | Dell 14G 2.5 inch hot-plug |
| Storage controllers | PERC H330, H730P, H740P, HBA330 |
| Boot devices | BOSS card, dual SD module |
Do not mix RDIMMs and LRDIMMs in one system, and populate memory evenly across both processors. The 8 bay layout has no front NVMe; use a PCIe NVMe card or BOSS instead. Earlier 13th generation drive carriers are a different design and do not fit the 14G bays.
Chassis and platform
The R640 was built in three front layouts: 4 x 3.5 inch, 8 x 2.5 inch and 10 x 2.5 inch. This is the 8 bay SAS and SATA version. Memory speed and capacity depend on the processors you fit, so the figures below are platform maximums.
What you need to add
Plan the build around the processors first, because they set memory speed and usable DIMM slots. With one CPU only 12 slots are active. Second generation Xeon Scalable parts need a recent BIOS, so update firmware through Lifecycle Controller before swapping in Cascade Lake CPUs.
- One or two Intel Xeon Scalable processors (Skylake-SP or Cascade Lake), each with an R640 1U heatsink
- DDR4 ECC registered memory, RDIMM or LRDIMM
- 2.5 inch SAS or SATA drives in Dell 14G hot-plug carriers
- A PERC H330, H730P, H740P or HBA330 to run the front bays
- A boot device: BOSS card, dual SD module or a front-bay drive
- A network daughter card for onboard ports
- Two matched hot-plug power supplies of the same wattage for redundancy
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comهل يتضمن خادم Dell PowerEdge R640 هذا معالجات أو ذاكرة أو أقراص تخزين؟
لا. هذا خادم هيكلي ولا يتضمن وحدة معالجة مركزية (CPU) أو ذاكرة وصول عشوائي (RAM) أو قرص تخزين.
ما نوع المعالجات التي يدعمها R640؟
يدعم الخادم معالجات Intel Xeon Scalable مزدوجة مع مقبس LGA3647.
كم عدد أقراص التخزين التي يمكن تركيبها في هذا الخادم؟
يحتوي على 8 فتحات لأقراص SFF بحجم 2.5 بوصة لأقراص التخزين المتوافقة.
ما هي واجهات التخزين المدعومة؟
يدعم R640 أقراص SAS و SATA و NVMe.
هل يدعم هذا الخادم الإدارة عن بعد؟
نعم، يتضمن دعم إدارة iDRAC9 عن بعد.
