خادم Dell PowerEdge R740 8x3.5" LFF فارغ
Inclusive of VAT · Warranty included
DELL
مواصفات المنتج
| العلامة التجارية | DELL |
| رقم المنتج (SKU) | SRV-DELL-R740-8LFF-BARE |
| عامل الشكل | منصة خادم رف 2U |
| فتحات الأقراص | 8x 3.5 بوصة LFF |
| علب الأقراص | غير متضمنة |
| الحشوات | متضمنة |
Refurbished · Tested

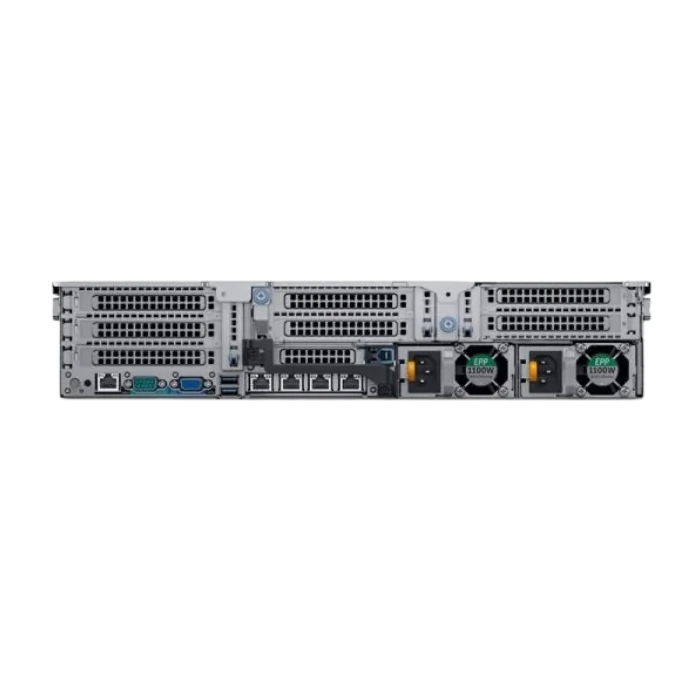

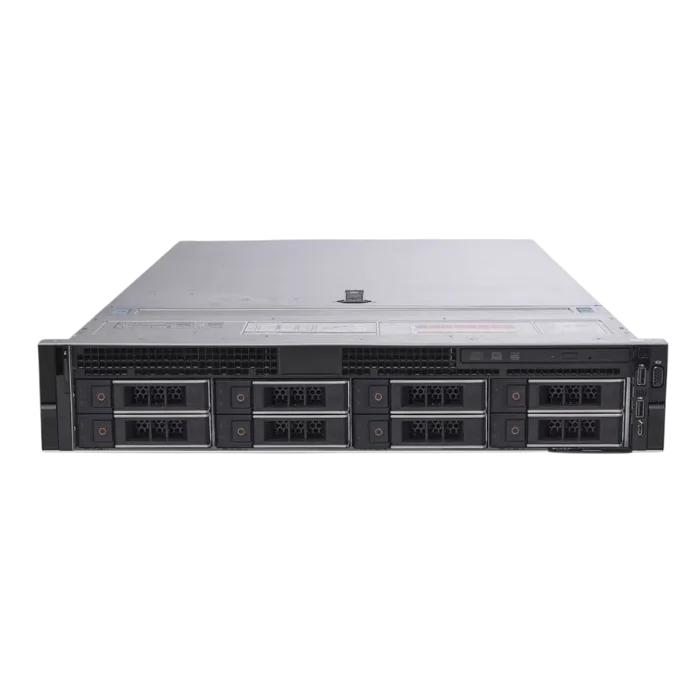

Dell PowerEdge R740 8 x 3.5 inch LFF barebone server, a 2U dual-socket platform for custom storage and virtualisation builds.
This is a refurbished Dell PowerEdge R740 in its 8 x 3.5 inch LFF chassis, sold as a barebone under our SKU SRV-DELL-R740-8LFF-BARE. The R740 is Dell's mainstream 2U dual-socket rack server, introduced in 2017 for the Intel Xeon Scalable processor family on the LGA3647 socket. This R740 8LFF build has no processors, memory, drives or drive carriers fitted. Fillers are fitted to the front bays, and iDRAC9 remote management is integrated on the system board. Buyers in Qatar choose this barebone when they already hold processors, DDR4 ECC Registered memory or large-capacity 3.5 inch drives, or when they want to specify every component themselves. The eight large-form-factor bays suit file servers, backup targets, video storage and virtualisation hosts that need capacity more than drive count. We keep these chassis in Doha for system builders, resellers and IT teams expanding an existing R740 estate.
SRV-DELL-R740-8LFF-BAREForm factor 2U rackWill it fit my system?
The front bays take Dell 3.5 inch hot-plug carriers made for this PowerEdge generation; carriers from older PowerEdge servers use a different latch and will not seat correctly. A 2.5 inch SSD can be fitted in a 3.5 inch bay with a Dell adapter carrier. Memory must be DDR4 ECC Registered; unbuffered DDR4 and older DDR3 modules will not work. Any Dell ReadyRails kit specified for the 2U R740 chassis will fit, and sliding rails are the better choice if the lid will be removed for upgrades in the rack. Update the BIOS and iDRAC9 firmware before fitting second generation Xeon Scalable processors.
Chassis and platform
The R740 belongs to the Dell PowerEdge generation built for Intel Xeon Scalable processors, and both the first and second generation of that family run in it once the BIOS is current. Memory capacity scales with processor count: the 24 DIMM slots are split 12 per socket, so a single-processor build can use only half of them.
What you need to add
A barebone needs the core components before it will boot an operating system. Plan the build as a set so the processors, memory and storage controller match each other and the workload.
- One or two Intel Xeon Scalable processors for the LGA3647 socket, each with the correct Dell heatsink. Two processors should be the same model and stepping.
- DDR4 ECC Registered memory, RDIMM or LRDIMM. Do not mix the two types in one server, and populate slots evenly across both processors.
- Dell 3.5 inch hot-plug drive carriers for each bay you intend to use, plus SAS, SATA or SSD drives.
- A Dell PERC RAID controller or HBA if one is not fitted, with the matching backplane cables.
- A network daughter card if the build needs onboard Ethernet ports.
- Two matching hot-plug power supplies for redundancy, and rails if the server is going into a rack.
What is included
One Dell PowerEdge R740 8 x 3.5 inch LFF barebone chassis with front bay fillers fitted. Drive carriers, processors and memory are not included.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما نوع الخادم الذي يمثله Dell PowerEdge R740؟
إنه منصة خادم رف 2U مصممة كخادم أساسي (barebone) لعمليات بناء الشركات المخصصة.
هل يدعم هذا الخادم R740 معالجات ثنائية؟
نعم، تدعم هذه المنصة وحدات معالجة مركزية Intel Xeon Scalable مزدوجة مع مقبس LGA3647.
ما هي أنواع محركات الأقراص المدعومة؟
يدعم الخادم محركات أقراص SAS و SATA و SSD في فتحات LFF البالغ عددها 8 × 3.5 بوصة.
هل تشتمل على حاملات محركات الأقراص؟
لا، لا يتم تضمين حاملات محركات الأقراص. تتضمن الهيكل حشوات.
ما هي ميزات الإدارة المتوفرة؟
يتضمن النظام إدارة iDRAC9 مدمجة للإدارة والمراقبة عن بُعد.
