Dell Secondary PCIe Riser x16 LP مع قفص R450 R650xs
Inclusive of VAT · Warranty included
DELL
مواصفات المنتج
| العلامة التجارية | DELL |
| رقم المنتج (SKU) | RISER-DELL-R450-R650XS-X16 |
| نوع المنتج | قاطع PCIe |
| الواجهة | PCIe 4.0 |
| نوع الفتحة | فتحة 1x x16 منخفضة الارتفاع |
| يتضمن | قفص قاطع |
Refurbished · Tested

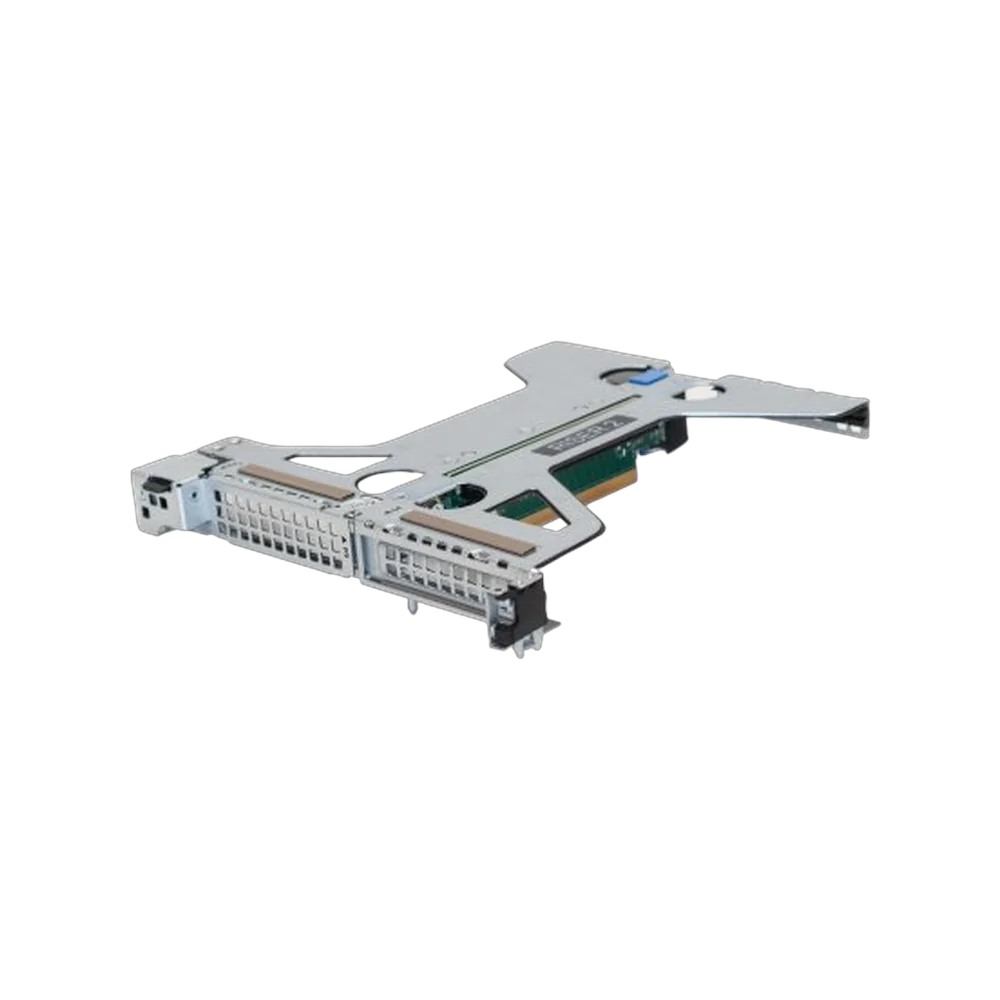

Dell secondary PCIe 4.0 riser with one x16 low profile slot and cage for PowerEdge R450 and R650xs servers.
This is the secondary PCIe riser for Dell's PowerEdge R450 and R650xs 1U servers, supplied with its cage: a PCIe 4.0 riser board carrying one x16 low profile slot, which mounts in the second riser position at the rear of the chassis and adds an expansion slot that a server shipped without the riser does not have. It is refurbished and comes with the metal cage that locates it in the chassis. Buyers in Qatar fit this riser to an R450 or R650xs that needs a second card, typically a 25GbE network adapter, a Fibre Channel HBA or an NVMe adapter alongside the RAID or network card already fitted. ServerDove keeps it in Doha stock alongside its R650xs barebones.
RISER-DELL-R450-R650XS-X16Specification
A 1U server has no room for cards to stand upright, so risers turn the slot sideways; each riser position on the R450 and R650xs board is wired to a particular processor, and the secondary riser's lanes come from the second processor on some configurations, so the server may need two processors fitted for the slot to be active. PCIe 4.0 gives the slot double the bandwidth per lane of a 14th generation riser, which is what makes single slot 100GbE and PCIe 4.0 NVMe cards worthwhile. Low profile cards only fit; full height cards need a different riser.
What is included
- Dell secondary PCIe 4.0 riser board, one x16 low profile slot
- Riser cage for the R450 and R650xs chassis
Installation
Power the server down and unplug it, remove the lid and locate the empty secondary riser position at the rear. Fit the card into the riser first, secure its bracket to the cage, then lower the assembly into the chassis so the riser's connector engages the system board socket and its cage locks into place. Refit the lid, boot, and confirm in the BIOS or iDRAC that the new slot and card are recognised. Check the processor population rule for the slot if the card does not appear.
Part numbers and identification
Condition & testing
- Full hardware diagnostics and burn-in
- Memory, storage and graphics verified
- BIOS returned to defaults
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this workstation
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
إذا كنت بحاجة إلى سكك تثبيت أو واجهة أمامية أو أقراص إضافية، اسأل عبر واتساب قبل الطلب وسنقدم لك عرض سعر مع الوحدة.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما هي خوادم Dell المتوافقة مع رافع PCIe هذا؟
يتوافق هذا الرافع مع خوادم Dell PowerEdge R450 و R650xs.
ما نوع الفتحة التي يوفرها هذا الرافع؟
يوفر فتحة PCIe واحدة منخفضة الارتفاع x16.
هل يتضمن هذا الرافع القفص؟
نعم، قفص الرافع متضمن.
ما هو إصدار PCIe الذي يدعمه هذا الرافع؟
يستخدم هذا الرافع واجهة PCIe 4.0.
هل هذا المنتج مكون لترقية الخادم؟
نعم، إنه مدرج كمكون لترقية الخادم لأنظمة Dell PowerEdge المدعومة.
