طقم مبرد المعالج HPE DL360 Gen9
Price includes warranty
ServerDove
مواصفات المنتج
| العلامة التجارية | ServerDove |
| رقم المنتج | HPE-DL360G9-HEATSINK |
| نوع المنتج | طقم مبرد لوحدة المعالجة المركزية |
| الفئة | قطع غيار وملحقات |
| الفئة الفرعية | قطع غيار الخوادم |
Refurbished · Tested

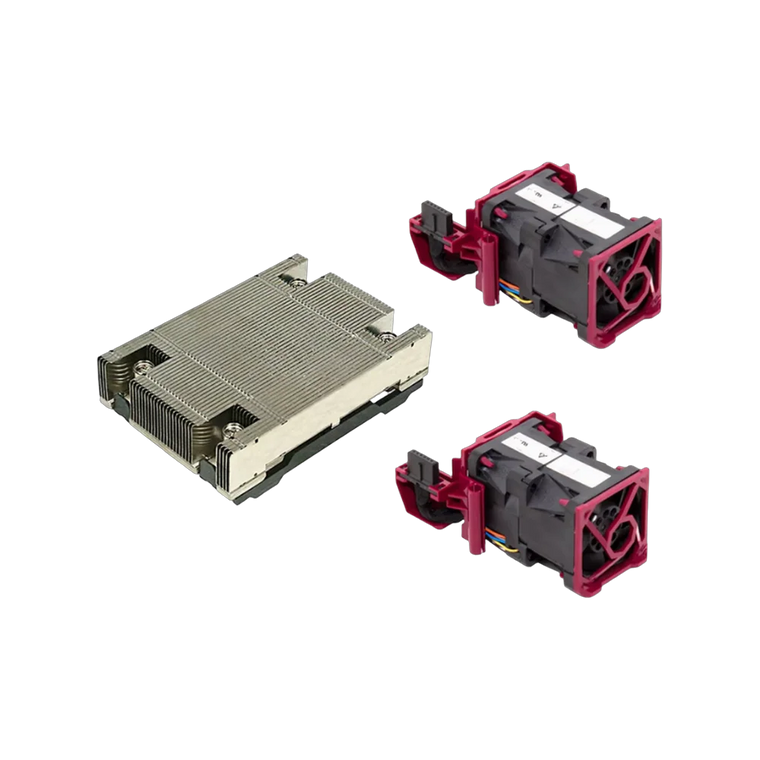

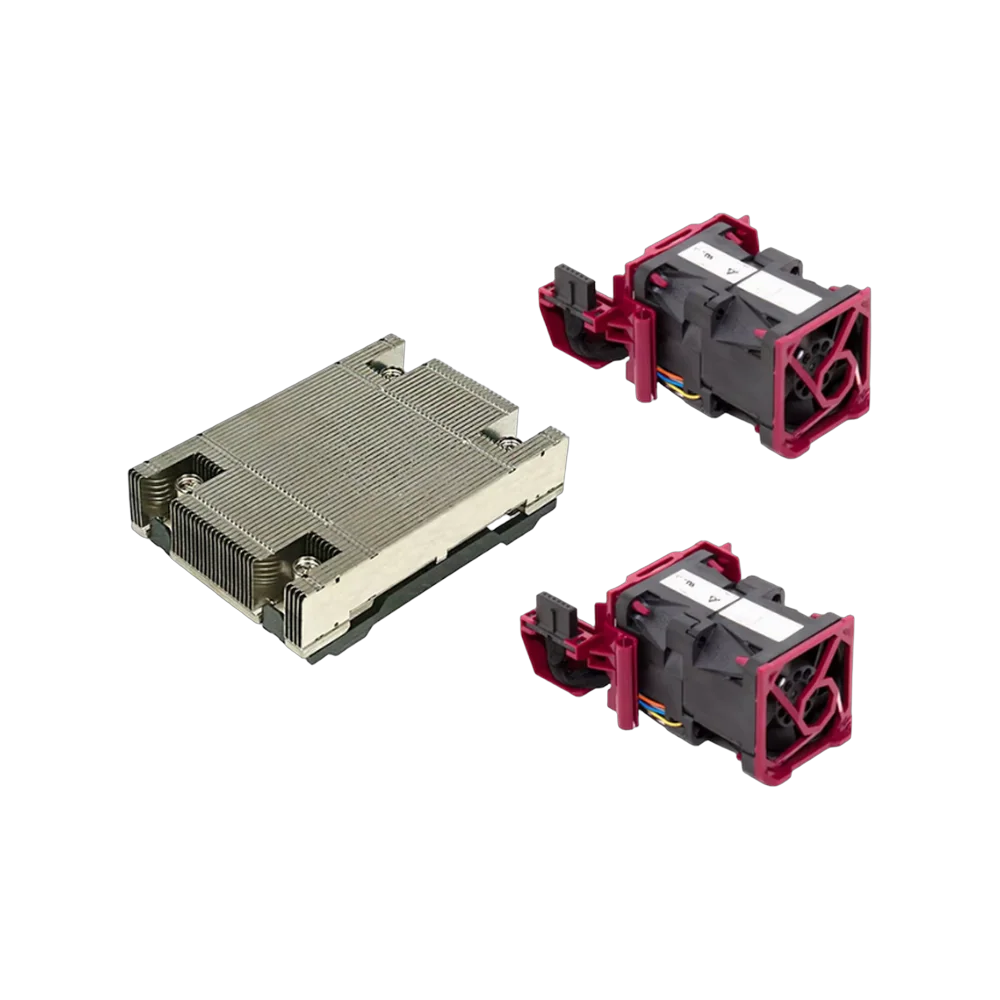

HPE ProLiant DL360 Gen9 CPU heatsink kit, the 1U processor heatsink needed to fit a second or replacement processor, refurbished.
This is the processor heatsink for the HPE ProLiant DL360 Gen9, the 1U rack server of the Xeon E5 v3 and v4 generation. A DL360 Gen9 supplied with one processor has an empty second socket with no heatsink, and a bare processor cannot be fitted without one; this kit is the HPE part that completes the second socket, or replaces a heatsink that was lost or damaged. It is refurbished and specific to the DL360 Gen9 chassis. Buyers in Qatar order it together with a second processor when upgrading a single socket DL360 Gen9 to two, which is the most common upgrade on that server, and ServerDove keeps it in Doha stock alongside the processors and the barebone chassis.
HPE-DL360G9-HEATSINKForm factor 1USpecification

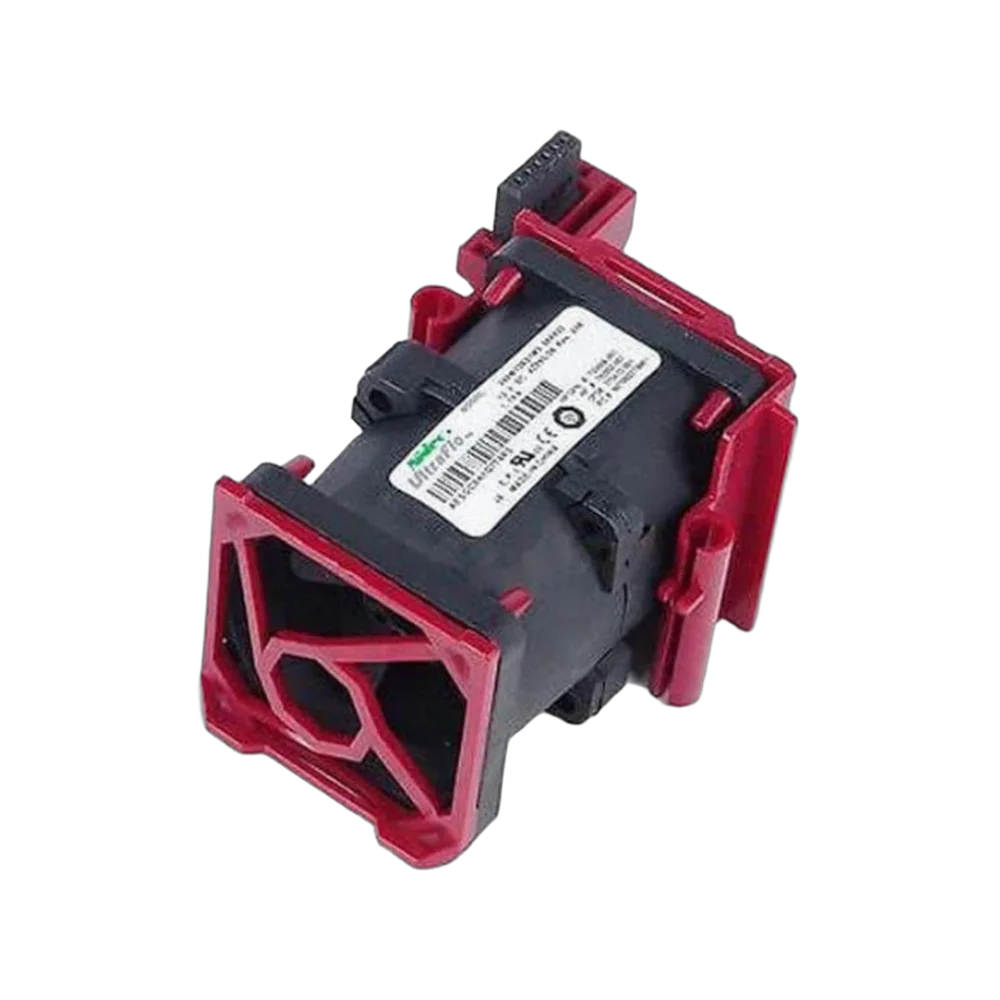

HPE made two heatsinks for the DL360 Gen9: a standard one for processors up to 135W and a high performance one for the hotter parts. Heatsinks are matched to the chassis airflow and mounting pattern, so a DL380 Gen9 or Gen8 heatsink does not fit this server. A DL360 Gen9 also needs its second processor fan set fitted when the second socket is populated, which HPE supplies separately.

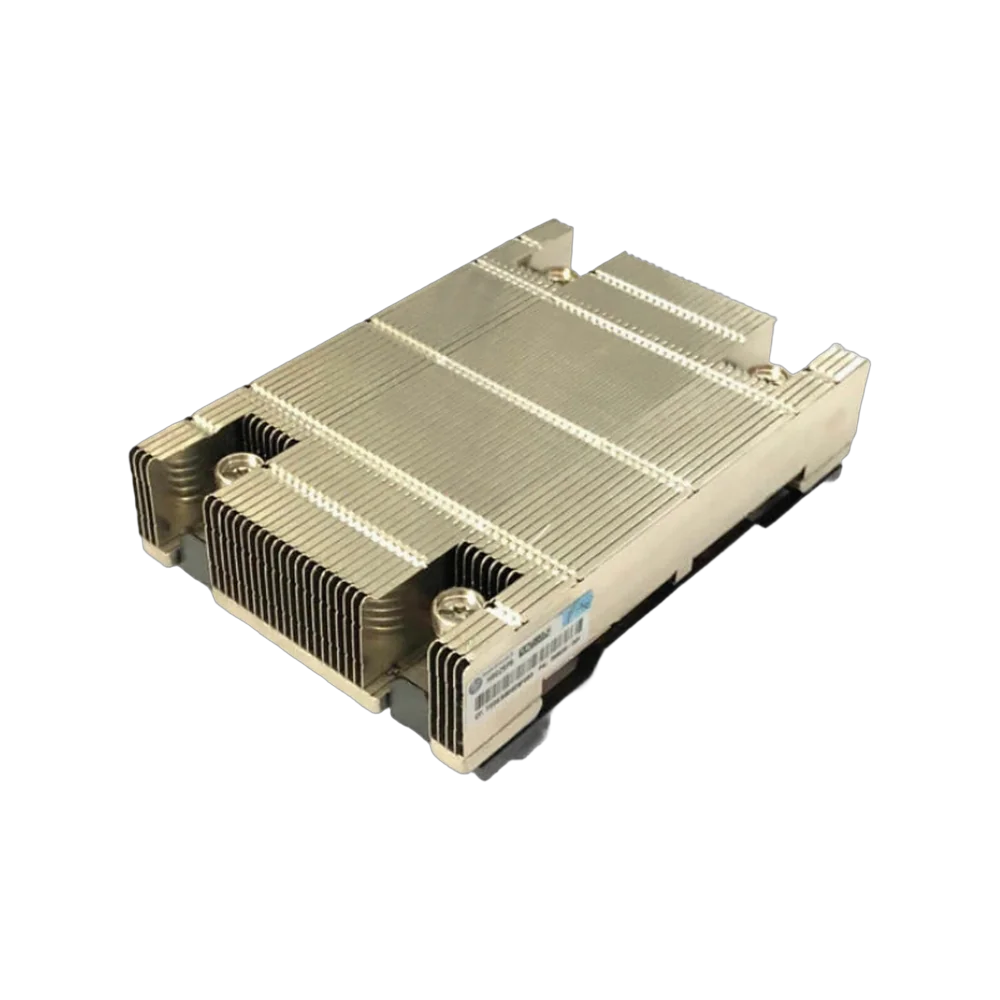

The heatsink is a low profile copper and aluminium unit sized to the 1U chassis height, with captive spring loaded screws that set the correct mounting pressure automatically, so no torque tool is needed. HPE ships new heatsinks with a thermal pad already applied; a refurbished one needs a fresh application of thermal compound before use, and the old compound must be cleaned from the processor if it is being reused.
Installation
Power the server down and unplug it, remove the lid and the air baffle over the processors. Fit the processor to the socket first, then apply thermal compound in a thin even layer, or use the pre-applied pad if the heatsink has one, and lower the heatsink squarely onto the processor. Tighten the four captive screws in a cross pattern to the stop, refit the baffle and lid, and check after boot that iLO reports both processors at normal temperature.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
