Intel Xeon W-2104 4C 3.20GHz LGA2066 وحدة معالجة مركزية
Inclusive of VAT · Warranty included
INTEL
مواصفات المنتج
| العلامة التجارية | INTEL |
| رمز المنتج | CPU-INTEL-XEON-W2104 |
| موديل المعالج | Intel Xeon W-2104 |
| عدد الأنوية | 4C |
| سرعة المعالج الأساسية | 3.20GHz |
| المقبس | LGA2066 |
Refurbished · Tested

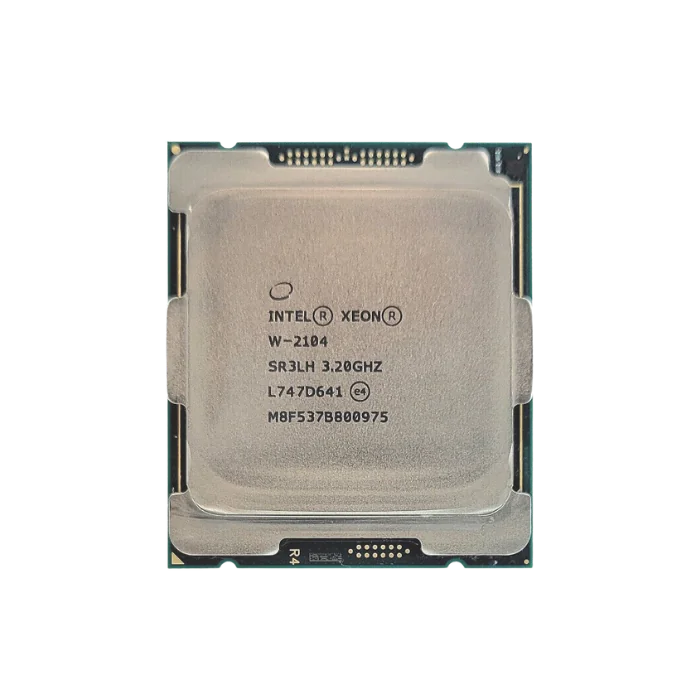

Intel Xeon W-2104, a 4 core LGA2066 workstation processor at 3.20GHz for single socket Xeon W workstations, refurbished.
The Xeon W-2104 is the entry model of Intel's Xeon W family for the LGA2066 socket, the workstation counterpart of the first Xeon Scalable server processors. Four cores at a fixed 3.20GHz, without Hyper-Threading or Turbo Boost, with 8.25MB of cache, four channels of DDR4 ECC memory at 2400 MT/s and 48 PCIe 3.0 lanes at a 120W rating. What it offers over a desktop processor is ECC memory support and the lanes to feed a professional graphics card and NVMe storage at full speed. Buyers in Qatar fit this refurbished processor to a single socket Dell Precision or HP Z workstation of the LGA2066 generation for CAD seats and instrument controllers, where the software is single threaded and four fast cores are enough. ServerDove keeps it in Doha stock as the low cost way to complete such a chassis.
CPU-INTEL-XEON-W2104Specification
Four cores and four threads is modest by current standards, but the platform around them is not: four memory channels, ECC support and 48 PCIe lanes are workstation features that no four core desktop processor offers.
The natural use is a workstation that runs one demanding application at a time: a CAD seat, a measurement or laboratory controller, a video wall driver or a small database console. The same chassis accepts the larger Xeon W processors of the family, so a system built around the W-2104 can be upgraded to eight, ten or more cores later by changing only the processor. Memory should be fitted as four identical modules to use every channel.
Installation
The LGA2066 socket uses a hinged load plate: open the lever, lower the processor with its notches aligned to the socket keys, close the plate and lever, then apply thermal compound and fit the workstation's heatsink. Xeon W processors need a workstation chassis with the C422 chipset; a consumer X299 board will not boot them. Populate four DIMMs of the same size to use all memory channels.
Part numbers and identification
Condition & testing
- Full hardware diagnostics and burn-in
- Memory, storage and power supplies verified
- Management controller reset, BIOS returned to defaults
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this server
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
إذا كنت بحاجة إلى سكك تثبيت أو واجهة أمامية أو أقراص إضافية، اسأل عبر واتساب قبل الطلب وسنقدم لك عرض سعر مع الوحدة.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما هو المقبس الذي يستخدمه معالج Intel Xeon W-2104؟
يستخدم هذا المعالج مقبس LGA2066 وهو مخصص للوحات الأم المتوافقة مع محطات العمل.
كم عدد الأنوية في Xeon W-2104؟
يحتوي معالج Intel Xeon W-2104 على 4 أنوية.
ما هي السرعة الأساسية لهذا المعالج؟
السرعة الأساسية المذكورة هي 3.20 جيجاهرتز.
هل هذا المعالج مناسب لبناء محطات العمل؟
نعم، Xeon W-2104 هو معالج من فئة محطات العمل مصمم للأنظمة التي تدعم منصة LGA2066.
هل يمكن استخدام هذا المعالج كقطعة بديلة؟
يمكن استخدامه كبديل في الأنظمة المتوافقة التي تتطلب معالج Intel Xeon W-2104 ودعم مقبس LGA2066.
