علبة قرص صلب HPE 3.5 بوصة LFF (ذات الإطار الكبير) للجيل 8 والجيل 9 والجيل 10
Inclusive of VAT · Warranty included
HPE
مواصفات المنتج
| العلامة التجارية | HPE |
| نوع المنتج | صينية قرص صلب |
| عامل شكل القرص | 3.5 بوصة LFF |
| دعم الأقراص | أقراص صلبة SAS / SATA |
| رقم جزء HPE | 651314-001 |
| التوافق | خوادم HPE Gen8 Gen9 Gen10 |
Refurbished · Tested

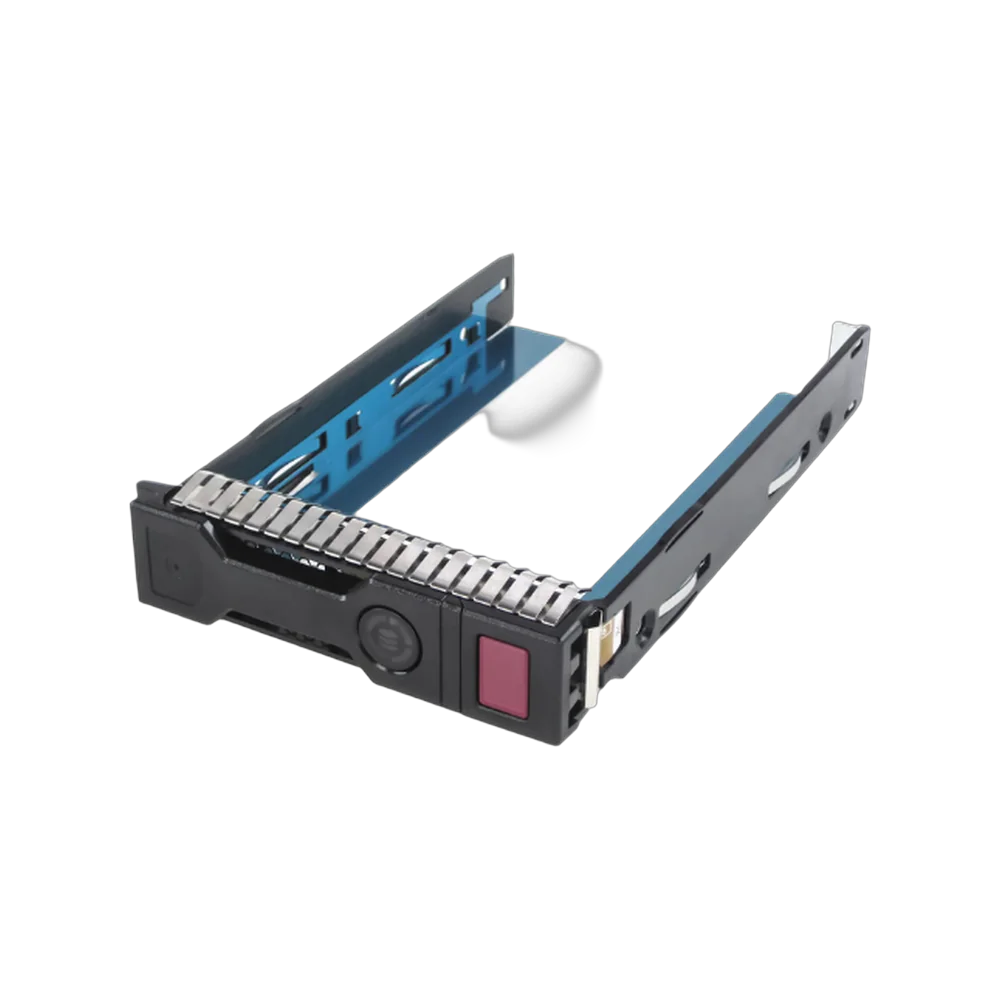

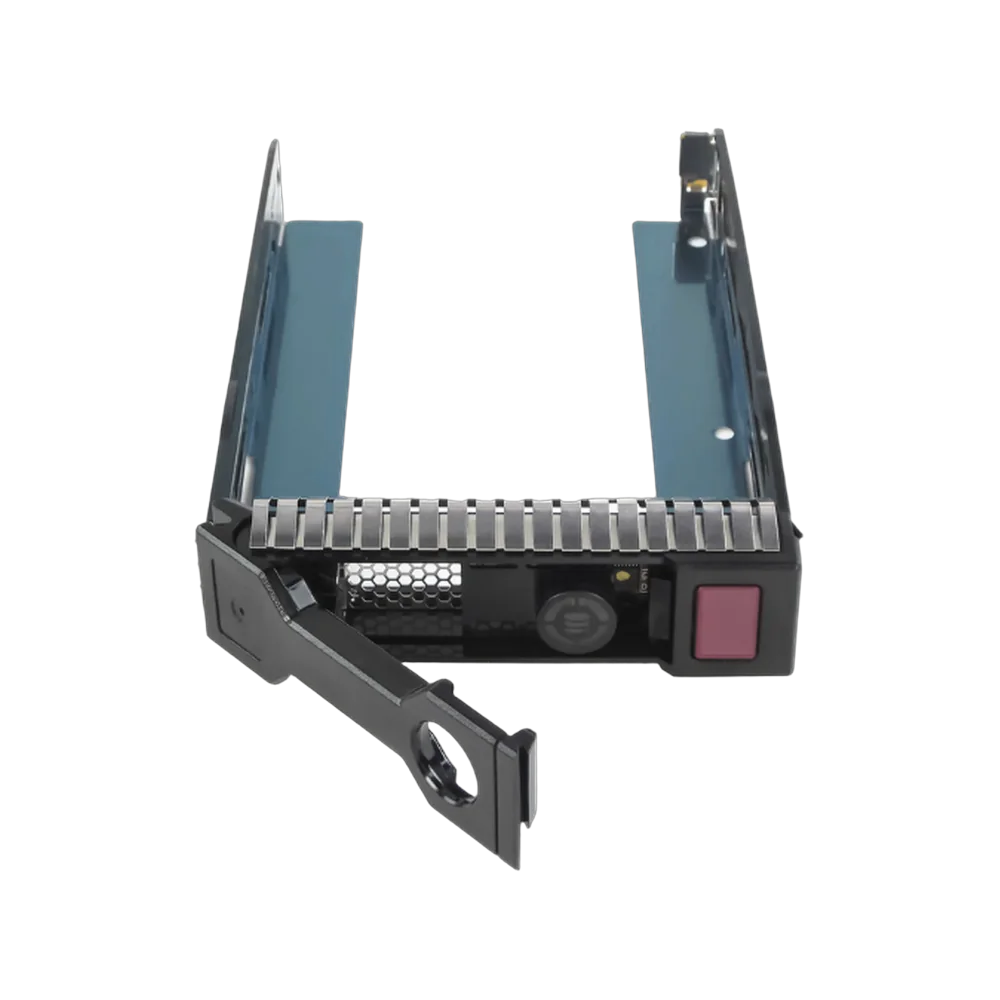

HPE 3.5 inch LFF hot-plug drive tray, part number 651314-001, the SmartDrive caddy for Gen8, Gen9 and Gen10 ProLiant DL360, DL380 and ML350 servers.
HPE part 651314-001 is the 3.5 inch large form factor SmartDrive carrier, the tray that holds a SAS or SATA hard drive in the hot-plug LFF bays of ProLiant Gen8, Gen9 and Gen10 servers, including the DL360, DL380 and ML350 series. HPE kept the same carrier design across three generations, so this one tray serves the whole range. It is refurbished and supplied empty. Buyers in Qatar need one for every bare LFF drive they fit to a ProLiant, and ServerDove keeps this refurbished carrier in Doha stock in quantity so drives and trays can be ordered together for storage server builds.
CADDY-HP-G8G9G10-LFFForm factor 3.5 inch LFFWill it fit my system?
| Server | Generation | Note |
|---|---|---|
| HPE ProLiant DL360 | Gen8, Gen9, Gen10 | LFF chassis variants |
| HPE ProLiant DL380 | Gen8, Gen9, Gen10 | LFF chassis variants |
| HPE ProLiant ML350 | Gen8, Gen9, Gen10 | LFF drive cages |
Specification
The SmartDrive carrier has a status ring on its face that shows the drive's activity, fault and rebuild state, driven by the backplane, and a release button with a "do not remove" indicator that lights when pulling the drive would break an array. Carriers from Gen7 and earlier ProLiant servers are a different design and do not fit these bays. A 2.5 inch drive can go in an LFF bay only with HPE's separate adapter carrier.
Installation
Fit the drive in the carrier with the four side screws, connector to the rear, remove the bay blank, and slide the carrier in with the handle open until it stops, then close the handle to seat the drive. The Smart Array controller detects it within seconds. Keep blanks in empty bays for airflow, and note that the carrier's screws are reused if a drive is later swapped.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما هي خوادم HPE المتوافقة مع درج محرك الأقراص الثابت هذا؟
إنه متوافق مع خوادم HPE من الجيل 8 والجيل 9 والجيل 10، بما في ذلك أنظمة سلسلة DL360 و DL380 و ML350.
ما هو حجم محرك الأقراص الذي يدعمه هذا الدرج؟
هذا درج محرك أقراص LFF مقاس 3.5 بوصة مصمم لمحركات الأقراص الصلبة ذات عامل الشكل الكبير.
هل يدعم هذا الدرج كلاً من محركات أقراص SAS و SATA؟
نعم، إنه يدعم محركات أقراص SAS و SATA في فتحات خادم HPE المتوافقة.
هل هذا حامل محرك أقراص قابل للتبديل السريع؟
نعم، هذا المنتج مدرج كحامل محرك أقراص قابل للتبديل السريع لخوادم HPE المدعومة.
ما هو رقم جزء HPE لهذا الدرج؟
رقم جزء HPE هو 651314-001.
