HPE DL360 Gen9 كابل Mini SAS مزدوج 756907-001
Price includes warranty
HPE
مواصفات المنتج
| العلامة التجارية | HPE |
| رقم المنتج (SKU) | CABLE-HP-DL360G9-SAS-756907 |
| رقم جزء HPE | 756907-001 |
| نوع المنتج | كابل Mini SAS |
| التوافق | HPE ProLiant DL360 Gen9 |
| دعم اللوحة الخلفية للقرص | 8SFF 2.5" لوحة خلفية للقرص |
Refurbished · Tested

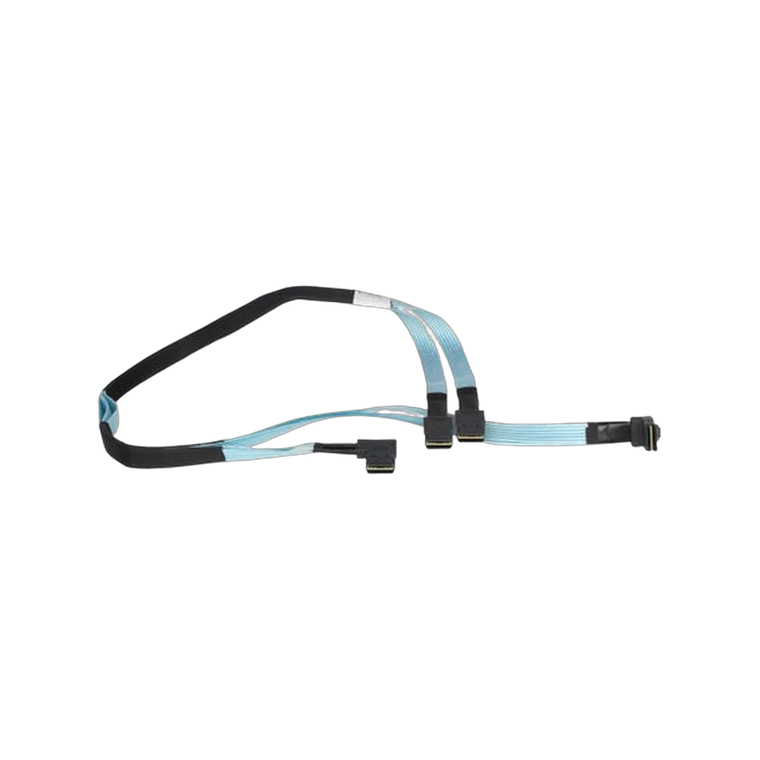

HPE dual Mini SAS cable 756907-001 for the ProLiant DL360 Gen9, the internal SFF-8087 cable set from backplane to controller.
HPE part 756907-001 is the dual Mini SAS cable for the ProLiant DL360 Gen9, connecting the server's 8SFF 2.5 inch drive backplane to the Smart Array controller with two SFF-8087 Mini SAS connectors, each carrying four SAS lanes. It is the internal storage cable HPE fitted at the factory, cut to the DL360 Gen9's routing, and it is the part needed when a controller is added to a barebone chassis that came without cables or when a cable has been damaged. It is refurbished. Buyers in Qatar order 756907-001 when completing a DL360 Gen9 barebone with a Smart Array controller, and ServerDove keeps it in Doha stock so the controller and its cable can be supplied together.
CABLE-HP-DL360G9-SAS-756907Specification
Eight drives need eight SAS lanes, which is why the cable is a dual: each SFF-8087 connector carries four lanes, and the two together serve the eight bays at full 12Gb/s per lane. HPE routes the cable along the chassis wall under the air baffle, and its length and connector orientation match that path; a generic Mini SAS cable of the wrong length either will not reach or will obstruct the baffle. The same connector standard is used on the Gen9 Smart Array cards and on the embedded controller.
Buyers of ServerDove's DL360 Gen9 barebone who add their own controller will need this cable set if the chassis arrived without one, and it is held in Doha stock for that reason.
Installation
Power the server down and unplug it, remove the lid and the air baffle. Connect one end of each cable to the backplane's two ports and route the cables along the chassis channel to the controller, connecting each to a controller port and noting which serves bays one to four and five to eight. Refit the baffle and lid. On boot the controller should show all eight bays, which confirms both cables are seated.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comما هو الخادم الذي صُمّم كابل Mini SAS هذا من أجله؟
صُمّم هذا الكابل لخادم HPE ProLiant DL360 Gen9.
ما هو اللوحة الخلفية لمحركات الأقراص التي يدعمها؟
يدعم اللوحة الخلفية لمحركات الأقراص بحجم 8SFF 2.5 بوصة.
ما نوع الموصل الذي يستخدمه هذا الكابل؟
يستخدم موصلات SFF-8087 SAS.
هل هذا قطعة غيار أصلية من HPE؟
نعم، إنه مدرج كقطعة غيار OEM HPE.
ما هو رقم جزء HPE لهذا الكابل؟
رقم جزء HPE هو 756907-001.
