اللوحات الخلفية للخوادم

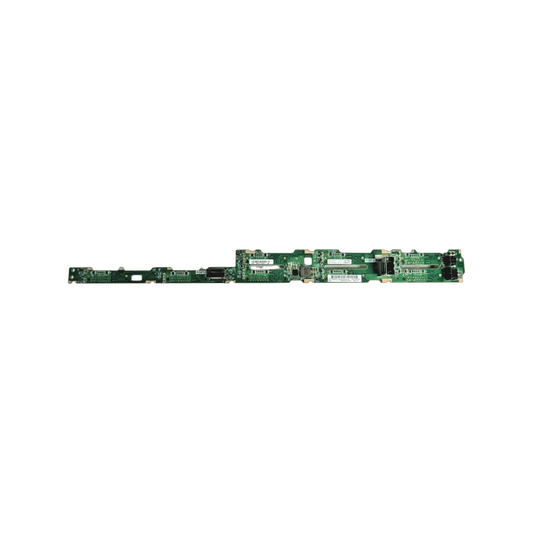

It connects the hot-plug drive bays to the storage controller. Each drive slides into a connector on the backplane, which carries data and power, and cables from the back of the board run to the RAID controller, HBA or motherboard. Many backplanes also drive the bay status lights and report drive presence, so the server knows which bay holds which drive.

Not on that backplane. NVMe drives need a backplane with NVMe-capable bays and PCIe connections to the motherboard, a riser or a switch card. Some servers can be upgraded by swapping the backplane and adding the right cables and cards, while others cannot take NVMe at all. Send the server model and the team will check what is possible.

Yes. SAS backplanes and controllers accept SATA drives, which is why most servers can mix the two across different arrays. The reverse does not work: SAS drives will not run on a SATA-only backplane or controller. Keep drives of one type within each RAID array, and check the caddy matches your server generation.

Typical signs are a group of bays that stops detecting drives, drives that drop out and return, bay lights that do not work, or the controller reporting a missing enclosure. Faulty cables and controllers can cause the same symptoms, so it is worth reseating cables and checking logs first. Send the logs or error messages and the team can help narrow it down.

An expander backplane includes a SAS expander chip that lets one controller connection serve more bays than the controller has ports. It is common in servers with many drive bays. The trade-off is that bays share the bandwidth of the link to the controller, which rarely matters for hard drives but can for large numbers of fast SSDs.
