محركات أقراص صلبة SAS وSATA عالية السعة مقاس 3.5 بوصة للخوادم وأنظمة التخزين المتصل بالشبكة (NAS) والنسخ الاحتياطي والمراقبة وتخزين البيانات على نطاق واسع.

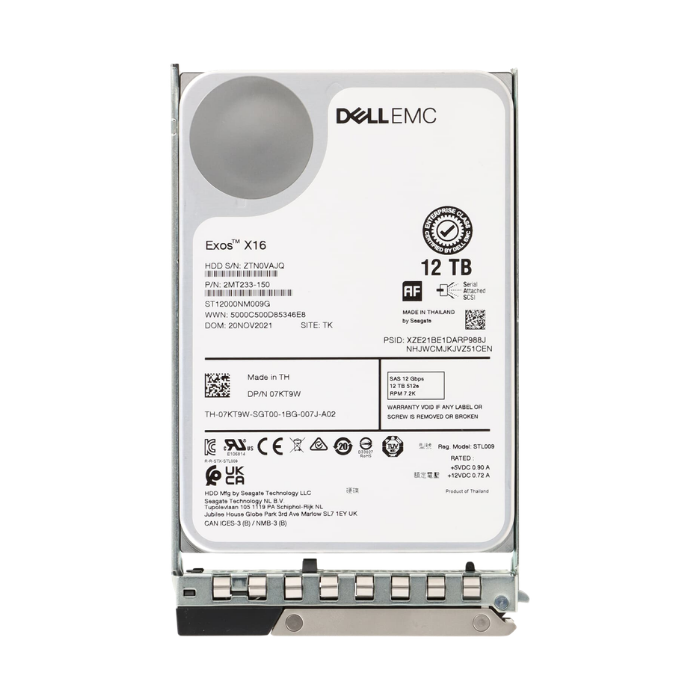

The 3.5-inch large form factor (LFF) drive is where capacity lives. This collection holds 7.2K RPM enterprise drives with SAS and SATA interfaces from Dell EMC, HPE, HGST Ultrastar, Western Digital Ultrastar and Seagate, spanning older lower-capacity models for keeping existing arrays matched through to the multi-terabyte drives used in current builds.
It is for buyers filling LFF servers, storage servers and rack NAS units, and for anyone building backup, archive or video retention storage where terabytes per riyal count most.
At this speed the two interfaces use similar mechanics, so the choice rests on the controller and the environment.
| Nearline SAS | SATA | |
|---|---|---|
| Link speed | 12Gb/s on current drives | 6Gb/s |
| Ports | Dual port | Single port |
| Controller | Needs SAS | Works on SAS or SATA |
| Good fit | Servers and arrays with SAS backplanes | NAS units, simpler servers, workstations |
Large drives are often 512e or 4Kn. 512e works with nearly any controller; 4Kn needs controller and operating system support. Check the tray design of your server or NAS, as LFF caddies vary by maker and generation. For big arrays, consider RAID 6, which survives two drive failures, since rebuilding a large drive takes many hours.
For shared file storage see NAS and storage systems; for SFF bays see 2.5-inch drives, or return to all hard drives.
Drives are stocked in Doha and usually delivered across Qatar in one day. Refurbished units are tested before listing and fall under the ServerDove warranty. Business customers filling several servers or NAS units can ask for a bulk quotation at sales@serverdove.com.
They hold bulk data: backups, file shares, archives, virtual machine templates and surveillance footage. Because they spin at 7.2K RPM they are slower than 2.5-inch 10K drives or SSDs, but they give far more capacity per drive and per riyal, which is what those workloads need.
Yes. Server makers use large form factor, or LFF, for 3.5-inch bays and small form factor, or SFF, for 2.5-inch bays. An LFF server usually holds fewer drives than an SFF server of the same height, but each drive can be much larger.
With multi-terabyte drives, RAID 6 is the safer choice. It keeps working if two drives fail, which matters because a rebuild on a large drive takes many hours and puts extra load on the remaining disks. RAID 10 is an alternative when write speed matters more than usable capacity.
Generally yes, if the NAS supports the interface. Most NAS units take SATA drives, and some rack models also accept SAS. Check the NAS maker's compatibility list and the drive tray, or send us the NAS model and we will advise.
You can, but each drive only contributes the capacity of the smallest member of the array, so the extra space on larger drives sits unused. Mixing also makes spares harder to manage. Where possible, build each array from drives of the same capacity, interface, speed and sector format.
Yes. Send the capacity, interface and quantity you need, together with the server or NAS model, by WhatsApp on +974 5521 2108 or through the contact page. The team will check what can be sourced, confirm the drive suits your system and send a quotation.
