Dell PowerEdge 3.5" LFF HDD Tray Caddy 14G 15G 16G
Inclusive of VAT · Warranty included
DELL
Product Specification
| Drive Form Factor | 3.5" LFF |
| Drive Support | SAS and SATA HDD Drives |
| Compatibility | Dell 14th Gen Servers |
| Compatibility | Dell 15th Gen Servers |
| Compatibility | Dell 16th Gen Servers |
| Fits | R440 / R640 / R740 |
Refurbished · Tested

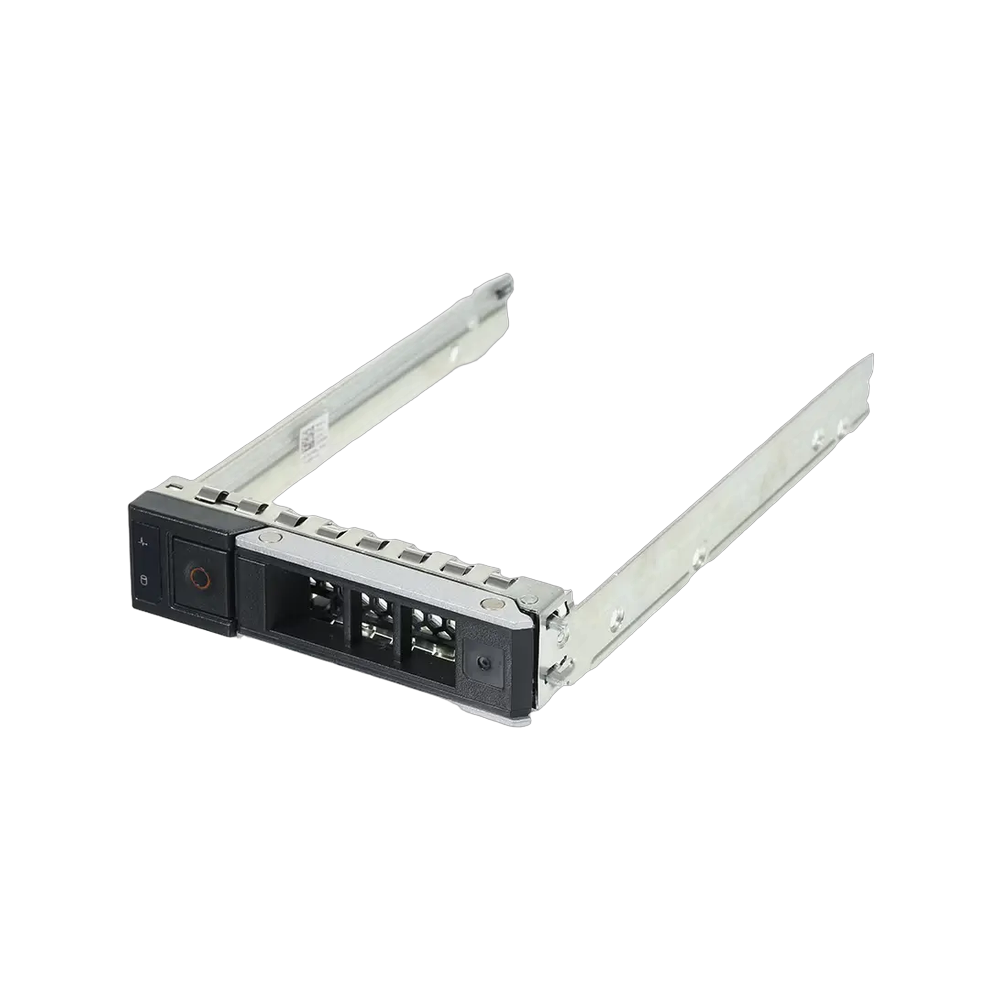

Dell PowerEdge 3.5 inch LFF hot-plug drive caddy for 14th, 15th and 16th generation servers, R440 to R760 and C6400.
This is Dell's current design 3.5 inch large form factor drive carrier, the hot-plug tray that holds a SAS or SATA hard drive in the LFF bays of Dell's 14th, 15th and 16th generation PowerEdge servers. Dell kept one LFF carrier across three generations, so it fits the R440, R640 and R740 as well as the R750, R7515, R760 and the C6400 series. It is refurbished and supplied empty. Buyers in Qatar need one for every bare LFF drive fitted to a current Dell server, and ServerDove keeps this tray in Doha stock in quantity so 8TB and 12TB drives and their caddies can be ordered together for R740 and R750 storage builds.
CADDY-DELL-14G-16G-LFFForm factor 3.5 inch LFFWill it fit my system?
| Server | Generation | Note |
|---|---|---|
| Dell PowerEdge R440, R640, R740 | 14th generation | LFF chassis variants |
| Dell PowerEdge R750, R7515 | 15th generation | LFF chassis variants |
| Dell PowerEdge R760 | 16th generation | LFF chassis variants |
| Dell PowerEdge C6400 series | Multi-node chassis | LFF bays |
Specification
The carrier fastens the drive with four side screws and has a release lever with a light pipe that shows the drive's activity and fault indicators on the front of the tray. It replaced the 13th generation LFF tray, which does not fit these bays, and a 2.5 inch drive goes into it only with Dell's adapter caddy. Buyers of ServerDove's R740 8 x 3.5 inch barebone, which ships with fillers but no caddies, need eight of these to populate it.
Installation
Fit the drive in the carrier with its connector to the rear and fasten the four side screws. Remove the bay filler, slide the carrier in with the lever open until it stops, and close the lever to seat the drive; the PERC detects it within seconds. Keep fillers in unused bays to maintain airflow across the drive cage.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comWhich Dell servers is this HDD tray caddy compatible with?
It is compatible with select Dell 14G, 15G, and 16G servers, including R440, R640, R740, R750, R7515, R760, and C6400 series systems.
What drive size does this tray support?
This is a 3.5" LFF drive tray caddy designed for supported large form factor server drives.
Does this caddy support both SAS and SATA drives?
Yes, it supports SAS and SATA HDD drives in compatible Dell server bays.
Is this a hot plug drive carrier?
Yes, this tray caddy is a hot plug drive carrier for supported Dell PowerEdge systems.
What condition is this item in?
The product notes state that it is refurbished and tested.
What does refurbished mean at ServerDove?
Off-lease or decommissioned enterprise hardware that we clean, test and reset in Doha. Every unit goes through POST, burn-in, memory and drive checks and a power-supply check, with firmware and BIOS returned to defaults and drives securely erased.
Can I ask about the exact unit before I buy?
Yes. Message us the SKU on WhatsApp and we will confirm the condition and configuration of the unit in stock, with photos if you want them.
How fast is delivery in Qatar?
Orders ship from Doha and arrive within one working day anywhere in Qatar. Delivery is free on orders over QAR 300.
Can I collect in person?
Yes, from Nuaija Office 7, Doha, usually within 24 hours of ordering. Choose pick-up at checkout and we will message you when it is ready.
What warranty is included?
A 6-month hardware warranty from the delivery date, covering the unit as supplied. If a part fails we repair or replace it. Full terms are on the warranty page.
What is your return policy?
If the unit arrives faulty or not as described, tell us and we will collect it and replace or refund it. Full terms are on the Refund Policy page.
Which payment methods do you accept?
Visa, Mastercard and American Express online. Bank transfer is available for company orders; contact us for details.
Do prices include VAT?
Yes, all prices shown include VAT, and every order ships with a tax invoice.
