HPE ProLiant DL360 Gen8 Servers

Chassis options

The DL360p Gen8 shipped in two front-bay layouts. The chassis cannot be converted from one to another after purchase, so choose by how many drives you need and what type.

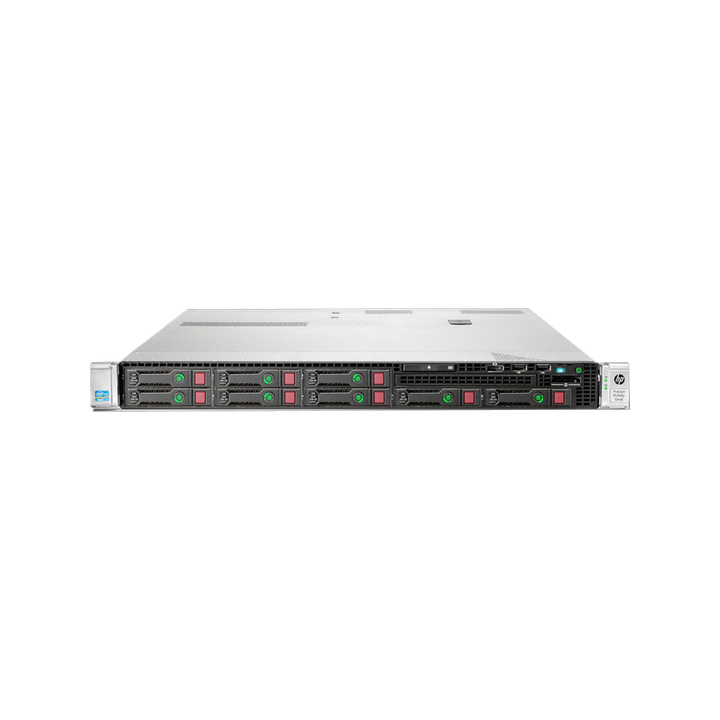

An 8 SFF unit can take a 2 SFF bay in the optical slot to reach 10. An internal SD card slot gives a hypervisor boot device. The DL360e Gen8, a lower-cost variant on E5-2400 processors, is a different platform; check the model label. [VERIFY: which variants you stock]

Processors

The DL360p Gen8 takes Intel Xeon E5-2600 (Sandy Bridge-EP, 2012) and E5-2600 v2 (Ivy Bridge-EP, 2013) processors in two LGA2011 sockets. v2 CPUs need System ROM P71 from 2013 or later and unlock 1866 MT/s memory. Both CPUs in a system must be identical. The list below covers the SKUs most commonly found in refurbished units; the platform supports up to 12 cores per socket. [VERIFY: which CPUs you stock for this model]

Xeon E5-2600 v2 (Ivy Bridge-EP)

Xeon E5-2600 (Sandy Bridge-EP)

The E5-2650 v2 to E5-2697 v2 range is the sweet spot on this platform: v2 silicon, 1866 MT/s memory support and 8 to 12 cores per socket at a very low price.

Memory

Twenty-four DDR3 DIMM slots, twelve per processor across four channels. Registered (RDIMM), unbuffered (UDIMM) and load-reduced (LRDIMM) modules are supported; types cannot be mixed. With one CPU installed, only the twelve slots on that side are usable. DDR3 is inexpensive on the used market, which is part of the appeal of this generation.

Populate all four channels per CPU in matched sets: 8, 16 or 24 DIMMs in total for a dual-CPU system. Three DIMMs per channel drops the speed to 1066 or 1333 MT/s.

Storage and RAID

Drive support depends on the cages fitted. All cages are hot-plug. HPE Smart Array controllers come in two forms: modular (fitted to a dedicated slot) and PCIe card. The controller options are:

Supported drive types are 6 Gb/s SAS and SATA in hard disk and SSD form; there is no NVMe support on this generation. Drives need HPE Gen8 or Gen9 Smart Carriers, which are the same family and easy to source.

Networking and expansion

Onboard networking comes from the FlexibleLOM slot, which ships with one of these adapters and can be swapped:

• HPE 331FLR quad-port 1 GbE
• HPE 530FLR-SFP+ dual-port 10 GbE SFP+
• HPE 533FLR-T dual-port 10 GbE BASE-T

Beyond the FlexibleLOM, the DL360p Gen8 offers two PCIe Gen3 slots (one full-height x16 and one low-profile x8), with a third available on some riser configurations. That is enough for a Fibre Channel HBA and a 10 GbE adapter. Full-height or double-width GPUs need the 2U DL380p Gen8.

Power supplies

Two hot-plug redundant Common Slot power supply bays, configured 1+1. Options are 460 W and 750 W in Platinum grade, plus a 1200 W unit. A dual-CPU system with a full memory load and a Smart Array generally sits within the 750 W envelope. Both supplies in a system should be the same rating.

Management

Every DL360p Gen8 includes iLO 4 with a dedicated management port. iLO Standard covers remote power, health monitoring and basic alerts; iLO Advanced adds the virtual console, virtual media and remote firmware updates. On current firmware the HTML5 console works in any modern browser without plugins, and a basic Redfish API is available. Advanced licences can be added to any unit, and Intelligent Provisioning handles bare-metal OS installs.

Physical specification

Supported operating systems

Windows Server 2012 R2 and 2016; Red Hat Enterprise Linux 6 and 7; SUSE Linux Enterprise Server 11 and 12; Ubuntu Server LTS releases; VMware ESXi 5.5, 6.0, 6.5 and 6.7; and Proxmox VE. Windows Server 2019 and later and ESXi 7.0 and later are not supported on this generation, and ESXi 7 will refuse to install on it. If you need a current hypervisor, buy the Gen9 or Gen10 equivalent instead.

Buying a refurbished DL360 Gen8 from ServerDove

Every unit we sell has been through full hardware diagnostics and a burn-in run: memory tested across every installed DIMM, controller and drive health verified, both power supplies load-tested, and the management controller reset and confirmed reachable. BIOS is returned to defaults and the firmware brought to a stable release. Units carry a six-month warranty and are held in Doha, so a replacement part is a short drive away rather than a shipment from overseas. [VERIFY: same testing and warranty wording as the R640 page]

Because the DL360p Gen8 is now past the manufacturer's mainstream support window, we are also the practical route to keeping one in service: we stock the caddies, DIMMs, controllers, rails and power supplies it needs, and our hardware support plans cover units the manufacturer no longer will. [VERIFY: parts stocked for this model]

If you need a specific configuration that is not listed, tell us the CPU, memory and drive layout you want and we will quote a build from stock. Custom configurations are usually ready within two working days. [VERIFY: lead time]
