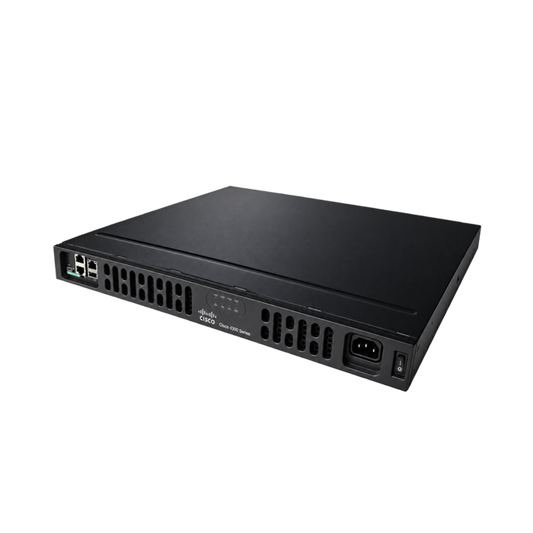

Sold outCisco ISR 4331 Router with PVDM4-32 & Voice License
Vendor:CISCORegular price QAR 1,950.00Regular price -
In StockCisco NIM-2FXS/4FXO Analog Voice Interface Module
Vendor:CISCORegular price QAR 650.00Regular price -
In StockCisco PVDM4-32 Voice DSP Module
Vendor:CISCORegular price QAR 240.00Regular price -

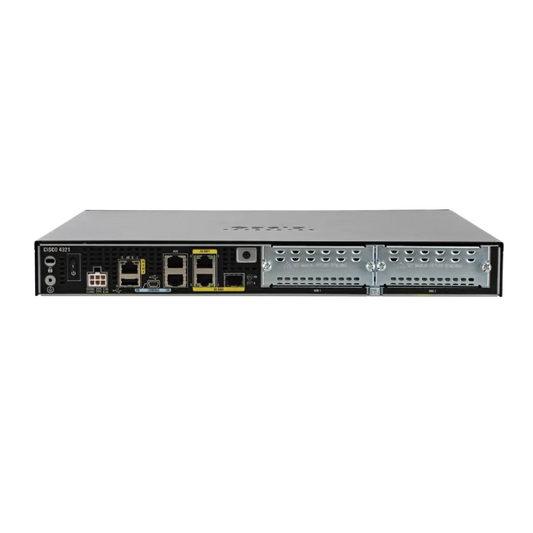

Sold outCisco ISR4321-V/K9 Voice Router with PVDM4-32 DSP Module
Vendor:ServerDoveRegular price QAR 1,800.00Regular price -
In StockCisco ISR4321-V/K9 2-Port Gigabit Voice CME Router
Vendor:CISCORegular price QAR 1,500.00Regular price
About Network Routers
Business routers for WAN, branch and voice gateway use, from Doha stock. The range centres on the Cisco ISR 4321 in standard and voice configurations, with NIM analogue voice and PVDM4 DSP modules, new and refurbished.
A router joins networks together: your office LAN to the internet, one branch to another, or internal voice calls to the telephone network. This range is built around the Cisco ISR 4321, an integrated services router with two onboard Gigabit ports, offered as a standard router and as a voice (CME) configuration. Alongside it are the modules that extend it: the NIM-2FXS/4FXO analogue voice interface and the PVDM4-32 DSP module.
It suits branch offices and small sites in Qatar that want WAN routing and on-site telephony in one device.
- Onboard ports
- Gigabit Ethernet
- Expansion
- Modular interface slots
- Voice
- FXS, FXO and DSP resources
- Condition
- New and refurbished
Router, firewall or Layer 3 switch?
| Device | Strength | Typical role |
|---|---|---|
| Router | WAN links, routing protocols, voice gateway functions | Branch edge, site-to-site links, analogue lines |
| Firewall | Traffic inspection, security policy, VPN | Internet edge where security is the priority |
| Layer 3 switch | Fast routing between internal VLANs | Core of a larger LAN |
Many sites use more than one. Security appliances are in network firewalls, and switching with routing is covered in managed switches.
Adding voice to an ISR router
Voice on an ISR depends on three things: call control software such as Cisco CME, PVDM DSP modules that process calls to analogue or digital lines, and interface modules that provide the physical ports. The NIM-2FXS/4FXO adds FXS ports for analogue handsets or fax, and FXO ports for analogue lines. Router modules are listed in network modules. Send your router model and software version before ordering so the team can confirm support.
Buying routers from ServerDove
Routers ship from Doha stock, typically reaching sites across Qatar in one day. Refurbished units are tested before they are listed and covered by the ServerDove warranty. Installation and base configuration are available as a service. For other router models or bulk orders, reach the team through the contact page.
Network Routers: frequently asked questions
What is the Cisco ISR 4321 used for?
The ISR 4321 is a branch router from Cisco's ISR 4000 series. It connects a site to the internet or to other offices through its onboard Gigabit ports, and it can run on-site call control in its voice configuration. Modules added to its slots give it extra functions such as analogue voice ports.
What is the difference between a router and a firewall?
A router's main job is to move traffic between networks and choose the path. A firewall's main job is to decide which traffic is allowed, inspecting it against a security policy. Routers often include basic filtering and firewalls can route, but at an internet edge where security matters most, a dedicated firewall is common.
What does a PVDM4 DSP module do?
A PVDM4 module adds digital signal processors to a Cisco voice router. These handle the conversion between IP voice and analogue or digital phone lines, and also transcoding and conferencing. Without enough DSP capacity, calls over those lines cannot be set up. Larger modules support more simultaneous calls.
Do Cisco routers need licences?
Many router features, including voice, security and some performance levels, are enabled by licences as well as by the hardware. What a unit is supplied with varies. Tell the team which functions you need and they will confirm what the listed router includes before you order.
Will this module work in my router?
Router modules depend on slot type, platform generation and software version, so ServerDove confirms against your equipment rather than assuming. Send the router model and the output of show version, and the team will check before you buy. If the module is for voice, mention the call control system as well.
Can ServerDove supply other router models?
Yes. Other business routers can be sourced on request. Describe the site, WAN connection and any voice needs, or name the model, by WhatsApp on +974 5521 2108 or email to sales@serverdove.com, and the team will quote. Business customers can also request a quotation for several sites at once.
