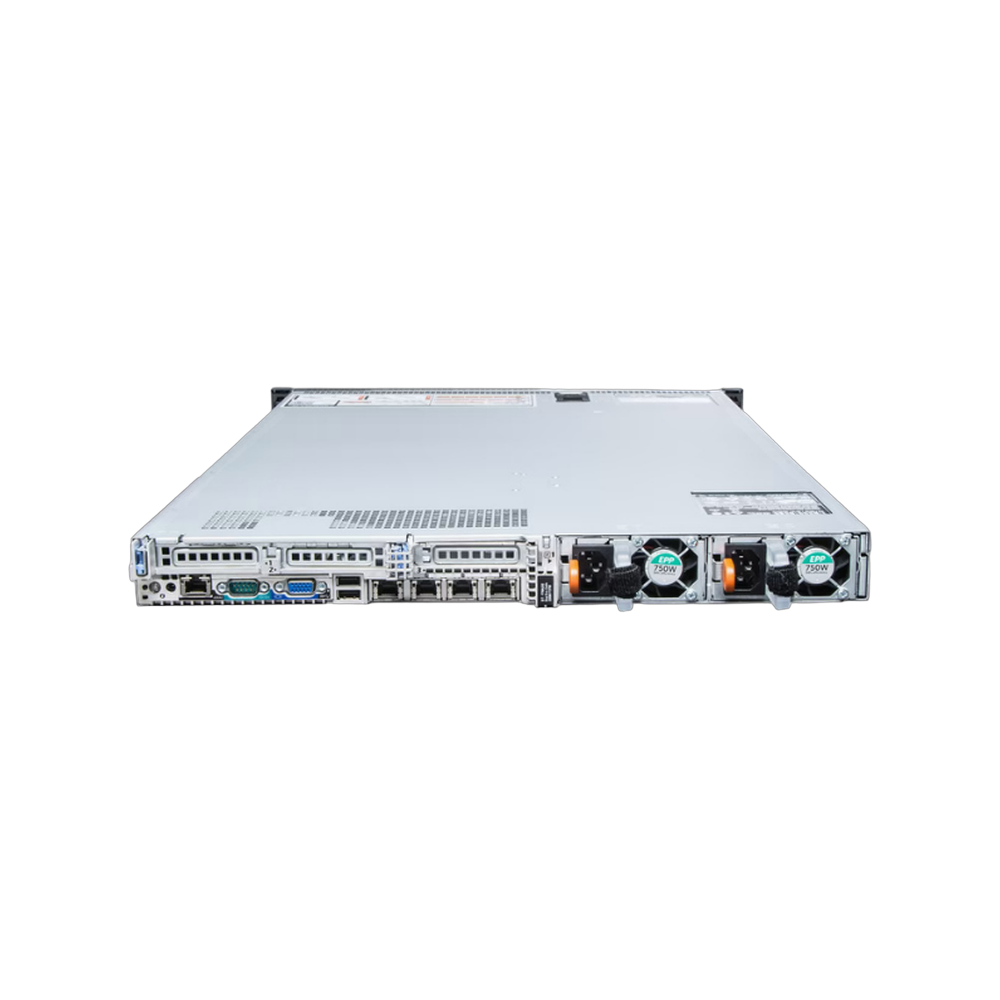

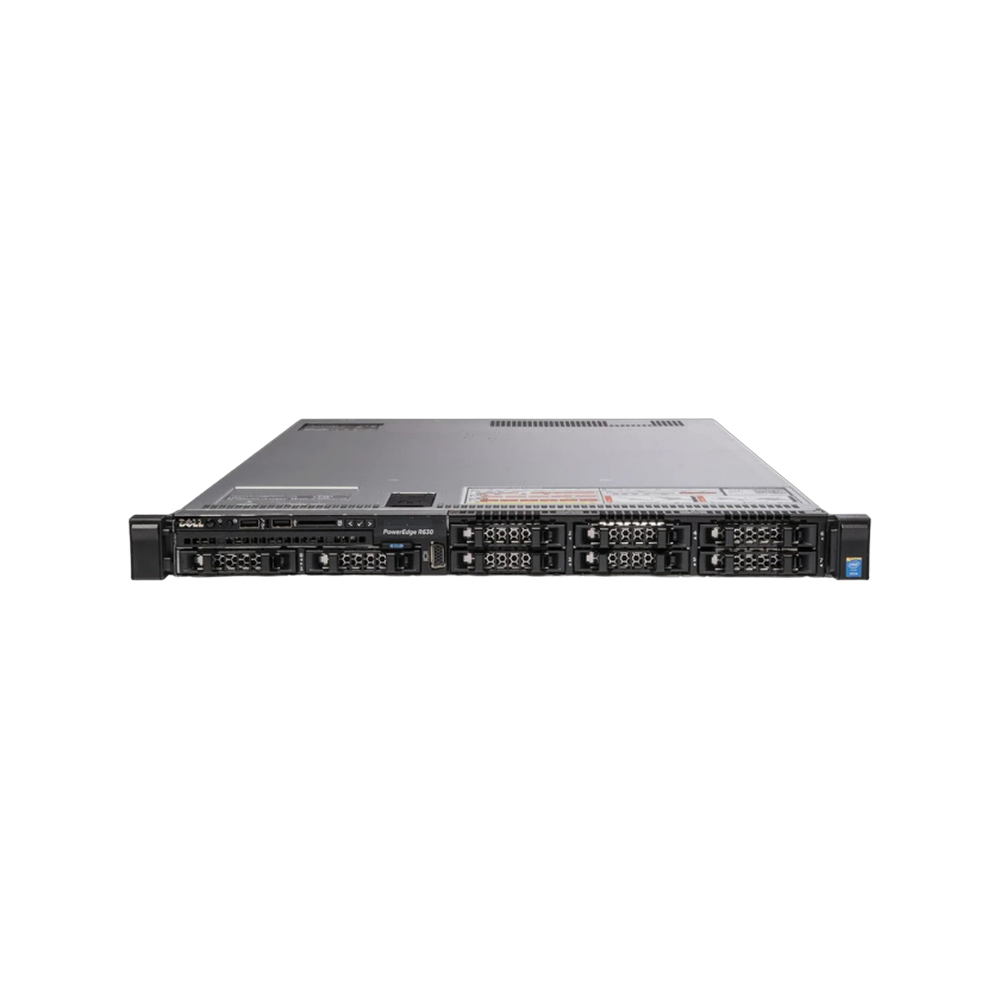

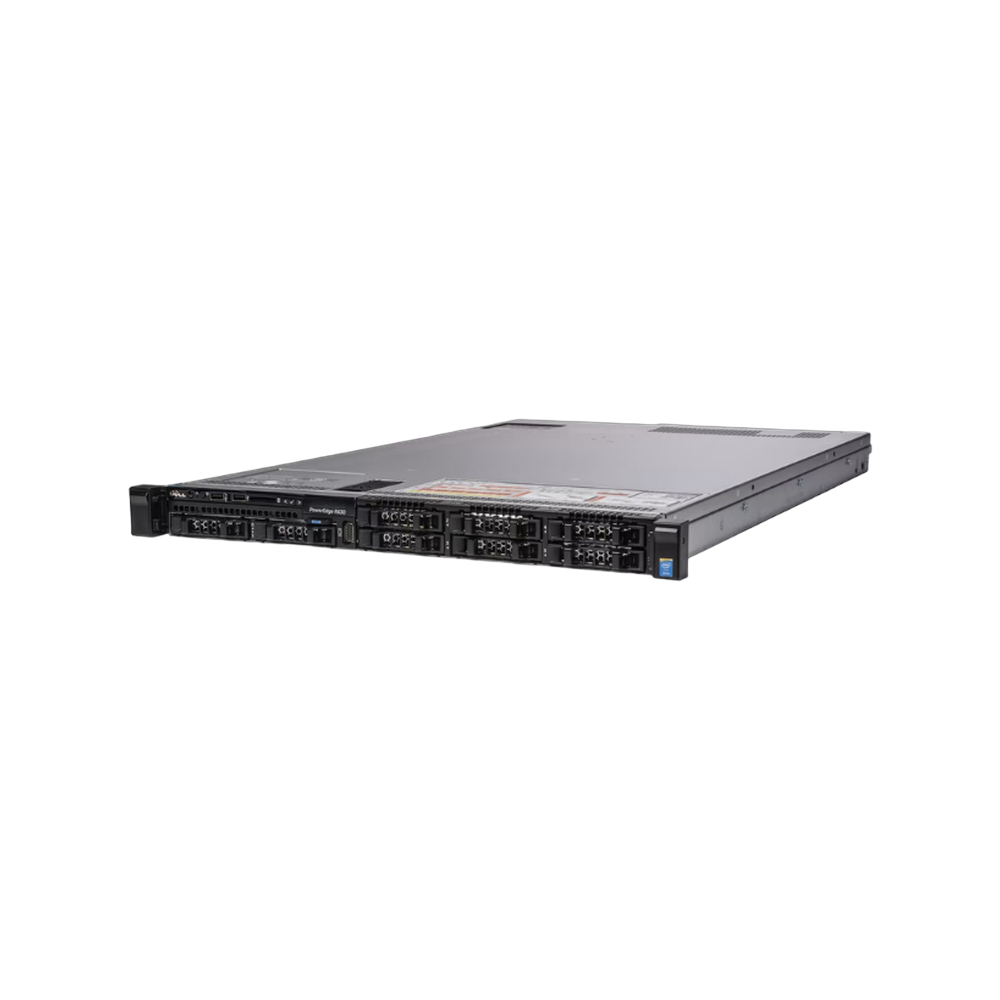

Dell PowerEdge R630 10SFF Barebone Server
Inclusive of VAT · Warranty included
ServerDove
Product Specification
| Brand | ServerDove |
| Model | Dell PowerEdge R630 10SFF |
| Form Factor | 1U Rack Server |
| Drive Bays | 10x 2.5" SFF Drive Bays |
| Processor Support | Dual Intel Xeon E5-2600 v3/v4 CPUs |
| CPU Socket | LGA2011-3 |
| Memory Support | DDR4 ECC Registered Memory |
| Expansion | PCIe 3.0 Expansion Slots |
| Power Supply | 2x 750W Hot Plug Power Supply |
| Included | 2x CPU Heatsinks |
| Remote Management | iDRAC8 |
| Configuration | Barebone Server No CPU No RAM No HDD |
About This Product
Overview
The Dell PowerEdge R630 10SFF Barebone Server is a compact 1U rack server platform built for users who need a flexible foundation for custom server builds. With support for dual Intel Xeon E5-2600 v3/v4 processors, DDR4 ECC Registered memory, and iDRAC8 remote management, it provides the core architecture needed for a wide range of business and data center workloads. The 10 x 2.5" SFF drive bay layout makes it well suited for storage-focused configurations where density and efficient rack use are important. Because this is a barebone server, it is intended for buyers who want to add their own CPUs, memory, and drives to match specific deployment needs.
Performance & Scalability
This PowerEdge R630 platform is designed to support balanced performance in a 1U footprint. Dual CPU support allows the system to be configured for higher processing capacity, while DDR4 ECC Registered memory support helps create a stable foundation for server applications that benefit from reliable memory handling. PCIe 3.0 expansion slots add flexibility for compatible add-in cards, making it easier to tailor the system for networking, storage, or other infrastructure requirements. The included dual 750W hot plug power supplies are an important feature for environments that value serviceability and redundant power options. With iDRAC8 remote management, administrators can work with the server more efficiently during setup, monitoring, and ongoing maintenance.
Storage Flexibility
The 10 x 2.5" SFF drive bay design gives this server strong storage flexibility within a compact chassis. That layout is useful for deployments that need multiple small-form-factor drives, whether the goal is capacity, performance, or a mix of both depending on the chosen configuration. Since the system is sold as a barebone server with no CPU, no RAM, and no HDD, it gives integrators and IT teams the freedom to select the storage and internal components that best fit their environment. This makes the R630 a practical option for custom builds where drive selection and system layout matter.
Why Choose This Product?
This server is a strong choice for buyers looking for a proven rackmount platform that can be configured to meet specific requirements. Its combination of dual processor support, DDR4 ECC Registered memory compatibility, PCIe 3.0 expansion, and iDRAC8 remote management creates a versatile base for many professional IT uses. The 1U form factor helps conserve rack space, while the 10-bay SFF design supports dense storage planning. For organizations that prefer to build around their own hardware choices, the barebone configuration offers a straightforward starting point with the essential chassis, cooling, and power components already in place.
About this barebone
Dell PowerEdge R630 10SFF barebone server with dual 750W power supplies and heatsinks fitted, a refurbished 1U Xeon E5-2600 v3 and v4 platform. Tested and stocked in Doha, delivered across Qatar within a day.
The PowerEdge R630 is Dell's 13th generation 1U rack server, the direct predecessor of the R640. This 10SFF chassis has ten 2.5 inch hot-plug bays across the front and takes two Intel Xeon E5-2600 v3 or v4 processors in LGA2011-3 sockets, with 24 DIMM slots for DDR4 ECC Registered memory and iDRAC8 for remote management. It ships as a barebone with no CPU, no RAM and no drives, but unlike a bare chassis it comes with two 750W hot-plug power supplies and both CPU heatsinks already fitted.
That makes it a practical base for buyers in Qatar who hold E5-2600 v3 or v4 processors and DDR4 RDIMMs from retired servers and want to put them back to work. A refurbished R630 from ServerDove's Doha stock is a low cost way to add a dual socket 1U node for virtualisation, web serving or a lab, on a platform whose parts are still plentiful.
- Form factor
- 1U rack
- Drive bays
- 10 x 2.5 inch
- Power
- 2 x 750W fitted
- Management
- iDRAC8
Chassis and platform
The R630 was Dell's mainstream 1U server for the E5-2600 v3 and v4 era, and it remains common in racks across the region. Its 24 DIMM slots and dual socket layout give it the same memory ceiling as the 2U R730, in a chassis built for density rather than expansion.
| Model | Dell PowerEdge R630 10SFF |
| Generation | 13th generation PowerEdge |
| Form factor | 1U rack server |
| Drive bays | 10 x 2.5 inch SFF, hot-plug |
| Processor support | 2 x Intel Xeon E5-2600 v3 or v4, LGA2011-3 |
| Memory support | DDR4 ECC Registered, 24 DIMM slots |
| Expansion | PCIe 3.0 slots |
| Power supplies | 2 x 750W hot-plug, fitted |
| Heatsinks | 2 x CPU heatsinks, fitted |
| Remote management | iDRAC8 |
| Supplied configuration | No CPU, no RAM, no HDD |
What you need to add
With power supplies and heatsinks already in place, the shopping list for this unit is shorter than for most barebones. Processors, memory and drives complete the build.
- One or two Intel Xeon E5-2600 v3 or v4 processors; v4 parts need a BIOS that supports them, which any current R630 firmware does
- DDR4 ECC Registered DIMMs, in matched sets of four per processor to use all four memory channels
- 2.5 inch SAS or SATA drives in Dell 13th generation hot-plug caddies
- A PERC RAID controller or HBA, unless the chassis already carries one
- Additional network cards if two onboard ports are not enough
Mixing v3 and v4 processors in the same server is not supported, so buy a matched pair. Memory speed follows the processor: v4 CPUs run RDIMMs at up to 2400 MT/s, v3 CPUs at up to 2133 MT/s.
Part numbers and identification
The model name and chassis variant identify this unit. The ten bay layout is written both as "10SFF" and "10 SFF" in Dell documentation and in buyer searches.
| SKU | SRV-DELL-R630-10SFF-BARE |
| Model | Dell PowerEdge R630 |
| Alias | R630 |
| Chassis variant | 10SFF |
| Variant spelling | 10 SFF |
What is included

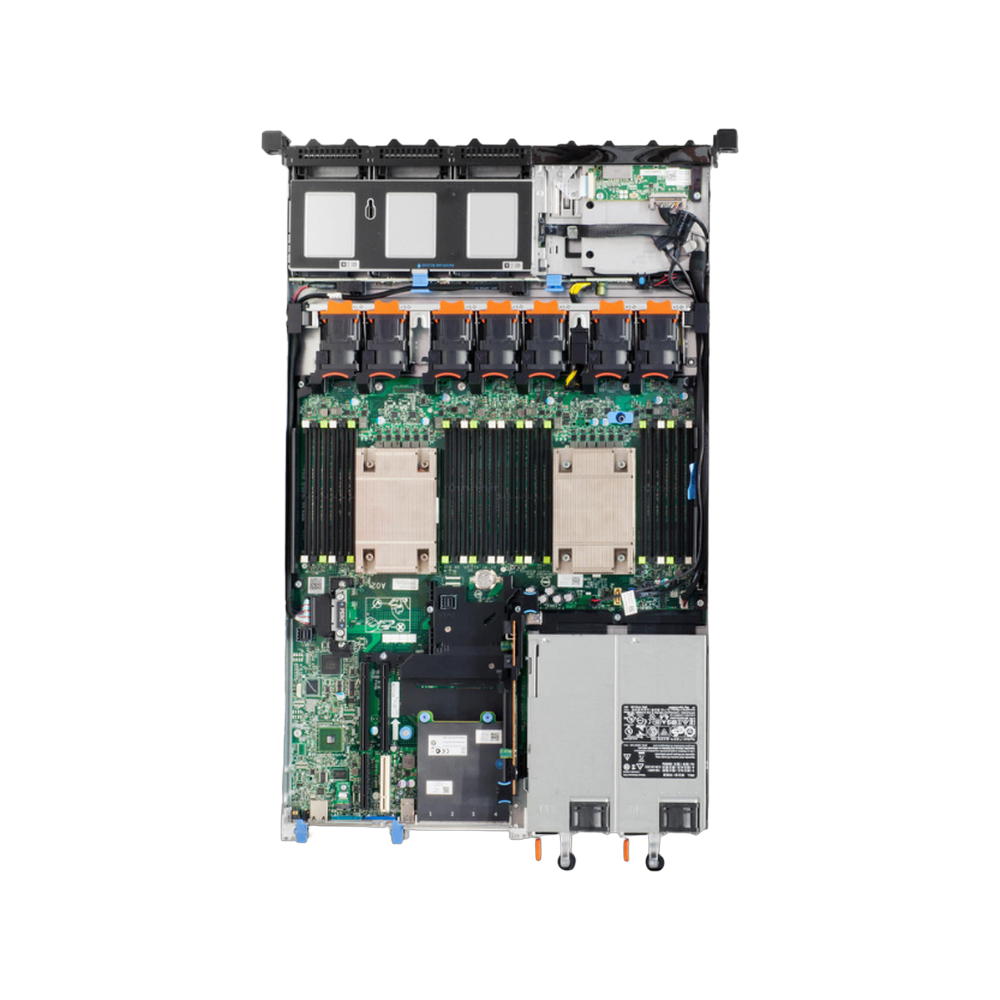

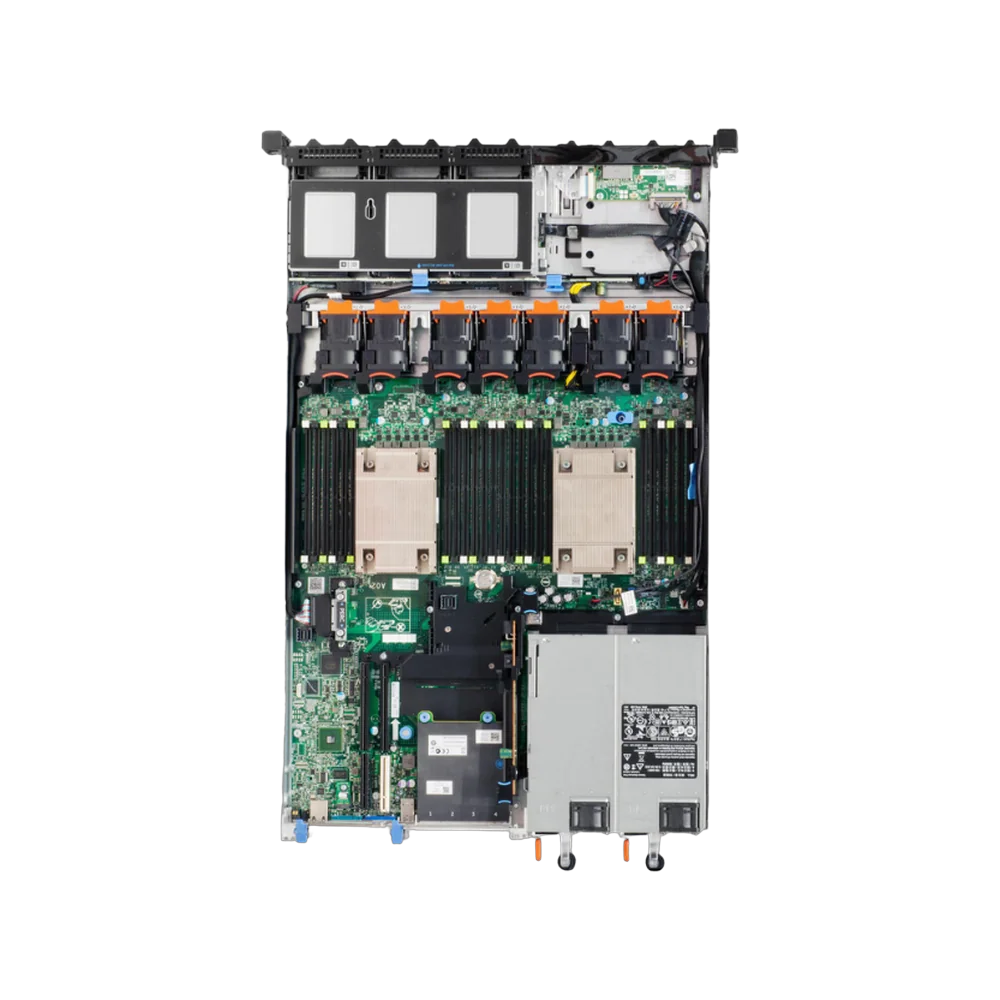

- Dell PowerEdge R630 10SFF chassis with system board, backplane and fans
- 2 x 750W hot-plug power supplies
- 2 x CPU heatsinks
No processors, memory, drives or drive caddies are included.
Compatibility
The R630 uses the same processor, memory and drive parts as the rest of Dell's 13th generation servers, which keeps spares simple if you also run an R730 or T630.
| Processors | Intel Xeon E5-2600 v3 and v4, LGA2011-3 |
| Memory | DDR4 ECC Registered DIMMs, 288 pin, 2133 or 2400 MT/s |
| Drives | 2.5 inch SAS or SATA in 13th generation hot-plug caddies |
| Rails | Dell 1U sliding rail kit for the R630 |
| Power supplies | Dell 750W hot-plug units of the same rating as the fitted pair |
In the box
- The server as described in the specification
- All installed components listed in the specification
- Power cable(s) for each fitted power supply
- Caddies for each fitted drive
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Not included
- Rail kit unless listed in the specification
- Front bezel unless listed
- Operating system or software licences
- Drives, memory or cards not listed in the specification
If you need rails, a bezel or additional drives, ask on WhatsApp before ordering and we will quote them with the unit.
Frequently Asked Questions
What comes included with this Dell PowerEdge R630 barebone server?
It includes the server chassis, 10 SFF drive bay platform, dual 750W hot plug power supplies, CPU heatsinks, and iDRAC8 support.
Does this server include processors, memory, or drives?
No. This is a barebone server and does not include CPU, RAM, or HDD.
What type of processors does the R630 support?
This system supports dual Intel Xeon E5-2600 v3/v4 CPUs with an LGA2011-3 socket.
How many drives can be installed in this server?
The chassis provides 10 x 2.5" SFF drive bays for flexible storage configurations.
Is remote management available on this server?
Yes, the server includes iDRAC8 remote management for easier administration and monitoring.
