Dell PowerEdge R640 8 SFF Barebone Server
Inclusive of VAT · Warranty included
DELL
Product Specification
| Form Factor | 1U Rack Server |
| Processor Count | Up to 2 |
| Cores per CPU | Up to 28 (processor dependent) |
| Memory Installed | None |
| Storage | None installed |
| Management | iDRAC9 with Lifecycle Controller |
Refurbished · Tested
Dell PowerEdge R640 8SFF barebone, a refurbished 1U dual-socket LGA3647 rack server chassis for custom Xeon Scalable builds.

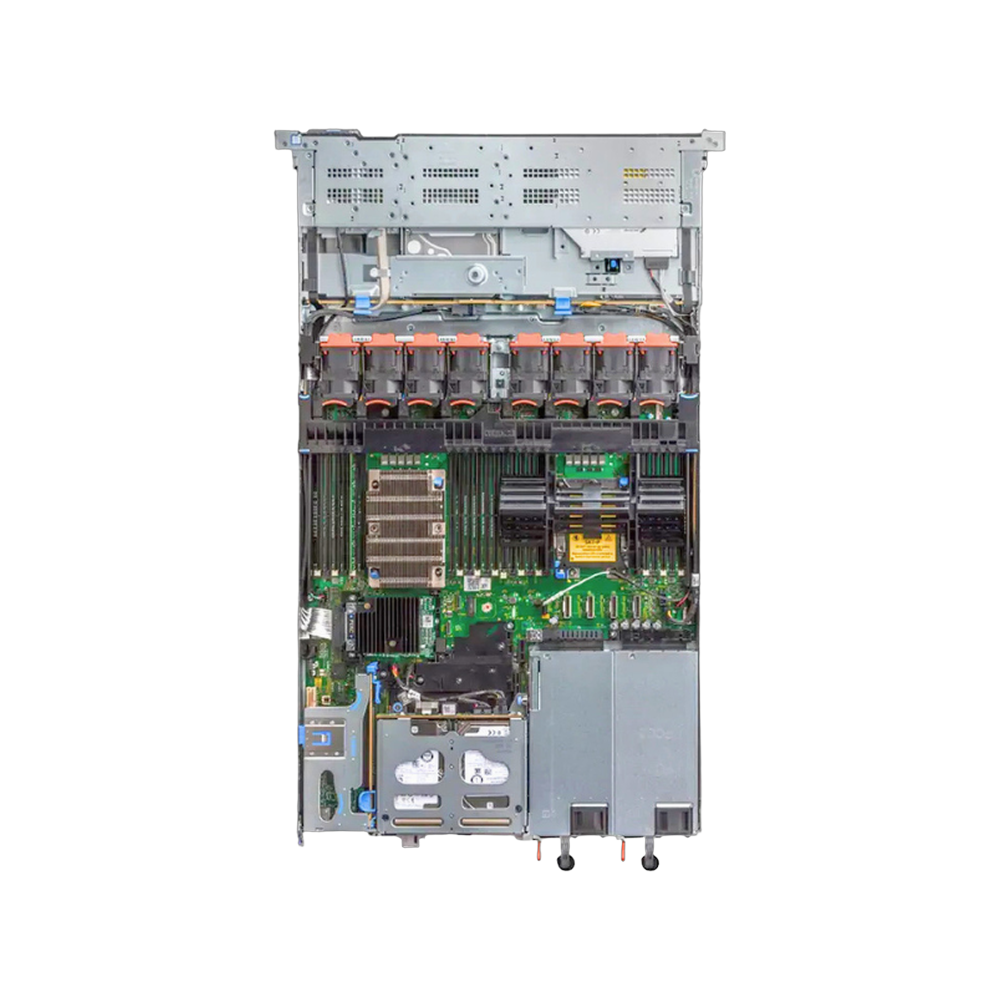

The Dell PowerEdge R640 is Dell's 14th generation (14G) dual-socket 1U rack server, launched in 2017 for Intel Xeon Scalable processors. This is the 8 SFF chassis, also written 8SFF, under our SKU SRV-DELL-R640-8SFF-BARE. It has eight 2.5 inch hot-plug SAS and SATA bays at the front, two LGA3647 sockets, 24 DDR4 DIMM slots, up to three PCIe 3.0 slots and iDRAC9 with Lifecycle Controller. It is supplied as a barebone, with no processors, memory or drives fitted. IT teams and system builders in Doha and across Qatar choose a barebone Dell R640 when they already hold Xeon Scalable CPUs and DDR4 RDIMMs to redeploy, or when they want one fleet standard rather than an inherited build. Typical roles are VMware ESXi, Hyper-V and Proxmox hosts, web and application tiers, and software-defined storage nodes.
SRV-DELL-R640-8SFF-BAREForm factor 1U rackChassis and platform
The R640 was built in three front layouts: 4 x 3.5 inch, 8 x 2.5 inch and 10 x 2.5 inch. This is the 8 bay SAS and SATA version. Memory speed and capacity depend on the processors you fit, so the figures below are platform maximums.
What you need to add
Plan the build around the processors first, because they set memory speed and usable DIMM slots. With one CPU only 12 slots are active. Second generation Xeon Scalable parts need a recent BIOS, so update firmware through Lifecycle Controller before swapping in Cascade Lake CPUs.
- One or two Intel Xeon Scalable processors (Skylake-SP or Cascade Lake), each with an R640 1U heatsink
- DDR4 ECC registered memory, RDIMM or LRDIMM
- 2.5 inch SAS or SATA drives in Dell 14G hot-plug carriers
- A PERC H330, H730P, H740P or HBA330 to run the front bays
- A boot device: BOSS card, dual SD module or a front-bay drive
- A network daughter card for onboard ports
- Two matched hot-plug power supplies of the same wattage for redundancy
Compatibility
The R640 shares its controllers, carriers and memory types with other Dell 14G servers, so spares from an R740 fleet often fit.
| Component | Fits this chassis |
|---|---|
| Processors | Xeon Scalable 1st and 2nd generation, LGA3647 |
| Memory | DDR4 ECC RDIMM or LRDIMM |
| Drives | 2.5 inch SAS and SATA HDD and SSD |
| Drive carriers | Dell 14G 2.5 inch hot-plug |
| Storage controllers | PERC H330, H730P, H740P, HBA330 |
| Boot devices | BOSS card, dual SD module |
Do not mix RDIMMs and LRDIMMs in one system, and populate memory evenly across both processors. The 8 bay layout has no front NVMe; use a PCIe NVMe card or BOSS instead. Earlier 13th generation drive carriers are a different design and do not fit the 14G bays.
Part numbers and identification
Condition & testing
- Full hardware diagnostics and burn-in
- Memory, storage and power supplies verified
- Management controller reset, BIOS returned to defaults
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this server
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
If you need rails, a bezel or additional drives, ask on WhatsApp before ordering and we will quote them with the unit.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comWhat processors are compatible with the Dell PowerEdge R640?
The R640 uses two LGA3647 sockets and supports Intel Xeon Scalable processors from the first generation (Skylake-SP) and the second generation (Cascade Lake). That covers Bronze, Silver, Gold and Platinum models with up to 28 cores per CPU. Second-generation support depends on a suitably recent BIOS. This barebone chassis ships without processors, so you will need to supply one or two CPUs along with compatible heatsinks.
What memory does the R640 use and how many slots does it have?
The R640 has 24 DIMM slots and uses DDR4 ECC registered memory, either RDIMMs or LRDIMMs. Twelve slots are tied to each processor, so all 24 are only usable with two CPUs installed. Supported memory speed depends on the processor: second-generation Xeon Scalable CPUs support faster DDR4 than first-generation parts. Avoid mixing RDIMMs and LRDIMMs in the same system.
Does the 8 SFF R640 support NVMe drives?
On the R640, front-bay NVMe support is tied to specific backplane configurations, most notably the 10-bay 2.5-inch chassis. The 8-bay SFF layout is the SAS/SATA configuration, designed for 2.5-inch SAS and SATA hard drives and SSDs. If you need NVMe storage in this chassis, a PCIe add-in card or Dell's BOSS boot device are the usual alternatives to NVMe front bays.
What do I need to add to make this barebone R640 work?
The listing specifies no CPU, no RAM and no drives. As a minimum you will need at least one Xeon Scalable processor with heatsink, DDR4 ECC registered memory, a boot device and storage in Dell 14G drive carriers. Depending on your use, you may also need a PERC controller or HBA, a network daughter card, rails and power supplies. Check the listing photos and details to confirm what is fitted.
What RAID controllers work in the PowerEdge R640?
The R640 uses Dell's 14th-generation modular storage controllers, which sit in a dedicated internal slot. Common options include the PERC H330 for basic RAID, the PERC H730P and H740P for cached hardware RAID, and the HBA330 for pass-through use with ZFS, vSAN or Ceph. Using a modular controller keeps the PCIe expansion slots free for networking or other add-in cards.
What is the difference between the R640 and the R740?
Both are Dell 14th-generation dual-socket servers using LGA3647 Xeon Scalable processors, 24 DDR4 DIMM slots and iDRAC9. The R640 is a 1U chassis built for compute density, with fewer drive bays and up to three PCIe slots. The R740 is a 2U server with more drive bays and more PCIe expansion, including support for full-height and GPU cards. Choose the R640 when rack space matters more than expansion.
What remote management does the R640 have?
The R640 includes iDRAC9 (integrated Dell Remote Access Controller 9) with Lifecycle Controller. iDRAC9 provides out-of-band access for monitoring hardware health, updating firmware, deploying operating systems and controlling power, independently of the host OS. Features such as the virtual console and virtual media depend on the iDRAC licence level enabled on the system.
Which operating systems can run on the PowerEdge R640?
The R640 is certified for a broad range of enterprise operating systems and hypervisors. These include Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Ubuntu Server, and it is widely used with Proxmox VE. Exact version support depends on the processor generation and controllers installed, so check Dell's support matrix for the specific release you plan to deploy.
