DELL Precision T5820 Workstation Barebone
Inclusive of VAT · Warranty included
DELL
Product Specification
| Form Factor | Tower Workstation Chassis |
| CPU Support | Intel Xeon W / Core X Series |
| CPU Socket | LGA2066 |
| Memory Support | DDR4 ECC / Non-ECC |
| Expansion Slots | PCIe 3.0 |
| Storage Support | NVMe / SATA SSD and HDD |
Refurbished · Tested

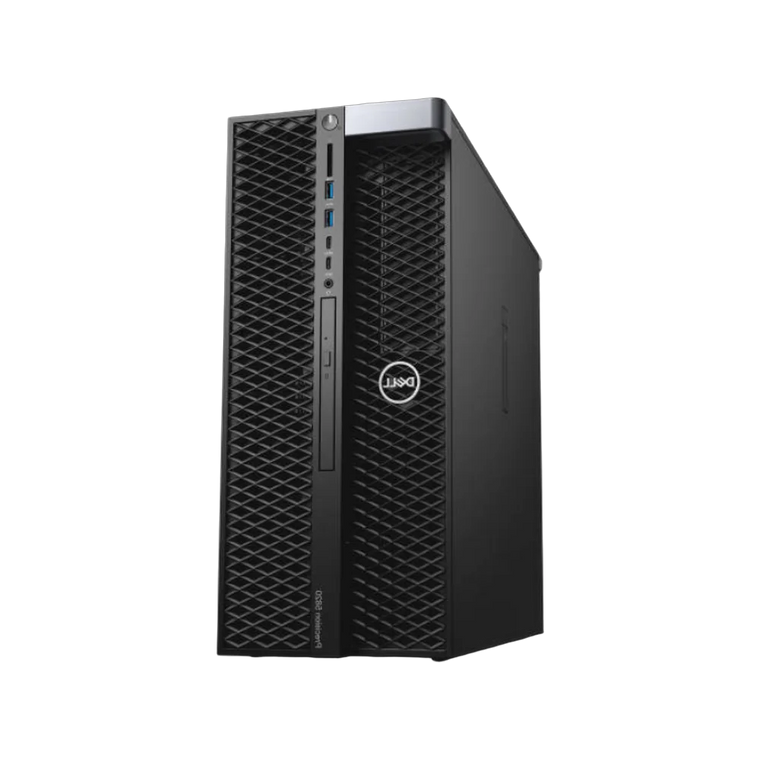

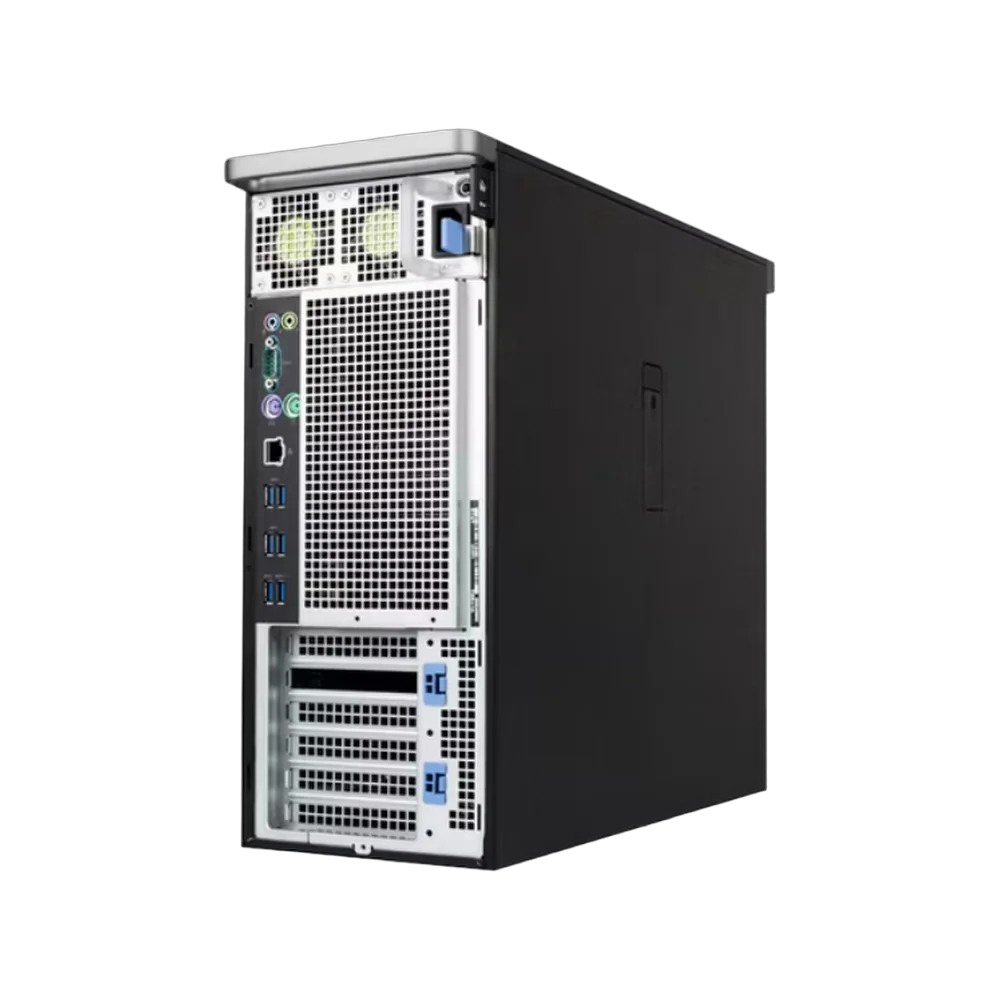

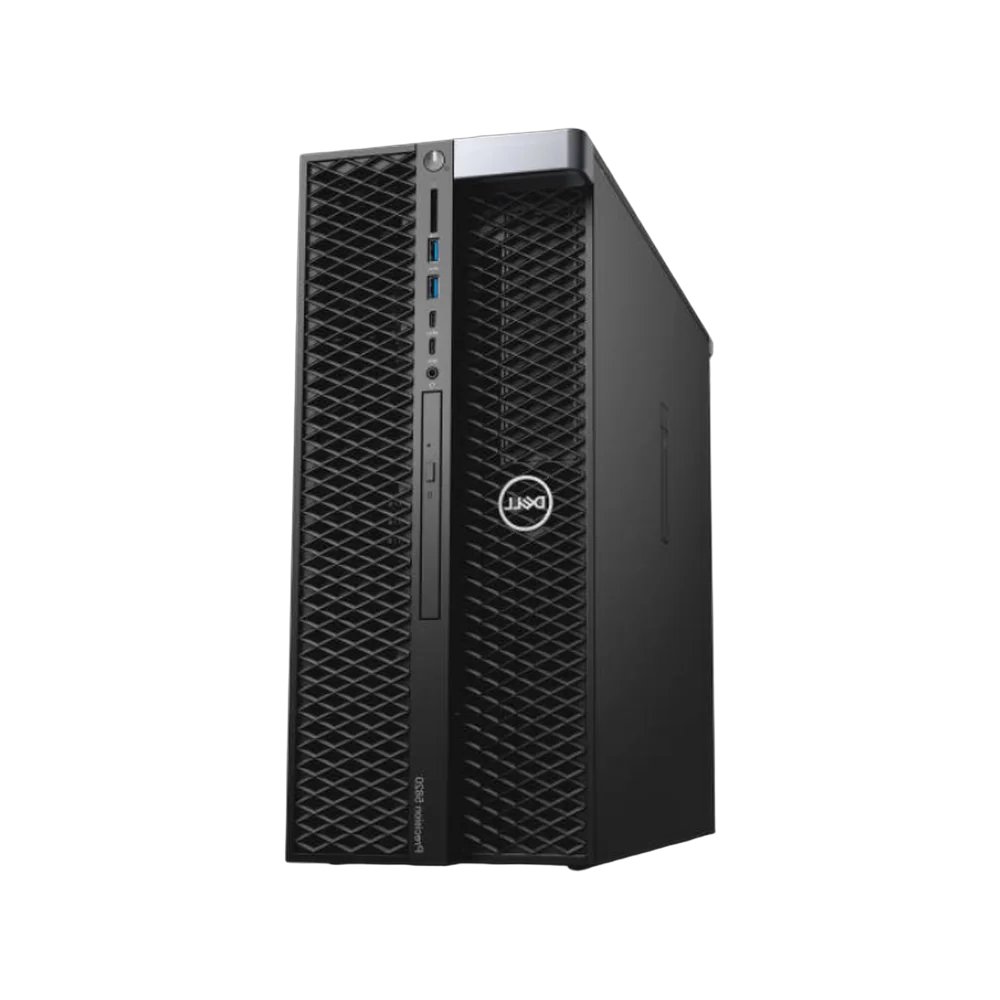

Dell Precision T5820 workstation barebone, a single-socket LGA2066 tower chassis for custom Xeon W and Core X builds.
This is a refurbished Dell Precision T5820, SKU WS-DELL-T5820-BARE, supplied as a barebone tower workstation with no CPU, no RAM and no storage fitted. The Precision T5820 is the single-socket tower in Dell's Precision 5000 range, introduced in 2017 and built around the LGA2066 socket. It takes one Intel Xeon W or Core X Series processor, DDR4 memory in ECC or non-ECC form, PCIe 3.0 add-in cards, and NVMe or SATA drives. Buyers in Qatar usually choose this barebone for one of two reasons: they already hold compatible LGA2066 processors, DDR4 modules and drives from retired machines, or they want to specify each component for a CAD, rendering or engineering workload rather than accept a fixed build. Collecting from Doha lets an integrator assemble and image the system locally before it goes to the desk.
WS-DELL-T5820-BAREForm factor TowerChassis and platform
The T5820 is a single-processor platform with quad-channel DDR4 memory. ECC operation depends on the processor: Xeon W enables ECC, while Core X Series processors run non-ECC memory.
What you need to add
The chassis arrives empty of the core components, so plan the build before ordering parts. Match the processor and memory together, because the processor family decides whether ECC is available.
- One LGA2066 processor: Intel Xeon W for ECC memory and workstation certification, or Core X Series for non-ECC builds.
- DDR4 memory: ECC modules with a Xeon W processor, non-ECC modules with a Core X processor. Populate in sets of four to use all memory channels.
- Boot and data storage: an NVMe SSD for the operating system and active projects, plus SATA SSDs or HDDs for capacity.
- A graphics card for display output, chosen to suit the PCIe 3.0 slots and the power available in the chassis.
- An operating system licence and drivers for the components you fit.
Compatibility
Processors must be LGA2066 parts from the Intel Xeon W or Core X Series families. Processors for other sockets, including LGA2011 and LGA3647, will not fit. Memory must be DDR4; DDR3 and DDR5 modules are keyed differently and will not seat. Do not mix ECC and non-ECC modules in one system, and keep all modules the same capacity and speed for stable quad-channel operation. Storage can be NVMe or SATA, so drives taken from earlier workstations can usually be reused, and PCIe 3.0 cards fit the expansion slots, with PCIe 4.0 cards running at PCIe 3.0 speed. Update the BIOS to a current Dell release before installing a newer processor.
Part numbers and identification
Condition & testing
- Full hardware diagnostics and burn-in
- Memory, storage and power supplies verified
- Management controller reset, BIOS returned to defaults
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this server
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
If you need rails, a bezel or additional drives, ask on WhatsApp before ordering and we will quote them with the unit.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comDoes the DELL Precision T5820 come with a CPU, RAM, or storage?
No. This barebone workstation is listed with no CPU, no RAM, and no storage.
Which processors are supported by this workstation chassis?
It supports Intel Xeon W and Core X Series processors with an LGA2066 socket.
What type of memory does the Precision T5820 support?
This platform supports DDR4 ECC and non-ECC memory.
What storage options can be used in this system?
The chassis supports NVMe and SATA SSDs as well as HDDs.
Is this a good choice for a custom workstation build?
Yes. It is designed as a professional workstation platform for custom configurations and component reuse.
