Dell Precision T7810 T7910 CPU Heatsink Fan Module 6G1DT
Inclusive of VAT · Warranty included
DELL
Product Specification
| Dell Part Number | 6G1DT |
| Dell DP/N | 06G1DT |
| Compatibility | Dell Precision T7810 |
| Compatibility | Dell Precision T7910 |
| Application | Workstation CPU Cooling Assembly |
| CPU Support | Intel Xeon E5 CPUs |
Refurbished · Tested

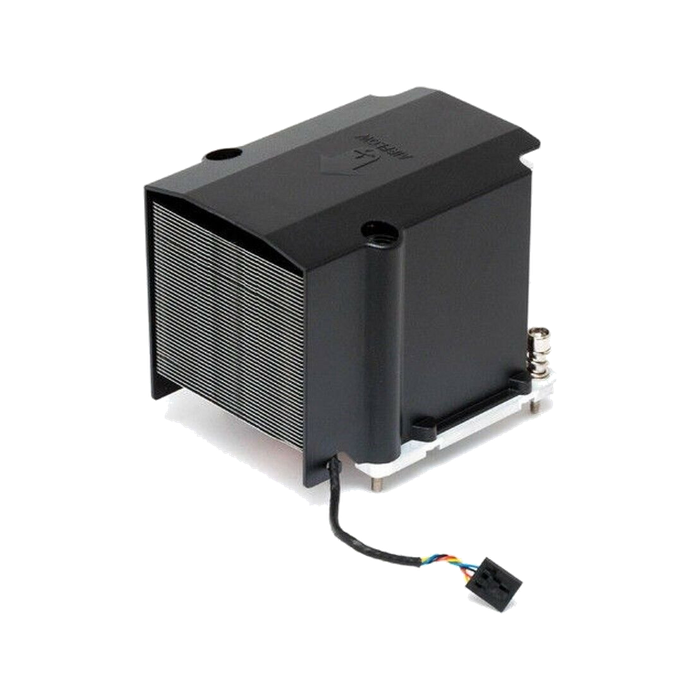

Dell 6G1DT CPU heatsink and fan module, Dell part 06G1DT, the OEM cooling assembly for Precision T7810 and T7910 workstations.
Dell part 6G1DT, DP/N 06G1DT, is the processor heatsink and fan assembly for the Precision T7810 and T7910, the Xeon E5 v3 and v4 generation of Dell's dual socket tower workstations, cooling Intel Xeon E5 processors. The module combines a finned heatsink with its own shrouded fan, and it is needed both to replace a failed fan and to populate the second socket of a workstation bought with one processor. It is refurbished. Buyers in Qatar order 6G1DT with a second processor when upgrading a T7810 or T7910 to two sockets, or to cure a fan failure warning, and ServerDove keeps it in Doha stock alongside its T7910 workstations and barebones.
HS-DELL-T7810-T7910-6G1DTWill it fit my system?
| Workstation | Generation | Note |
|---|---|---|
| Dell Precision T7810 | Xeon E5 v3 and v4, dual socket tower | Named as compatible |
| Dell Precision T7910 | Xeon E5 v3 and v4, dual socket tower | Named as compatible |
The fan is the wearing part: after years of running, its bearing noise rises and the workstation's fan speed climbs to compensate, which is the early sign that the module should be changed before it fails outright.
Specification
The T7810 and T7910 take Xeon E5 v3 and v4 processors up to the 160W workstation parts, and this module is rated for them, with the fan speed controlled from the system board according to processor temperature. Server heatsinks for the same socket do not fit, since the Precision towers use their own mounting and airflow. Buyers of ServerDove's T7910 workstation, which carries this module, can obtain a spare from the same stock.
Installation
Unplug the workstation and open the side panel. Disconnect the fan cable, loosen the captive screws of the old module in a cross pattern and lift it away. Clean the processor surface, apply fresh thermal compound, seat the 6G1DT squarely and tighten its screws evenly, then connect the fan cable to the processor fan header. Power on and confirm the fan runs and no fan error is shown at start-up.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comWhich Dell systems is this heatsink fan module compatible with?
It is compatible with Dell Precision T7810 and T7910 workstations.
What processor family does this cooling assembly support?
This module supports Intel Xeon E5 CPUs in compatible systems.
What Dell part numbers identify this item?
The part is identified as Dell Part Number 6G1DT and Dell DP/N 06G1DT.
Is this an original Dell replacement part?
Yes, it is listed as an OEM Dell replacement part.
What type of product is this?
This is a CPU heatsink fan module used as a workstation CPU cooling assembly.
