HP 146GB 15K RPM SAS SFF HDD w/ HP Caddy
Price includes warranty
ServerDove
Product Specification
| Capacity | 146GB |
| Drive Type | Hard disk drive (HDD) |
| Interface | SAS |
| Interface Speed | 6Gb/s |
| Form Factor | 2.5-inch SFF |
| Rotational Speed | 15,000 rpm |
Refurbished Β· Tested

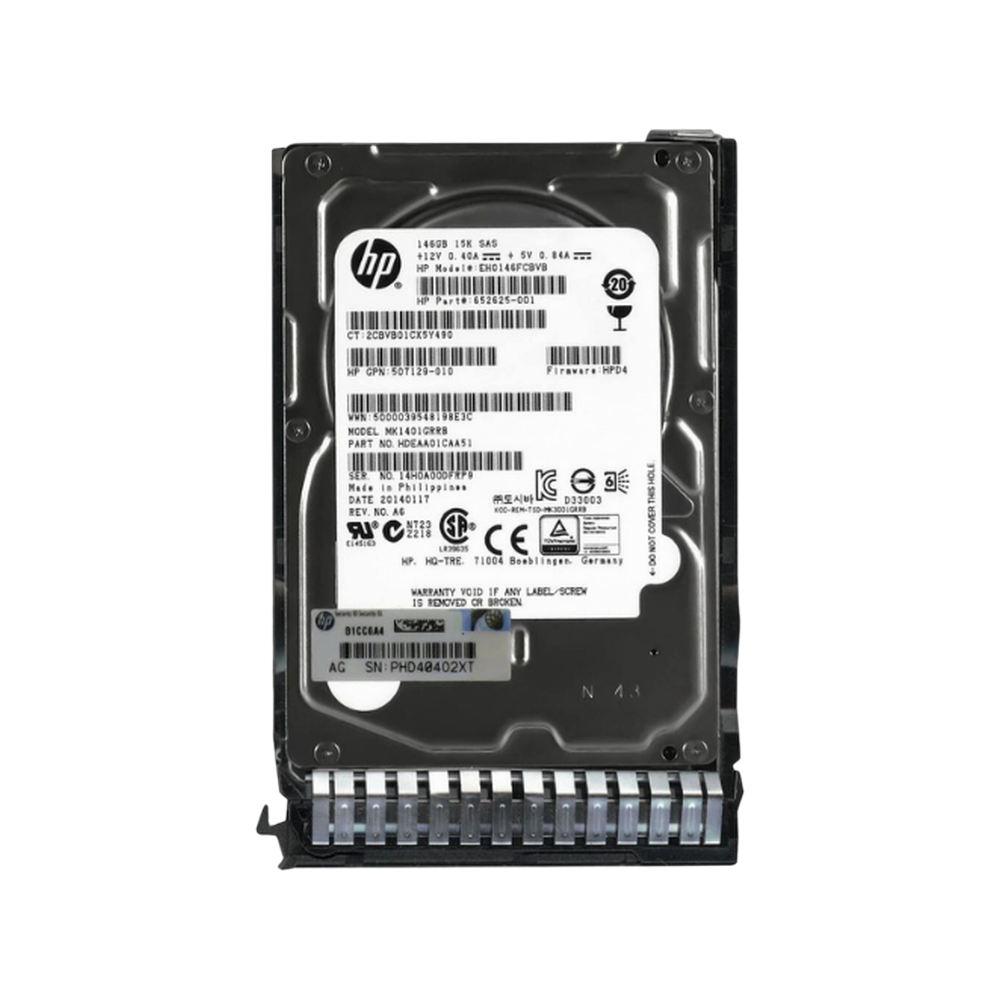

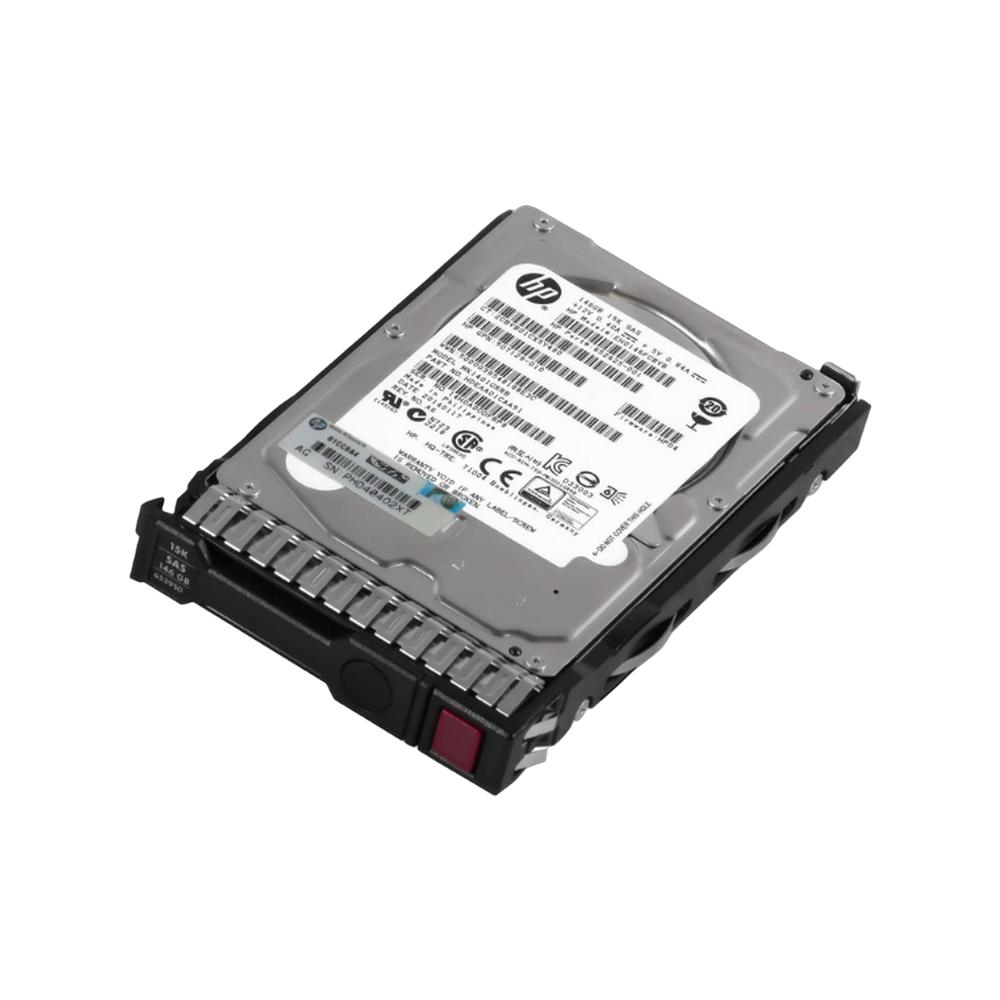

HP 146GB 15K RPM SAS SFF hard drive, fitted in an HPE hot-plug caddy, for 2.5-inch bays in HPE ProLiant servers.
This is a refurbished HP 146GB enterprise hard disk drive, sold as SKU HDD-HP-146G-15K-SAS-CADDY. It has a 2.5-inch small form factor, a 15,000 rpm spindle and a 6Gb/s SAS interface. It comes fitted in an HPE hot-plug caddy for the SFF drive bays of HPE ProLiant servers. Most buyers need it to replace a failed member of an existing RAID 1 or RAID 10 array behind a SAS RAID controller, or to keep an older system running until its planned retirement. The capacity is small by current standards. The reason to choose it is access time: a 15K spindle has lower rotational latency than 10K and 7.2K drives. That suits operating system mirrors, database transaction logs and small volumes with random I/O, where response time matters more than space. We hold these drives in Doha for IT teams in Qatar that need a matching array member quickly.
HDD-HP-146G-15K-SAS-CADDYSpecification
This is a 6Gb/s SAS drive. SAS is backward compatible, so a 12Gb/s controller or backplane negotiates the link down to 6Gb/s, and the drive's throughput is limited by its spindle and platters rather than the link. It cannot connect to SATA-only ports: a SAS controller or HBA and a SAS-capable backplane are required.
Installation
Before ordering, compare the caddy with a drive already in your server. HPE used one hot-plug carrier design for ProLiant G1 to G7 and introduced the SmartDrive carrier with Gen8, and the earlier and later carriers do not fit each other's bays. The fitted carrier suits SFF bays only; a 3.5-inch LFF bay needs a converter designed for that server, with the connector kept at the correct position for the backplane.
In a hot-plug bay on a controller that supports it, the drive can be inserted with the server running. Before pulling a failed drive from a live array, check in the controller's management tool that the array is redundant, so removing the drive does not take the volume offline. Once the new drive is in a degraded array, let the rebuild complete before making any further drive changes.
Match spindle speed, interface and capacity within an array. A 15K drive mixed with 10K drives gains nothing, because the array performs at the level of its slowest member. A replacement must be at least as large as the drive it replaces, which this drive is for a 146GB array.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comWhich ProLiant generations does this drive fit?
That depends on the caddy, not the drive. HPE used one hot-plug carrier design for ProLiant G1 to G7 and introduced the SmartDrive carrier with Gen8. The two do not fit each other's bays. Compare the caddy in the photographs with a drive already in your server, or check the drive spares listed for your server model, before ordering.
Will a 6Gb/s SAS drive work on a 12Gb/s SAS controller?
Yes. SAS is backward compatible, so a 12Gb/s controller or backplane negotiates the link down to 6Gb/s for this drive. The drive's own throughput is limited by its spindle and platters rather than the link, so in practice running it on a faster controller makes little difference to its performance.
Can this drive be used on a SATA-only controller or backplane?
No. A SAS drive needs a SAS controller and a SAS-capable backplane. The compatibility only runs one way: SATA drives can usually connect to SAS controllers, but SAS drives cannot connect to SATA-only ports. If your server has a basic SATA controller, you will need a SAS RAID controller or HBA to use this drive.
Can I mix this 15K drive with 10K drives in one RAID array?
Most RAID controllers will accept it. The array will then perform at the level of its slowest member, so the 15K drive gains nothing. Best practice is to match spindle speed, interface and capacity within an array. A replacement member must be at least as large as the drive it replaces, which this drive is for a 146GB array.
Why choose a 146GB 15K drive rather than a larger one?
Usually to keep an existing array consistent, or to replace a failed member with an identical specification. A 15K spindle also gives lower access times than 10K or 7.2K drives. That still suits small boot mirrors and log volumes. Where capacity matters more than latency, a larger 10K drive or an SSD is the better fit.
Is this drive hot-swappable?
Yes. It is a hot-plug drive in a hot-plug caddy, so it can be removed and inserted while the server is running. This assumes the bay is a hot-plug bay and the controller supports it. Before pulling a drive from a live array, confirm in the controller's management tool that the array is redundant, so removing the drive does not take the volume offline.
Will this 2.5-inch drive fit a 3.5-inch LFF bay?
Not in its current caddy. The fitted carrier is made for SFF bays only. A 3.5-inch bay needs an LFF carrier or a 2.5-to-3.5-inch converter designed for that server. Check that any converter keeps the drive's connector at the correct position for the backplane.
What does refurbished mean at ServerDove?
Off-lease or decommissioned enterprise hardware that we clean, test and reset in Doha. Every unit goes through POST, burn-in, memory and drive checks and a power-supply check, with firmware and BIOS returned to defaults and drives securely erased.
Can I ask about the exact unit before I buy?
Yes. Message us the SKU on WhatsApp and we will confirm the condition and configuration of the unit in stock, with photos if you want them.
How fast is delivery in Qatar?
Orders ship from Doha and arrive within one working day anywhere in Qatar. Delivery is free on orders over QAR 300.
Can I collect in person?
Yes, from Nuaija Office 7, Doha, usually within 24 hours of ordering. Choose pick-up at checkout and we will message you when it is ready.
What warranty is included?
A 6-month hardware warranty from the delivery date, covering the unit as supplied. If a part fails we repair or replace it. Full terms are on the warranty page.
What is your return policy?
If the unit arrives faulty or not as described, tell us and we will collect it and replace or refund it. Full terms are on the Refund Policy page.
Which payment methods do you accept?
Visa, Mastercard and American Express online. Bank transfer is available for company orders; contact us for details.
Is the price shown the final price?
Yes. The price shown is what you pay; nothing is added at checkout, and every order ships with an invoice in your name or your company's name.
