HPE 3.5" LFF HDD Tray Caddy Gen8 Gen9 Gen10
Inclusive of VAT · Warranty included
HPE
Product Specification
| Drive Form Factor | 3.5" LFF |
| Drive Support | SAS / SATA HDD |
| HPE Part Number | 651314-001 |
| Compatibility | HPE Gen8 Gen9 Gen10 Servers |
| Compatible Series | DL360 / DL380 / ML350 Series |
| Carrier Type | Hot Plug Drive Carrier |
Refurbished · Tested

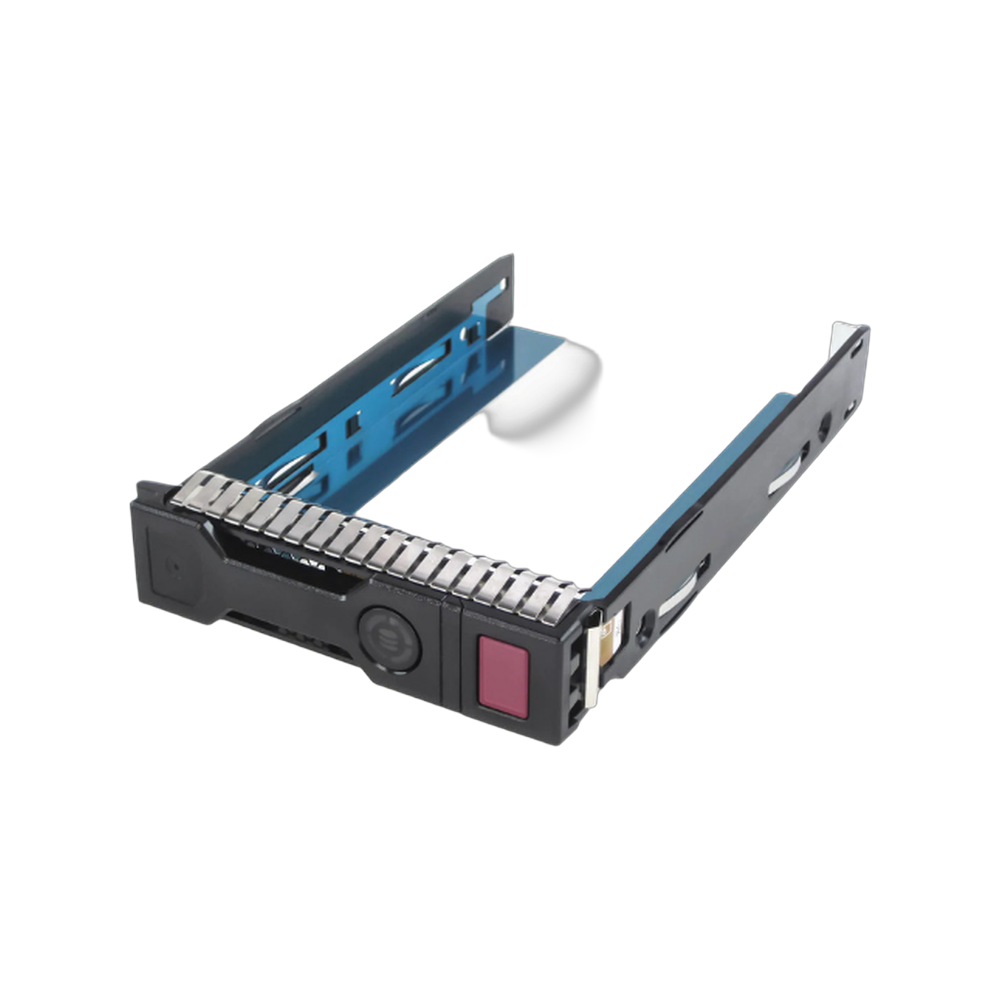

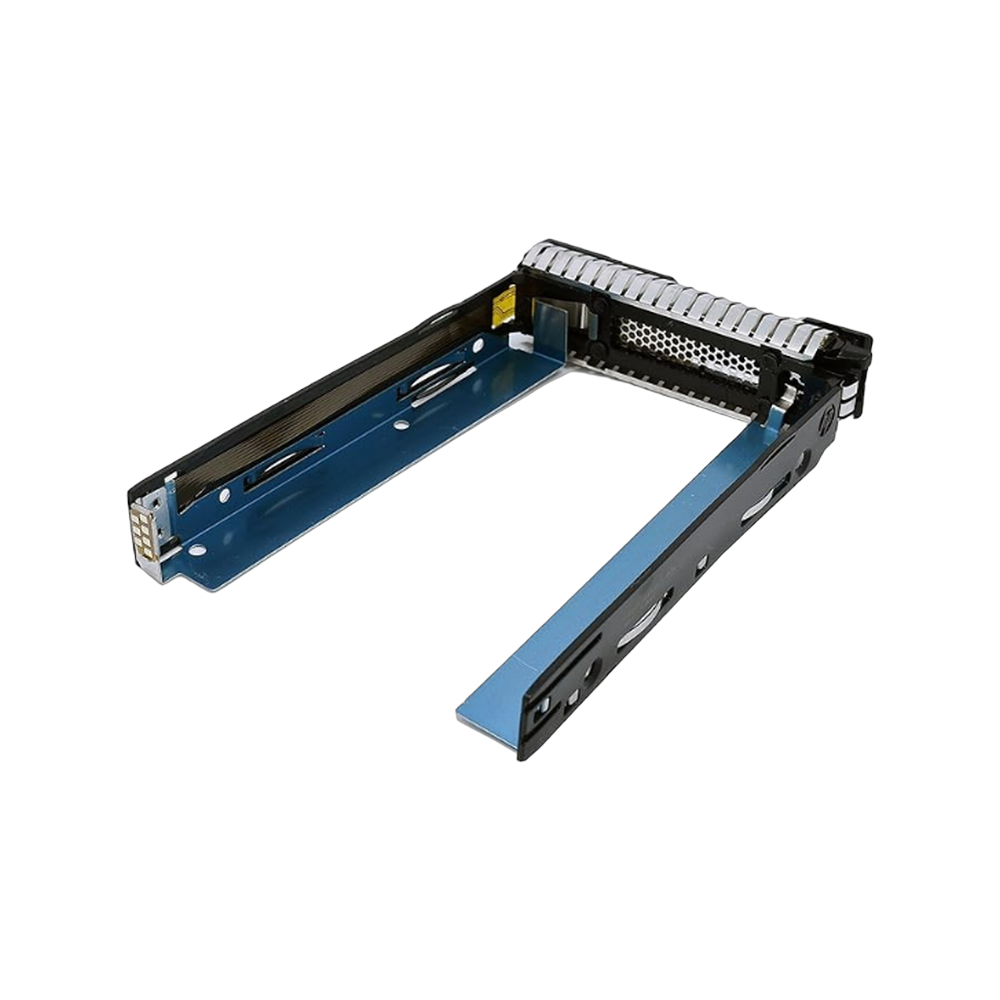

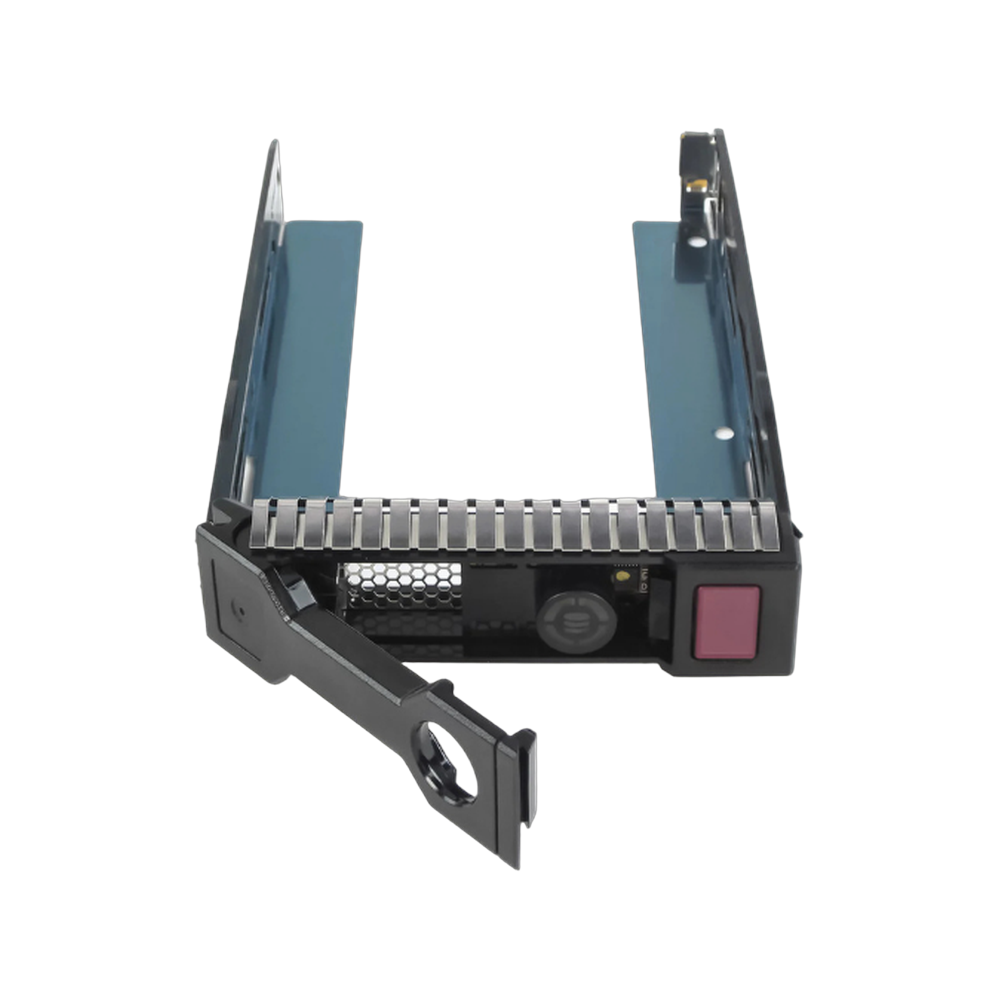

HPE 3.5 inch LFF hot-plug drive tray, part number 651314-001, the SmartDrive caddy for Gen8, Gen9 and Gen10 ProLiant DL360, DL380 and ML350 servers.
HPE part 651314-001 is the 3.5 inch large form factor SmartDrive carrier, the tray that holds a SAS or SATA hard drive in the hot-plug LFF bays of ProLiant Gen8, Gen9 and Gen10 servers, including the DL360, DL380 and ML350 series. HPE kept the same carrier design across three generations, so this one tray serves the whole range. It is refurbished and supplied empty. Buyers in Qatar need one for every bare LFF drive they fit to a ProLiant, and ServerDove keeps this refurbished carrier in Doha stock in quantity so drives and trays can be ordered together for storage server builds.
CADDY-HP-G8G9G10-LFFForm factor 3.5 inch LFFWill it fit my system?
| Server | Generation | Note |
|---|---|---|
| HPE ProLiant DL360 | Gen8, Gen9, Gen10 | LFF chassis variants |
| HPE ProLiant DL380 | Gen8, Gen9, Gen10 | LFF chassis variants |
| HPE ProLiant ML350 | Gen8, Gen9, Gen10 | LFF drive cages |
Specification
The SmartDrive carrier has a status ring on its face that shows the drive's activity, fault and rebuild state, driven by the backplane, and a release button with a "do not remove" indicator that lights when pulling the drive would break an array. Carriers from Gen7 and earlier ProLiant servers are a different design and do not fit these bays. A 2.5 inch drive can go in an LFF bay only with HPE's separate adapter carrier.
Installation
Fit the drive in the carrier with the four side screws, connector to the rear, remove the bay blank, and slide the carrier in with the handle open until it stops, then close the handle to seat the drive. The Smart Array controller detects it within seconds. Keep blanks in empty bays for airflow, and note that the carrier's screws are reused if a drive is later swapped.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comWhich HPE servers is this HDD tray caddy compatible with?
It is compatible with HPE Gen8, Gen9, and Gen10 servers, including DL360, DL380, and ML350 series systems.
What drive size does this tray support?
This is a 3.5" LFF drive tray designed for large form factor hard drives.
Does this caddy support both SAS and SATA drives?
Yes, it supports SAS and SATA HDDs in compatible HPE server bays.
Is this a hot plug drive carrier?
Yes, this product is listed as a hot plug drive carrier for supported HPE servers.
What is the HPE part number for this tray?
The HPE part number is 651314-001.
What does refurbished mean at ServerDove?
Off-lease or decommissioned enterprise hardware that we clean, test and reset in Doha. Every unit goes through POST, burn-in, memory and drive checks and a power-supply check, with firmware and BIOS returned to defaults and drives securely erased.
Can I ask about the exact unit before I buy?
Yes. Message us the SKU on WhatsApp and we will confirm the condition and configuration of the unit in stock, with photos if you want them.
How fast is delivery in Qatar?
Orders ship from Doha and arrive within one working day anywhere in Qatar. Delivery is free on orders over QAR 300.
Can I collect in person?
Yes, from Nuaija Office 7, Doha, usually within 24 hours of ordering. Choose pick-up at checkout and we will message you when it is ready.
What warranty is included?
A 6-month hardware warranty from the delivery date, covering the unit as supplied. If a part fails we repair or replace it. Full terms are on the warranty page.
What is your return policy?
If the unit arrives faulty or not as described, tell us and we will collect it and replace or refund it. Full terms are on the Refund Policy page.
Which payment methods do you accept?
Visa, Mastercard and American Express online. Bank transfer is available for company orders; contact us for details.
Do prices include VAT?
Yes, all prices shown include VAT, and every order ships with a tax invoice.
