HPE ProLiant DL360 Gen10 8SFF Rack Server Barebone
Price includes warranty
HPE
Product Specification
| Form Factor | 1U Rack Server Platform |
| Management | Integrated iLO5 Management |
| Drive Bays | 8x 2.5" SFF Drive Bays |
| Processor Support | Supports Dual Intel Xeon Scalable CPUs |
| CPU Socket | LGA3647 |
| Memory Support | DDR4 ECC Registered Memory Support |
Refurbished · Tested
Refurbished HPE ProLiant DL360 Gen10 8SFF barebone, SKU SRV-HP-DL360-G10-8SFF-BARE, a 1U dual-socket rack server for custom builds.
This is the 8SFF chassis of the HPE ProLiant DL360 Gen10, HPE's 1U dual-socket rack server from the Gen10 generation, built around Intel Xeon Scalable processors on two LGA3647 sockets. It is supplied as a refurbished barebone with no CPU, no RAM and no drives, so you choose the processors, memory and storage for the workload. The front takes 8 x 2.5 inch SFF drives (SAS, SATA or SSD), memory is DDR4 ECC Registered, expansion is PCIe 3.0, and remote management is through integrated iLO5. Typical buyers are system builders and IT teams in Qatar who want a dense 1U host for virtualisation, databases or application servers, or a matching chassis for an existing DL360 Gen10 estate where processors and memory are already on hand. Integrators in Doha also use it as a spare platform that can be built up to the exact specification of servers already in the rack.
SRV-HP-DL360-G10-8SFF-BAREForm factor 1U rackChassis and platform
The DL360 Gen10 was released in 2017 and accepts both the first and second generation of Intel Xeon Scalable processors. Each processor drives six memory channels and twelve DIMM slots, so the second socket must be populated to use all 24 slots and the full PCIe slot count.
What you need to add
The chassis arrives without processors, memory or drives. Plan the build as a complete list before ordering parts, because processor generation decides memory speed and the drive type decides the controller.
- One or two Intel Xeon Scalable processors (first or second generation) for LGA3647, with a heatsink for each populated socket. Two processors must be the same model.
- DDR4 ECC Registered memory, RDIMM or LRDIMM. Do not mix the two types in one server.
- 2.5 inch SFF drives (SAS, SATA or SSD), each mounted in an HPE SFF drive carrier.
- An HPE Smart Array controller if you plan to run SAS drives or hardware RAID.
Populate memory evenly across the six channels of each processor for full bandwidth; six or twelve DIMMs per processor is the usual layout. A single processor build works, but half the DIMM slots and part of the PCIe expansion stay unavailable. Update the system ROM and iLO5 firmware before installing an operating system, particularly when fitting second generation processors.
Compatibility
Components shared across the ProLiant Gen10 family fit this chassis, which makes it straightforward to build from parts already used in other Gen10 servers. Drive carriers from Gen8 and Gen9 SFF servers are a different design and should not be assumed to fit. Memory must be DDR4 Registered or Load Reduced with ECC; unbuffered desktop DIMMs will not work. Power supplies must be HPE Flexible Slot units, and a redundant pair must be the same wattage.
| Component | What fits |
|---|---|
| Processors | Intel Xeon Scalable, first or second generation, LGA3647 |
| Memory | DDR4 ECC RDIMM or LRDIMM, HPE SmartMemory |
| Drives | 2.5 inch SAS, SATA or SSD |
| Drive carriers | HPE Gen10 SFF drive carriers |
| Power supplies | HPE Flexible Slot, 500 W, 800 W or 1600 W |
| Expansion cards | PCIe 3.0, low profile or full height by riser |
Part numbers and identification
Condition & testing
- Full hardware diagnostics and burn-in
- Memory, storage and power supplies verified
- Management controller reset, BIOS returned to defaults
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this server

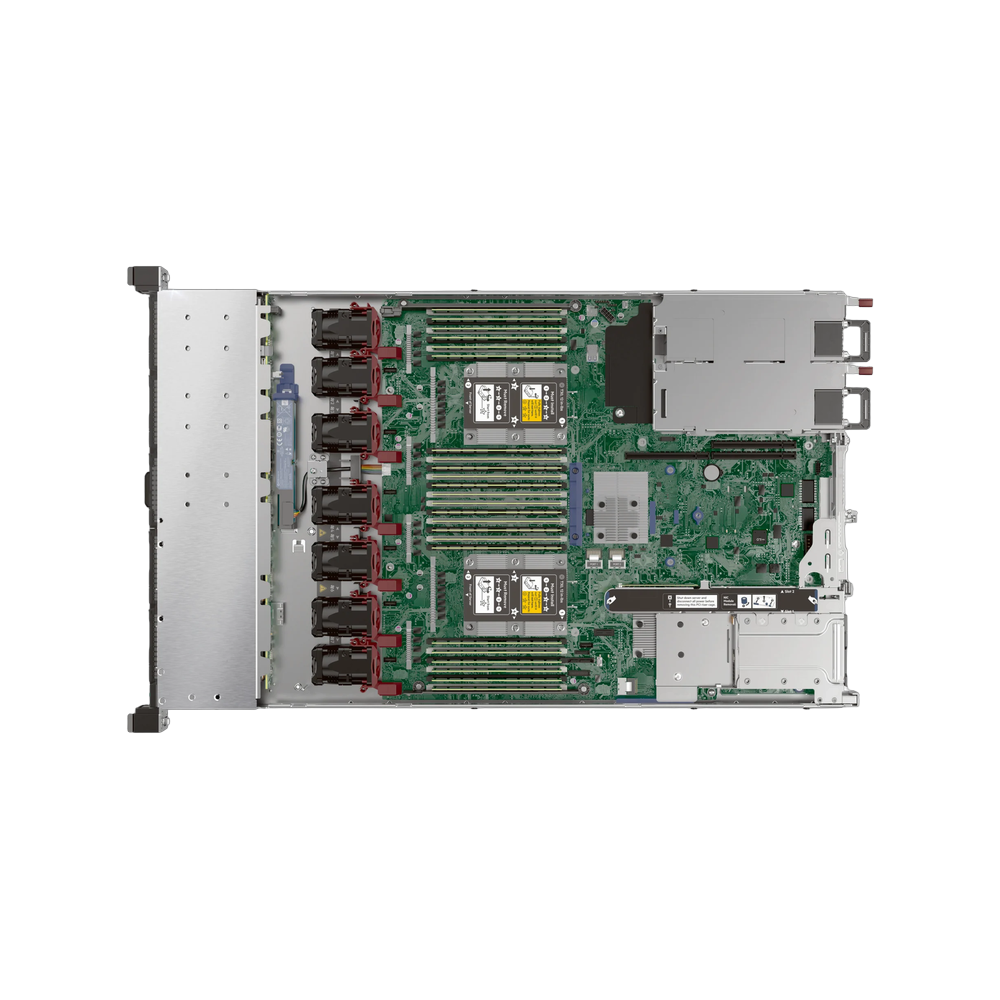

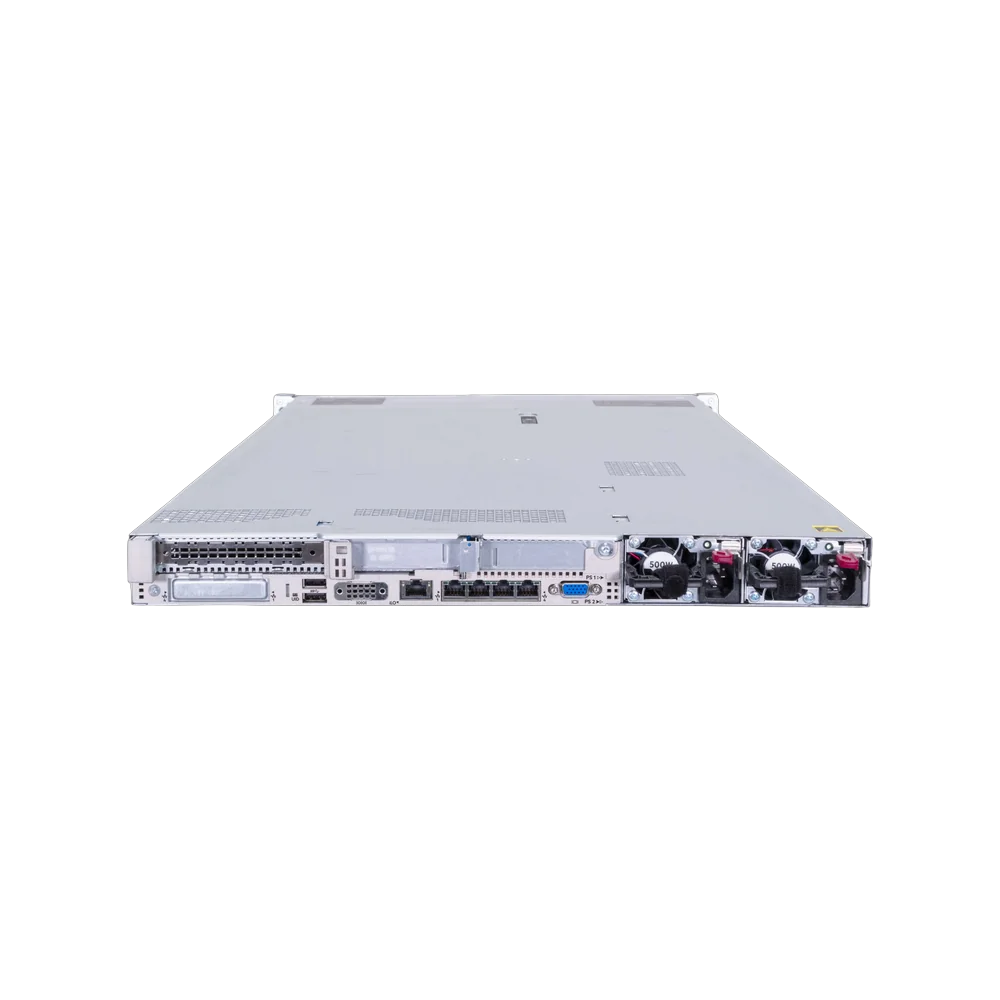

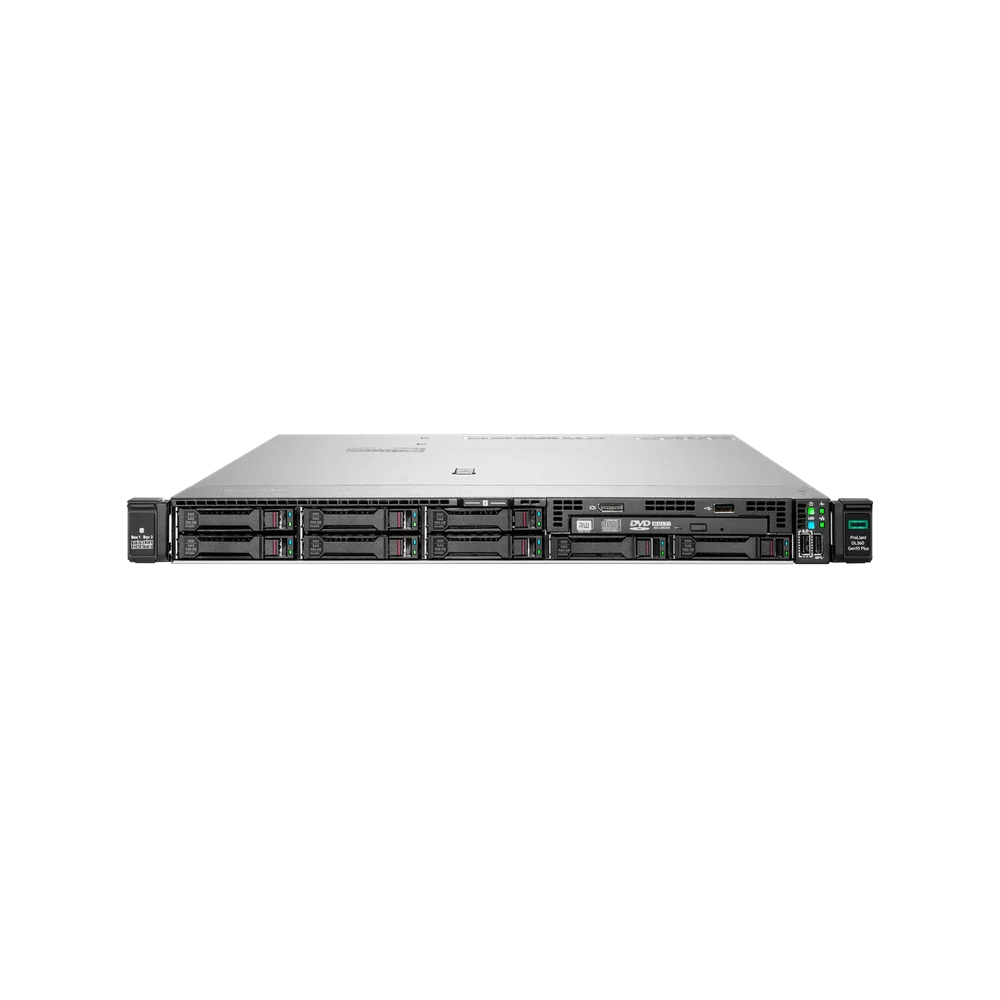

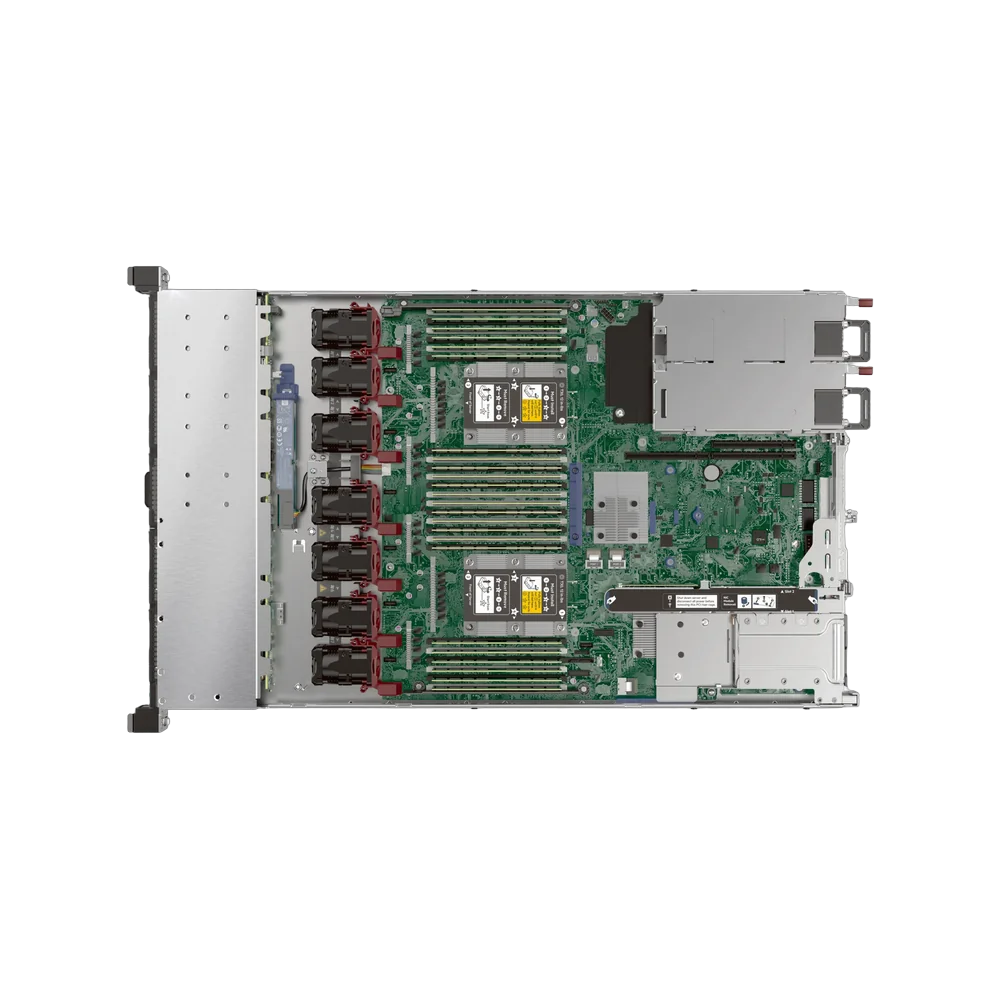

Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
If you need rails, a bezel or additional drives, ask on WhatsApp before ordering and we will quote them with the unit.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comDoes this HPE DL360 Gen10 include processors or memory?
No. This is a barebone server and is listed with no CPU, no RAM, and no drive included.
What type of drives does this server support?
It supports SAS, SATA, and SSD drives in 8x 2.5" SFF bays.
How many processors can be installed?
This platform supports dual Intel Xeon Scalable CPUs.
What memory type is supported?
It supports DDR4 ECC Registered memory.
Does this server include remote management?
Yes. It includes integrated iLO5 management for remote server administration.
What does refurbished mean at ServerDove?
Off-lease or decommissioned enterprise hardware that we clean, test and reset in Doha. Every unit goes through POST, burn-in, memory and drive checks and a power-supply check, with firmware and BIOS returned to defaults and drives securely erased.
Can I ask about the exact unit before I buy?
Yes. Message us the SKU on WhatsApp and we will confirm the condition and configuration of the unit in stock, with photos if you want them.
How fast is delivery in Qatar?
Orders ship from Doha and arrive within one working day anywhere in Qatar. Delivery is free on orders over QAR 300.
Can I collect in person?
Yes, from Nuaija Office 7, Doha, usually within 24 hours of ordering. Choose pick-up at checkout and we will message you when it is ready.
What warranty is included?
A 6-month hardware warranty from the delivery date, covering the unit as supplied. If a part fails we repair or replace it. Full terms are on the warranty page.
What is your return policy?
If the unit arrives faulty or not as described, tell us and we will collect it and replace or refund it. Full terms are on the Refund Policy page.
Which payment methods do you accept?
Visa, Mastercard and American Express online. Bank transfer is available for company orders; contact us for details.
Is the price shown the final price?
Yes. The price shown is what you pay; nothing is added at checkout, and every order ships with an invoice in your name or your company's name.
