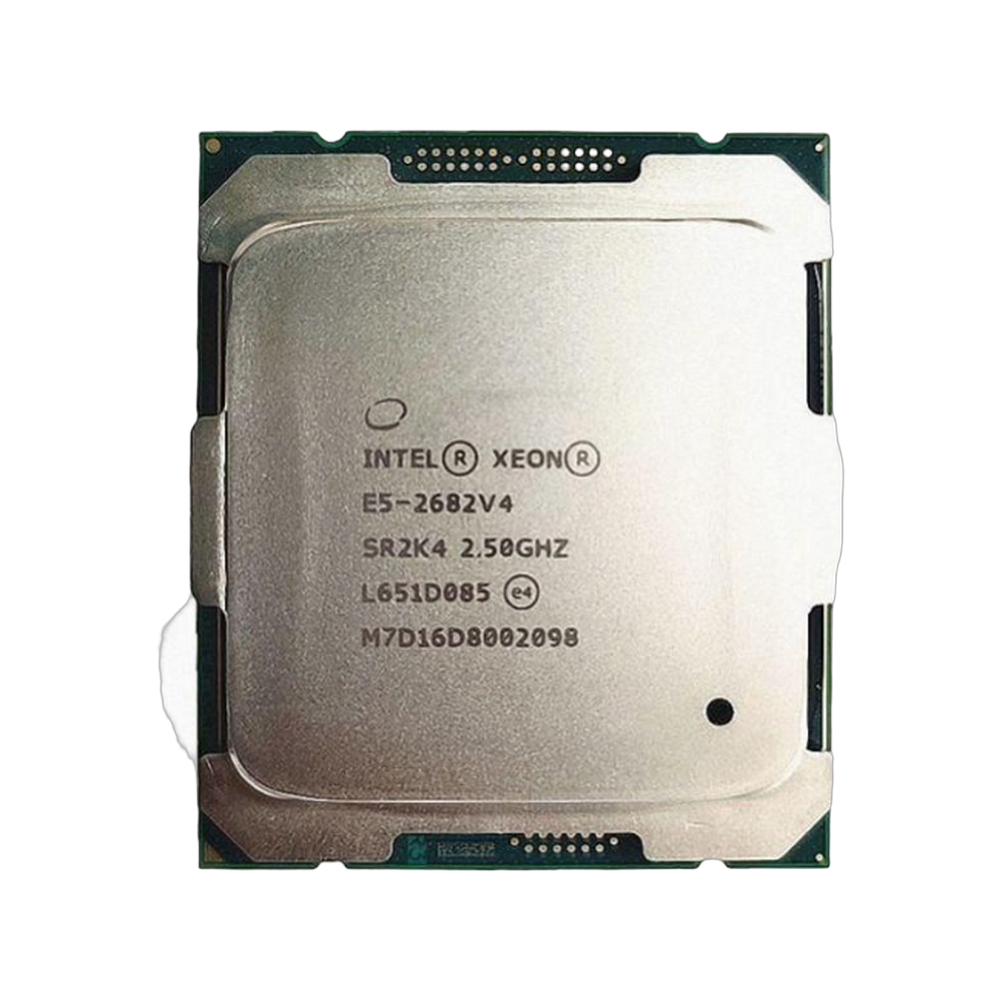

Intel Xeon E5-2682 v4 16C 2.50GHz LGA2011-3 CPU
Price includes warranty
INTEL
Product Specification
| Family | Xeon E5-2600 v4 |
| Generation | Broadwell-EP |
| Socket | LGA2011-3 |
| Cores | 16 |
| Threads | 32 |
| Base Clock | 2.50GHz |
Refurbished · Tested
Intel Xeon E5-2682 v4 refurbished 16-core 2.50 GHz LGA2011-3 processor for dual-socket Dell PowerEdge 13th generation and HPE ProLiant Gen9 servers.
The Xeon E5-2682 v4 is a 16-core, 32-thread Broadwell-EP processor from Intel's Xeon E5-2600 v4 family, built on a 14nm process for the LGA2011-3 socket. It runs at a 2.50 GHz base clock with 40 MB of shared Smart Cache inside a 120 W thermal envelope, and each processor drives four channels of DDR4 at up to 2400 MT/s. The platform is the C610/C612 generation used in 13th generation Dell PowerEdge and HPE ProLiant Gen9 servers, including the PowerEdge R630 and R730. IT teams in Doha and across Qatar buy this refurbished CPU to extend the life of existing hosts: as a replacement for a failed processor, to populate an empty second socket, or to move a v3 server to v4 without changing the motherboard. A matched pair gives 32 cores and 64 threads, which suits virtualisation, container and application hosts where thread count matters more than single-thread clock speed.
CPU-INTEL-E5-2682V4Will it fit my system?
Both of these 13th generation PowerEdge servers use the LGA2011-3 socket and accept Xeon E5-2600 v4 processors, including this model.
| Server | Generation | Note |
|---|---|---|
| PowerEdge R630 | 13th generation | 1U dual-socket; 120 W is within the supported processor range |
| PowerEdge R730 | 13th generation | 2U dual-socket |
The processor also fits HPE ProLiant Gen9 servers built on the LGA2011-3 platform. A v3 and a v4 processor cannot be mixed in the same server, so a v3 host is upgraded by replacing both CPUs with matching v4 models.
Specification
The E5-2682 v4 belongs to the Broadwell-EP generation released in 2016, the successor to the E5-2600 v3 range on the same socket and chipsets. It trades single-thread clock for core count at a moderate 120 W. Actual memory speed depends on the server, the number of DIMMs per channel and the rated speed of the modules, so heavily populated channels may run below 2400 MT/s.
Installation
Processors are not hot-pluggable: shut the server down, disconnect power and observe anti-static precautions. Update the system BIOS to a release that supports E5-2600 v4 processors before fitting this CPU, using the existing processors, because a server shipped with v3 processors may not POST with a v4 fitted. Seat the CPU using the server's socket retention mechanism, apply fresh thermal compound and fit the heatsink type the server manufacturer specifies for the chassis. When adding a second processor, match the model to the first, populate the memory slots served by the second socket, and check the power supply rating against the full configuration including drives and add-in cards. Existing DDR4 ECC memory can usually be reused after a v3 to v4 upgrade.
Part numbers and identification
Condition & testing
- Tested in a compatible system
- Verified against the listed part number and specification
- Fully working; minor cosmetic marks are possible on refurbished units.
- 6-month warranty on every unit we sell, with installation and support across Qatar.
What ships with this part
Images are for illustration. The unit supplied is the one described in the specification and may differ cosmetically.
Our team in Doha answers specification and compatibility questions during working hours.
Ask on WhatsApp sales@serverdove.comDoes the Xeon E5-2682 v4 work in a Dell PowerEdge R630 or R730?
These 13th generation PowerEdge servers use the LGA2011-3 socket and accept Xeon E5-2600 v4 processors, including this model. Servers shipped with v3 processors may need a BIOS update before a v4 CPU will POST, so update the BIOS first using the existing processors. In a dual-socket configuration both processors should be the same model.
Can I upgrade from an E5-2600 v3 processor to the E5-2682 v4?
Yes, on most platforms. The v3 and v4 families share the LGA2011-3 socket and C610/C612 chipsets, so the motherboard stays the same. The BIOS must support Broadwell-EP processors, and you cannot mix a v3 and a v4 CPU in the same server. Existing DDR4 memory can usually be reused, though it will run at the speed the memory and platform allow.
What memory does the E5-2682 v4 support?
It supports DDR4 ECC memory at up to 2400 MT/s across four channels per processor. In servers this means registered (RDIMM) or load-reduced (LRDIMM) modules. The actual running speed depends on the server, the number of DIMMs per channel and the rated speed of the modules installed, so heavily populated channels may run lower than 2400 MT/s.
How many cores does a dual E5-2682 v4 server have?
Each processor has 16 cores and 32 threads with Hyper-Threading, so a two-socket server has 32 cores and 64 threads in total. Each processor also brings its own memory channels and PCIe lanes, which doubles the memory capacity and expansion available compared with a single-processor configuration.
Is a 120W TDP processor suitable for a 1U server?
The E5-2682 v4 has a 120W TDP, which sits within the processor support of common 1U dual-socket servers such as the Dell PowerEdge R630. Fit the heatsink type specified by the server manufacturer for the chassis and check the power supply rating against the full configuration, including drives and add-in cards.
What workloads is the E5-2682 v4 best suited to?
With 16 cores at a 2.50GHz base clock and 40MB of cache, it is aimed at throughput rather than single-thread speed. Typical uses are VMware or Hyper-V virtualisation hosts, container platforms, web and application servers, CI build nodes and general consolidation of older servers onto fewer hosts.
