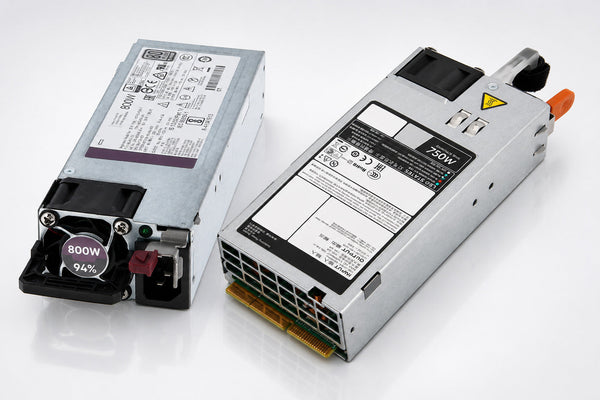

Start from the configuration: number and wattage of processors, number of drives, memory and any graphics or accelerator cards. With redundant supplies, one supply must carry the full load alone. Vendors publish power calculators for their servers, and the team can help size it. When replacing a failed supply, match the wattage already installed.

Yes. Most servers with two supply bays run on a single supply, provided it can carry the load. You lose redundancy, so a supply failure or a tripped circuit takes the server down, and the server usually reports a redundancy warning. For anything that must stay up, fit both supplies and feed them from separate power circuits.

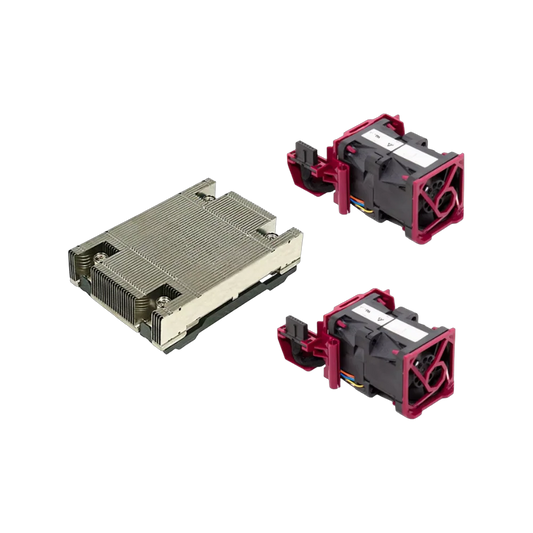

Yes. Every processor needs its own heatsink, and many dual-socket servers ship with a blank in place of the second one. Some chassis also need an extra fan, and higher-wattage processors may need a larger heatsink than the standard part. Send the server model and the processor you plan to fit and the team will list what is needed.

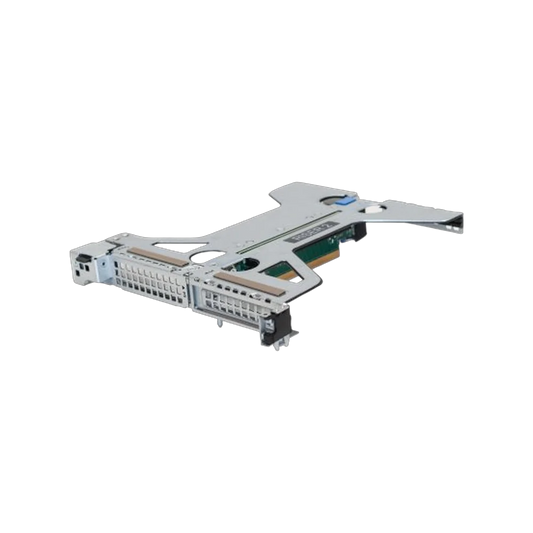

A riser carries PCIe slots up from the motherboard so expansion cards sit flat inside a rack chassis. It sets the number of slots, their electrical width and whether they take low-profile or full-height cards. Changing the riser can add slots or make room for a larger card, but risers are specific to each chassis, so confirm the model first.

Rail kits fit standard 19-inch racks, but they are made for particular server models, not for every server. Before ordering, check the rack depth between front and rear posts and the hole type, square, round or threaded, since some rails only mount in certain types. Send the server model and rack details and the team will confirm.
